Grand Cherokee 2WD L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

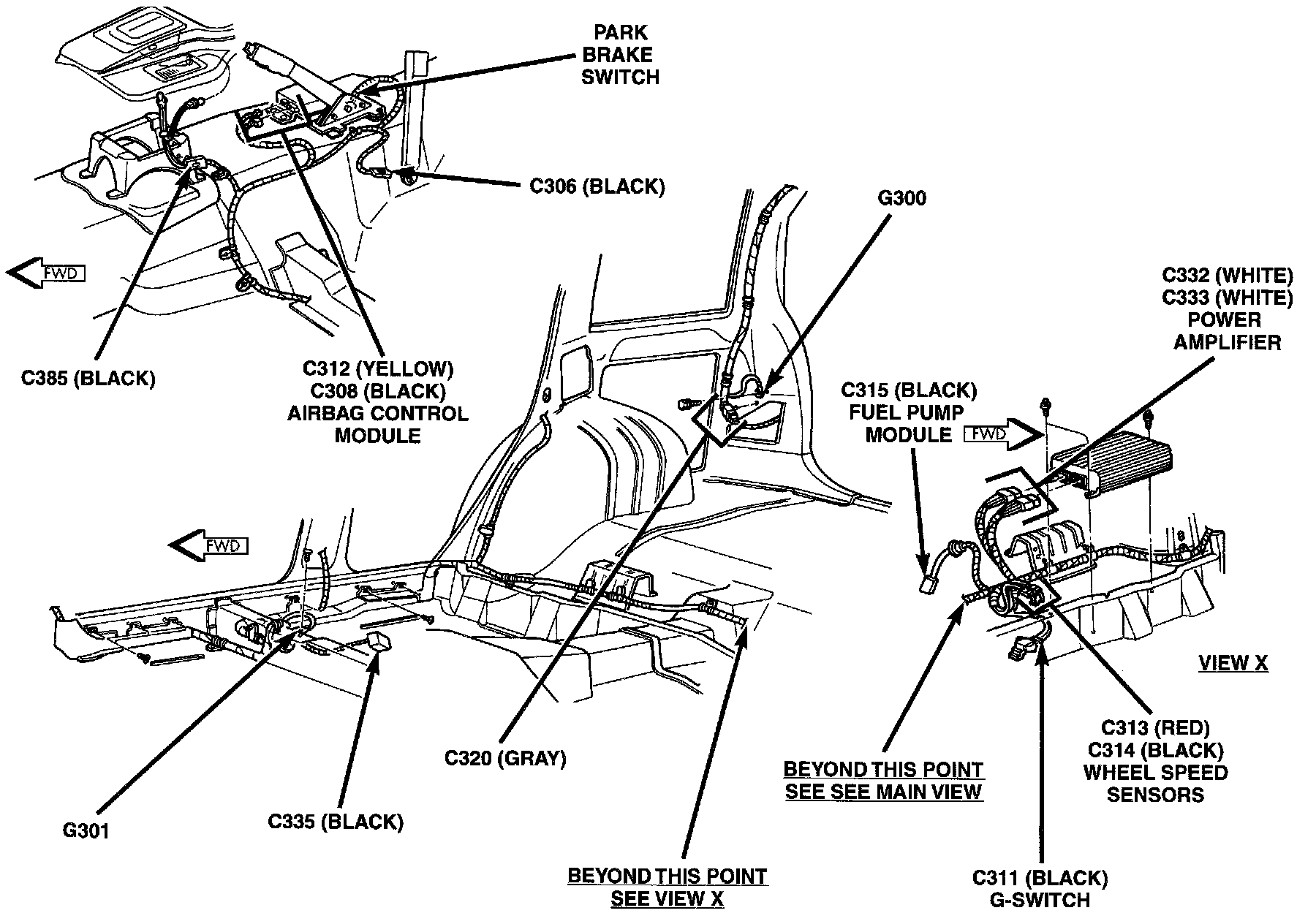

Figure 16
Figure 16
Body Connectors - Right Side:
