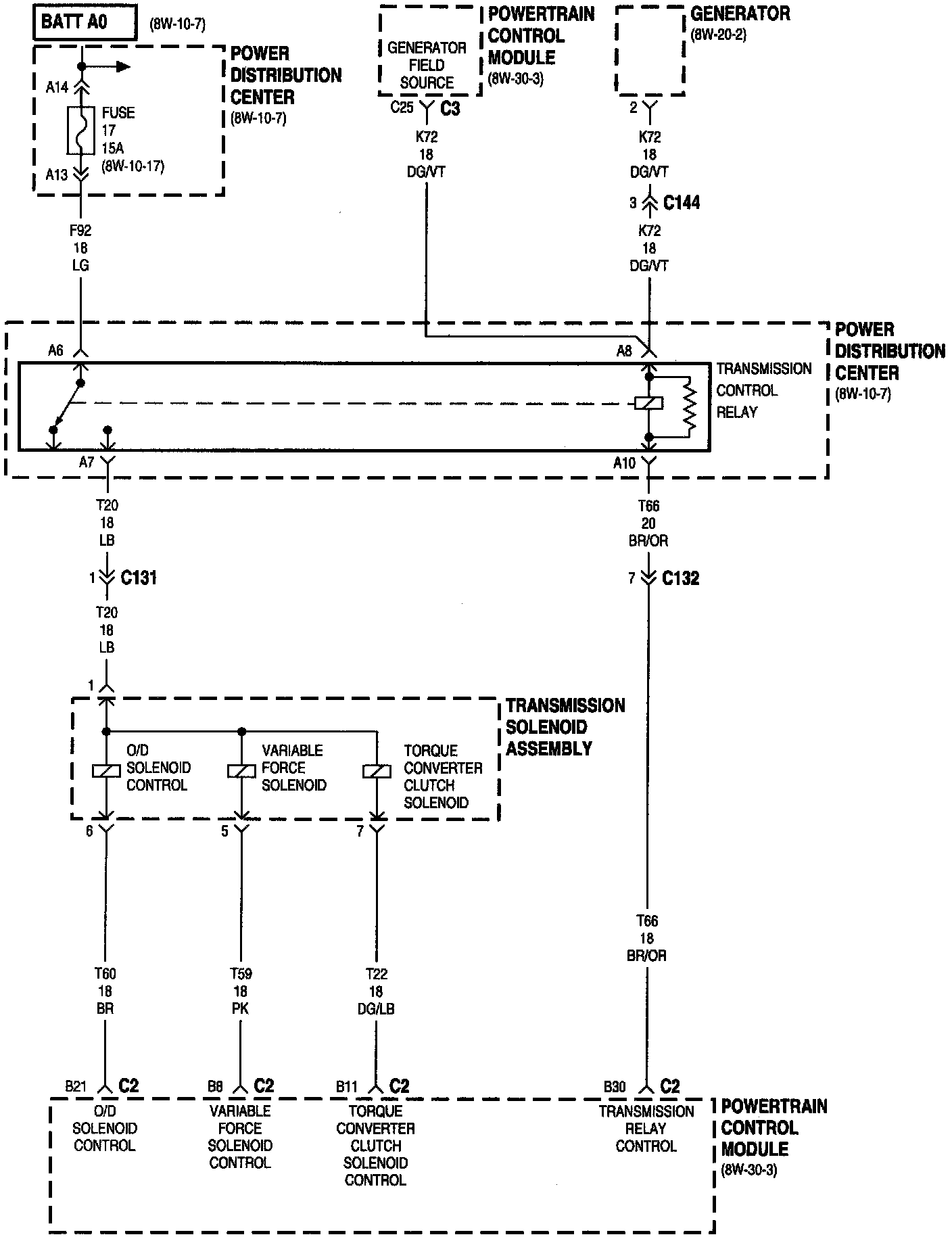

Transmission Control System (Part 1 Of 4):




Fuse 17 (PDC)
Generator
O/D Solenoid Control
Power Distribution Center
Powertrain Control Module
Torque Converter Clutch Solenoid
Transmission Control Relay
Transmission Solenoid Assembly
Variable Force Solenoid

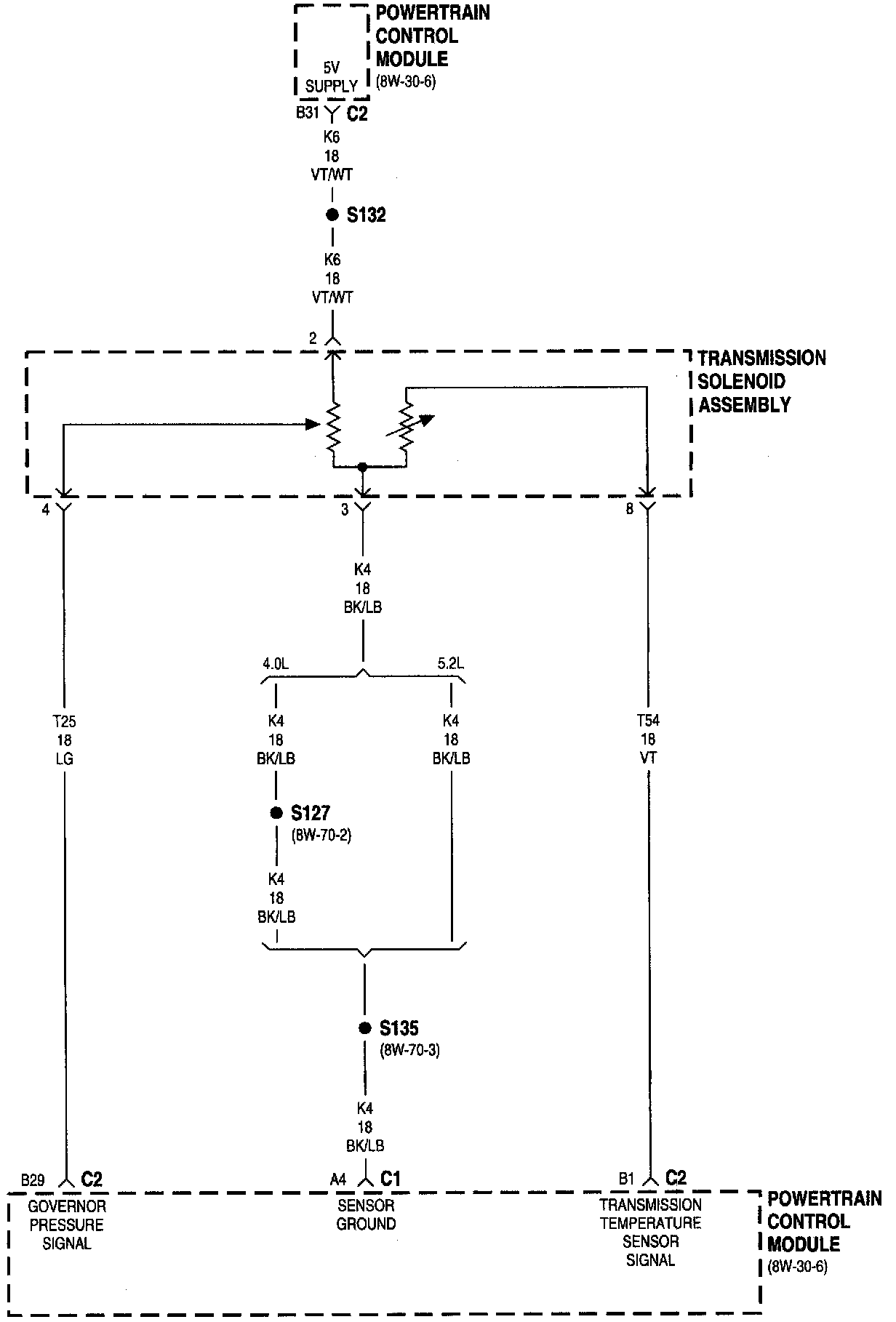

Transmission Control System (Part 2 Of 4):




Powertrain Control Module
S127
S132
S135
Transmission Solenoid Assembly

Transmission Control System (Part 3 Of 4):




Output Shaft Speed Sensor
Powertrain Control Module
S127
S131
S132
S133
S135
S136
Throttle Position Sensor
Vehicle Speed Sensor

Transmission Control System (Part 4 Of 4):




Fuse 5 (JB)
Fuse 12 (JB)
G304
Junction Block
Overdrive Pressure Switch
Powertrain Control Module
S202
S206
S215
S216
S218
Shift Interlock
Stop Lamp Switch


NOTE: To view Diagrams referred to in these diagrams SEE Complete Body and Chassis Diagrams. Diagrams By Group Number
