Air Temperature Sensor ( Ambient / Intake ): Service and Repair

INTAKE MANIFOLD AIR TEMPERATURE SENSOR

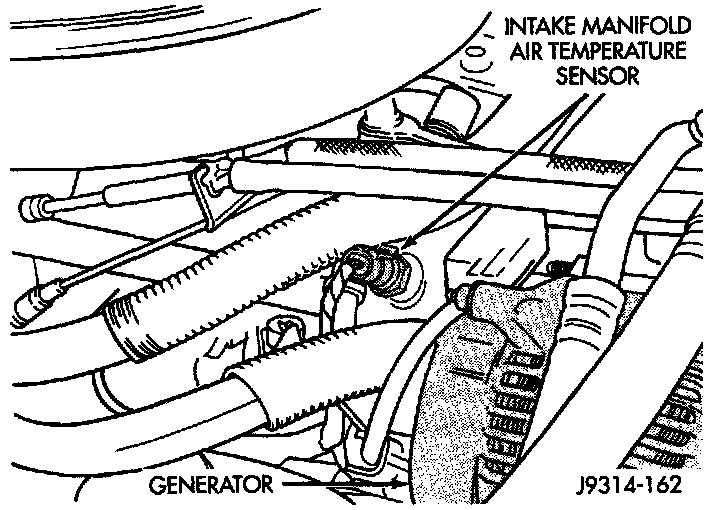

Fig. 89 IAT Sensor:

The intake manifold air temperature sensor is located in the front/side of the intake manifold (Fig. 89).

REMOVAL

1. Disconnect electrical connector at sensor (Fig. 89).
2. Remove sensor from intake manifold.

INSTALLATION

1. Install sensor to intake manifold. Tighten to 28 Nm (20 ft. lbs.) torque.
2. Install electrical connector.
