With Manual Transmission

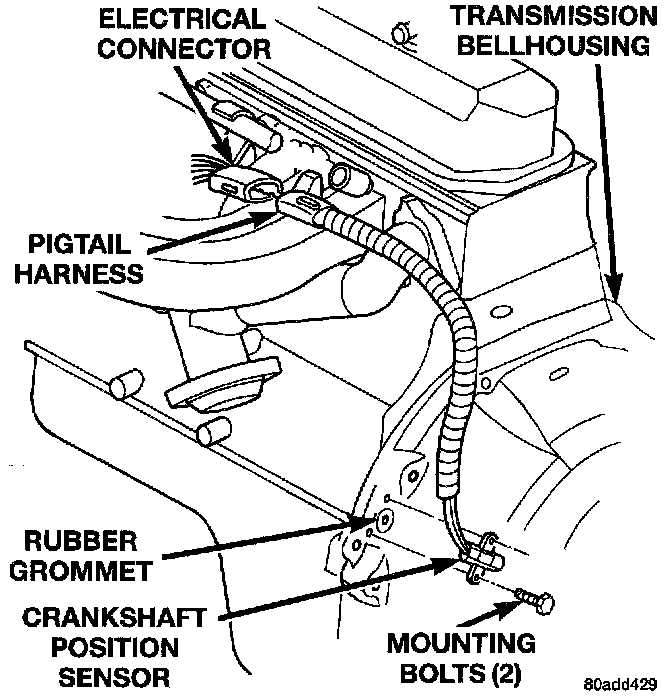

Crankshaft Position Sensor-Typical:




The crankshaft position sensor is mounted to the transmission bellhousing at the left/rear side of the engine block.

On all engines with manual transmission, the sensor is attached with two bolts.

REMOVAL
1. Near rear of intake manifold, disconnect pigtail harness (electrical connector) from main electrical harness.
2. Depending upon application, remove either sensor mounting bolt(s) or nuts.
3. Remove sensor from engine.

INSTALLATION
1. Install sensor flush against opening in transmission housing.
2. Install and tighten two sensor mounting bolts to 19 N.m (14 ft. lbs.) torque. The two sensor mounting bolts are specially machined to correctly space unit to flywheel. Do not attempt to install any other bolts.
