How to Read Wiring Diagrams

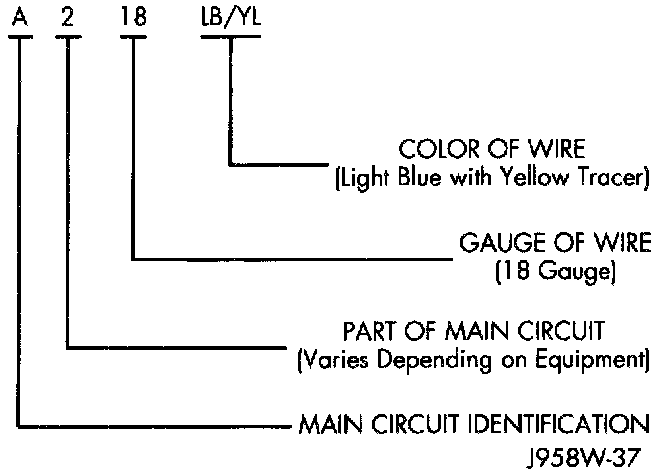

Wire Code Identification:

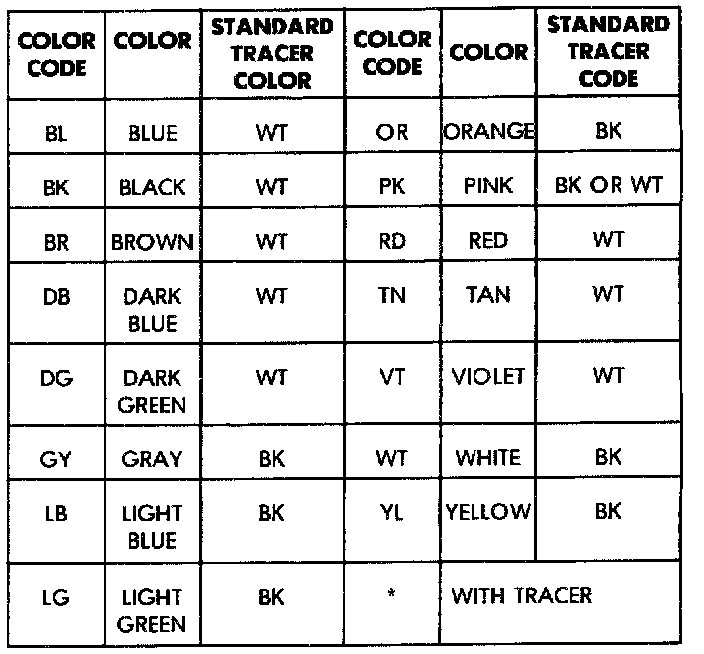

Wire Color Code Chart:

Each wire shown in the diagrams contains a code which identifies the main circuit, part of the main circuit, gauge of wire, and color. The color is shown as a two letter code which can be identified by referring to the Wire Color Code Chart.
