Throttle Position Sensor: Locations

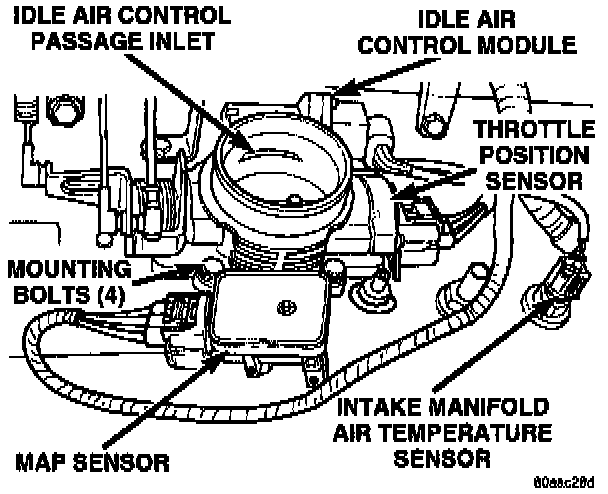

Idle Air Control Passage Inlet, Idle Air Control Module, Mounting Bolts, Map Sensor, Intake Manifold Air TEMP Sensor:



Sensors For 2.5L And 4.0L.:
