Plug Gap Adjustment

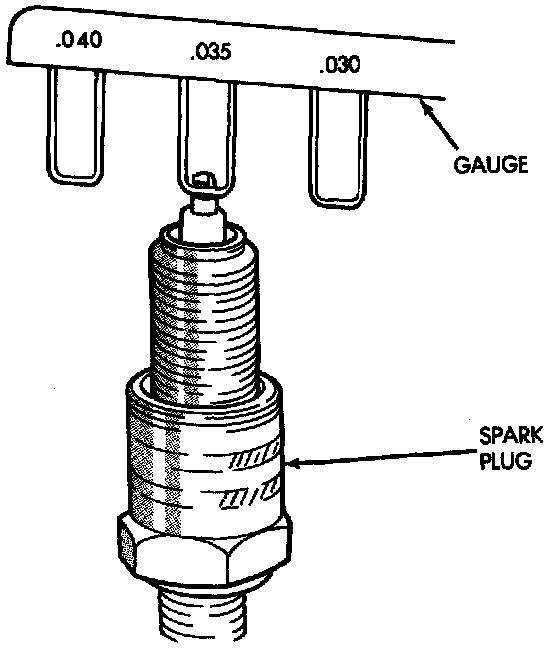

Setting Spark Plug Gap-Typical:

Check the spark plug gap with a gap gauge tool. If the gap is not correct, adjust it by bending the ground electrode. Never attempt to adjust the gap by bending the center electrode.

Spark Plug Gap = 0.89 mm (0.035 in).
