Air Bag Systems
>>
Air Bag Control Module
Air Bag Control Module

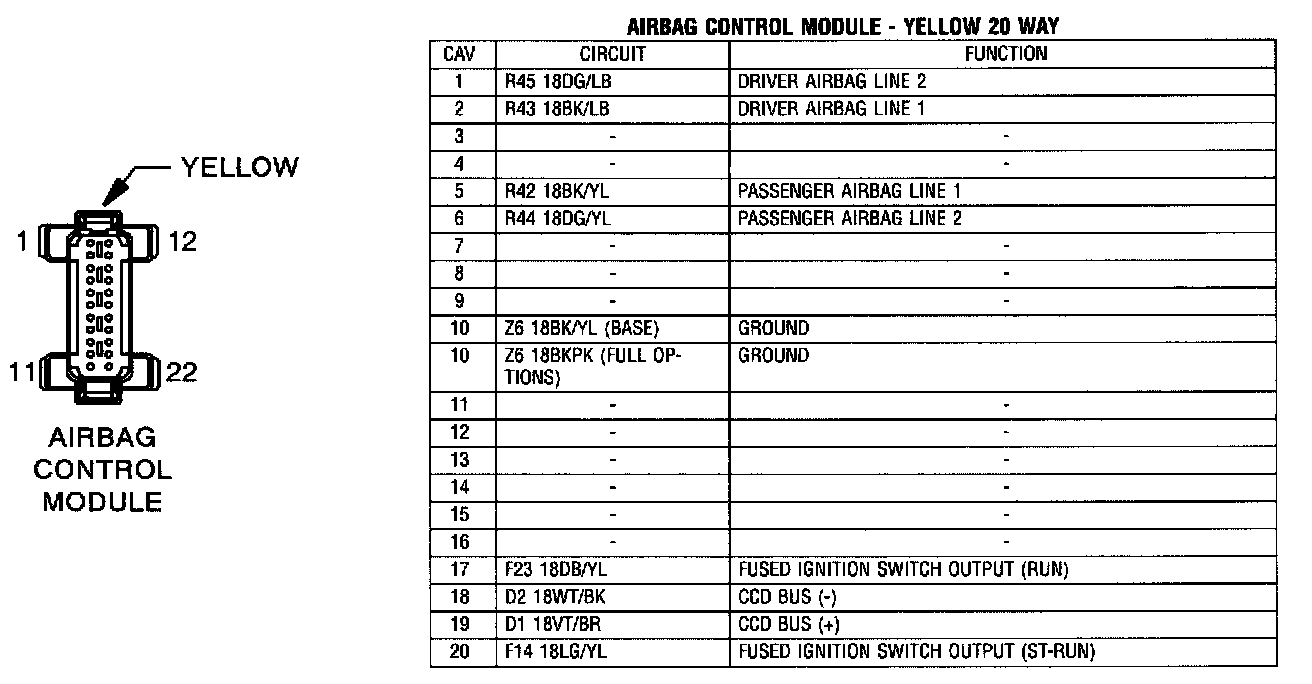

Airbag Control Module Connector:
Airbag Control Module
Connector
Airbag Control Module:
Airbag Control Module
- Yellow 20 Way
