Door Switch




Driver Door Jamb Switch - Black 3 Way

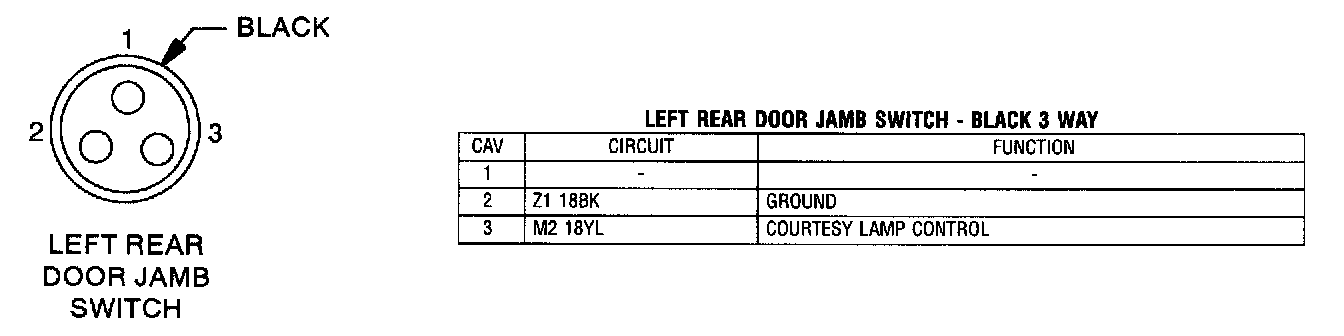

Left Rear Door Jamb Switch - Black 3 Way

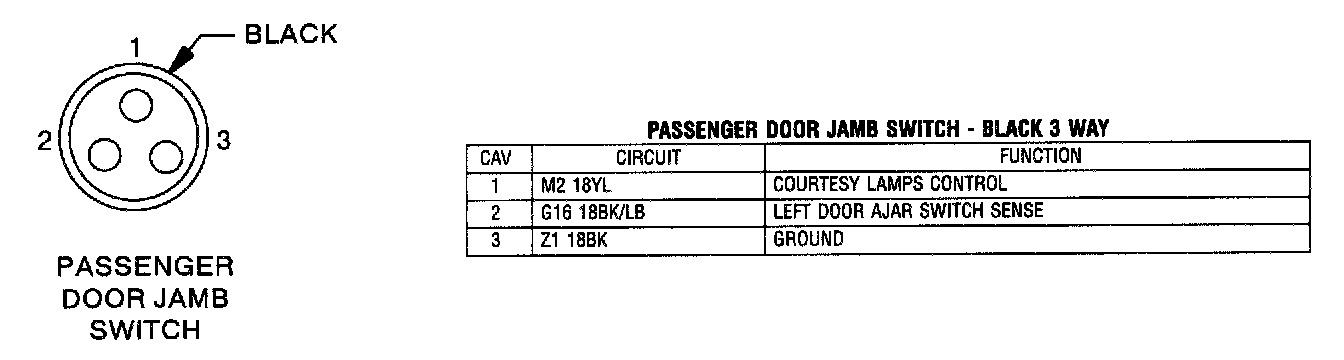

Passenger Door Jamb Switch - Black 3 Way

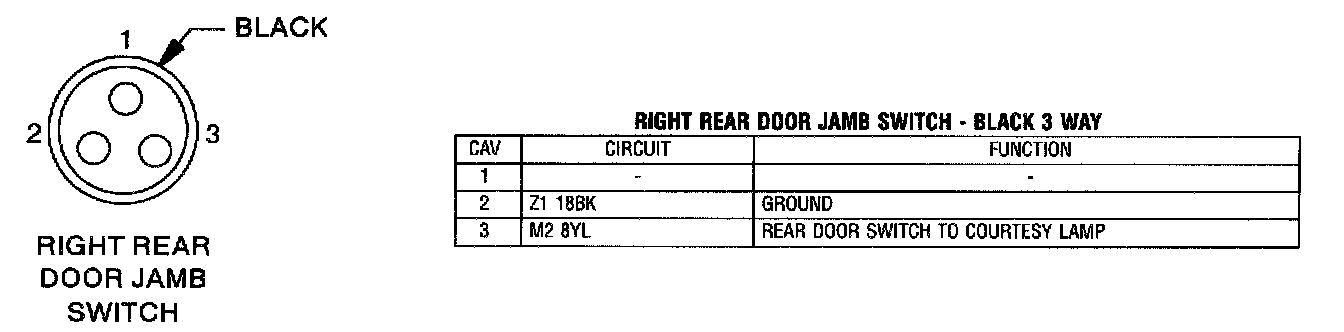

Right Rear Door Jamb Switch - Black 3 Way
