Headlamp Switch
Headlamp Switch

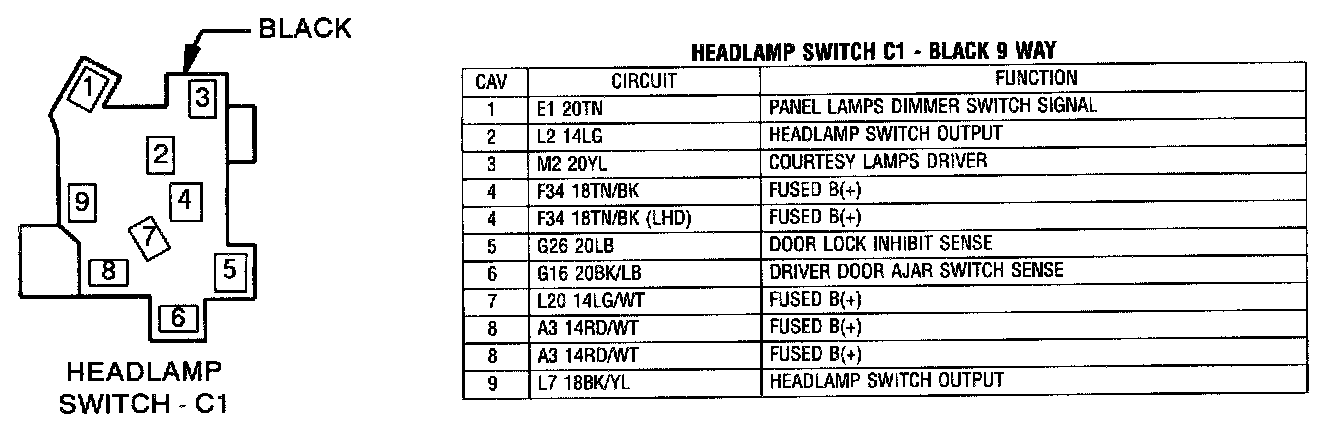

Headlamp Switch C1:
Headlamp Switch
C1- Black 9 Way

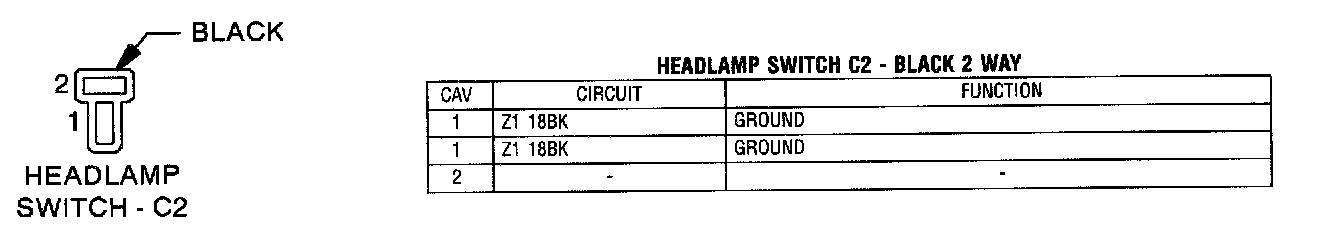

Headlamp Switch C2:
Headlamp Switch
C2- Black 2 Way
