Ignition Switch
Ignition Switch

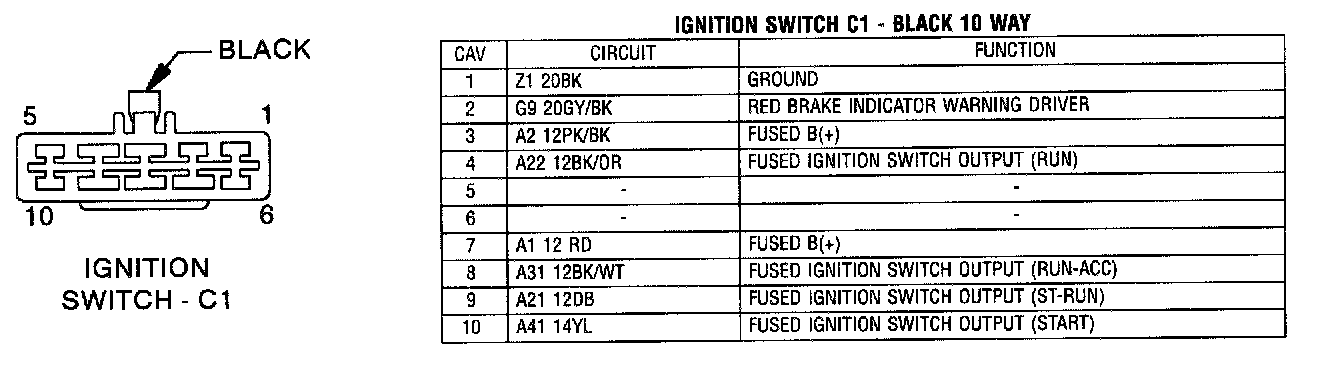

Ignition Switch C1:
Ignition Switch
C1 - Black 10 Way

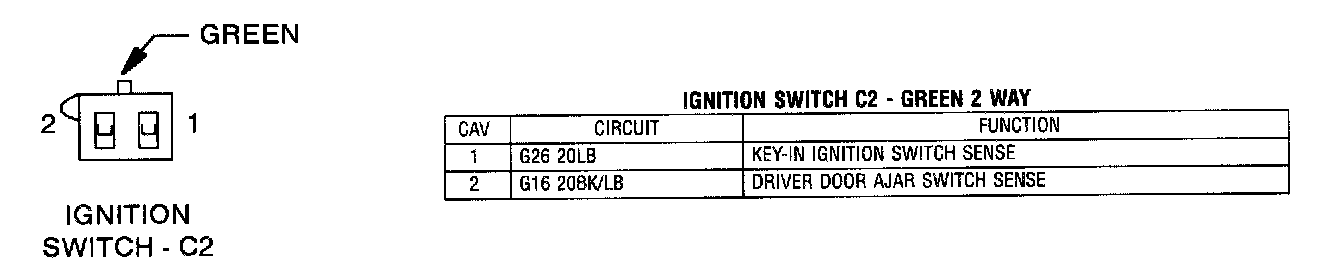

Ignition Switch C2:
Ignition Switch
C2 - Green 2 Way
