Instrument Cluster / Carrier
Instrument Cluster / Carrier

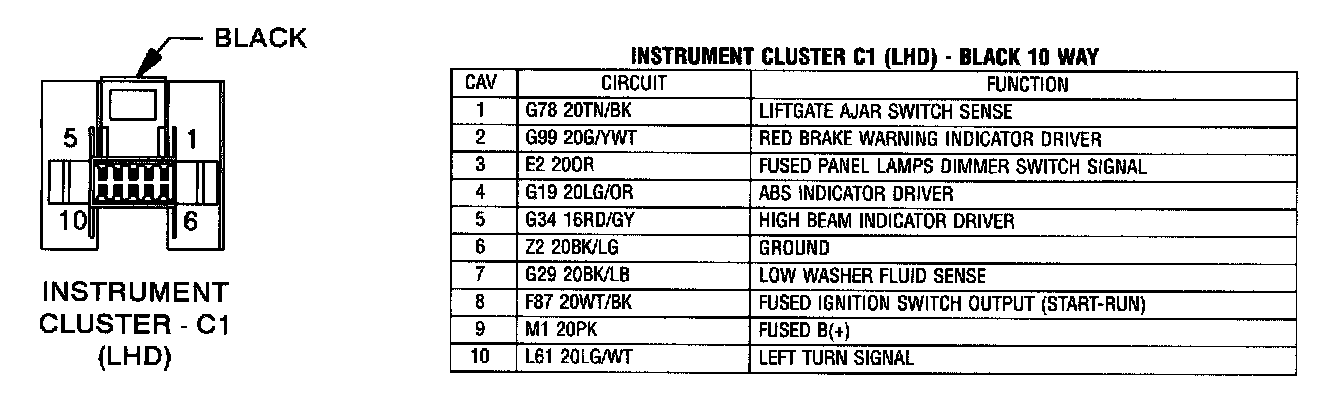

Instrument Cluster C1:
Instrument Cluster
C1 (LHD) - Black 10 Way

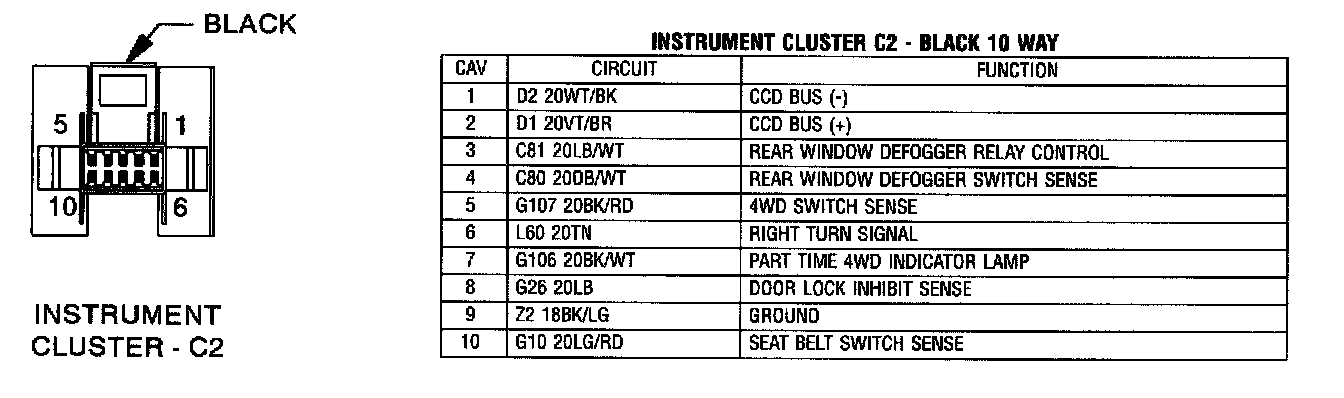

Instrument Cluster C2:
Instrument Cluster
C2 - Black 10 Way
