Electrical Accessory Panel

Power Distribution Center

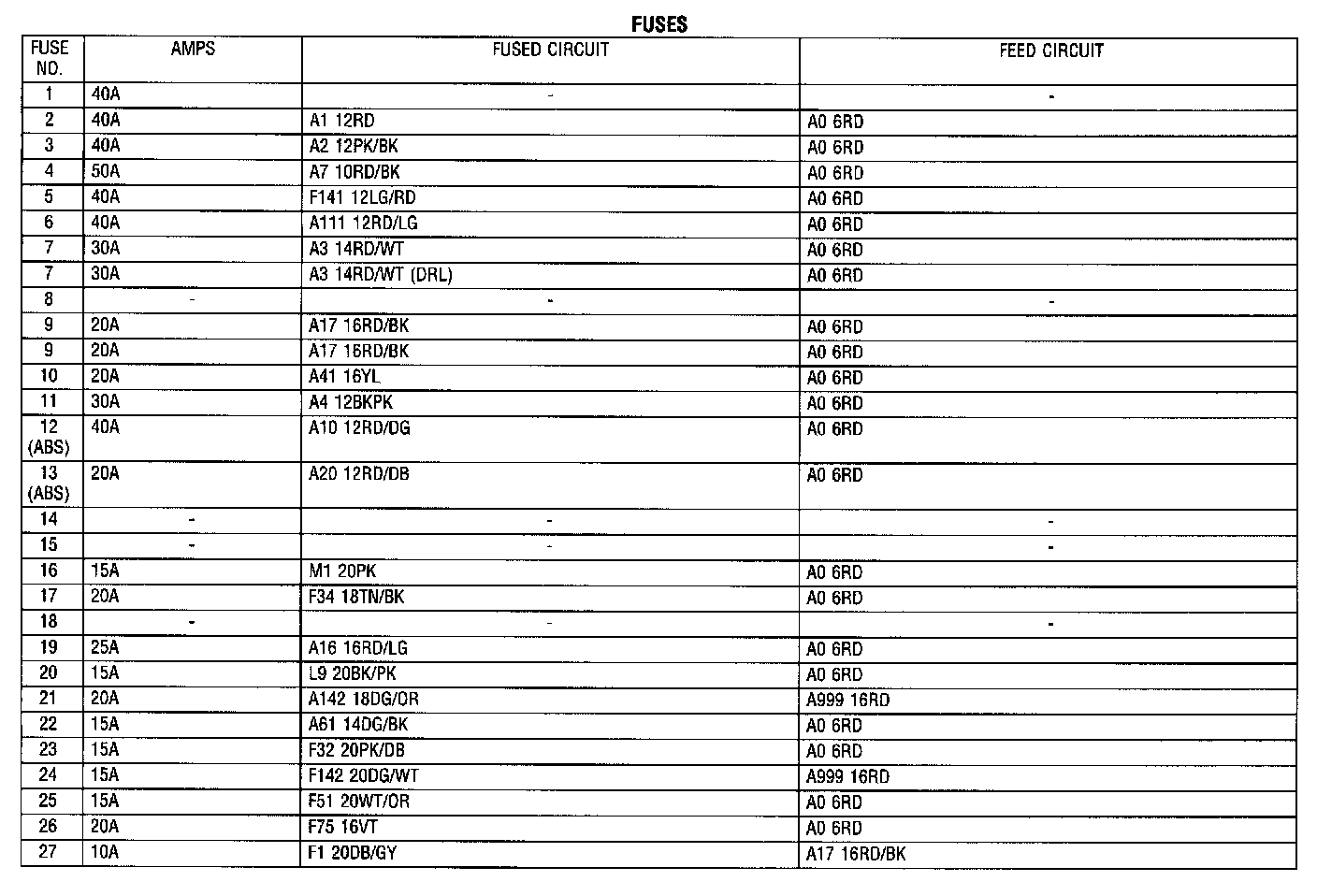

Fuses

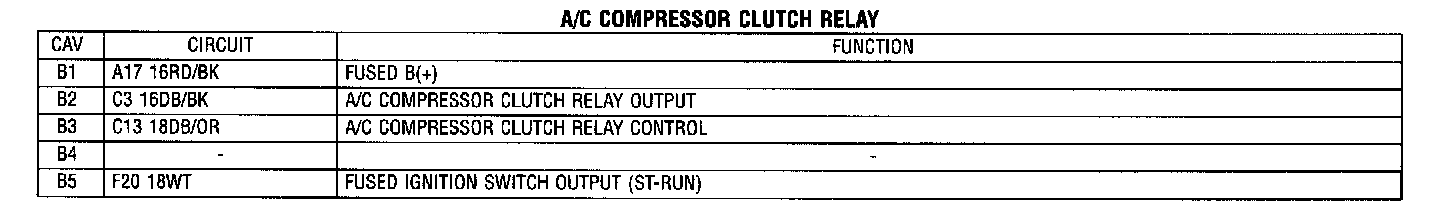

A/C Compressor Clutch Relay

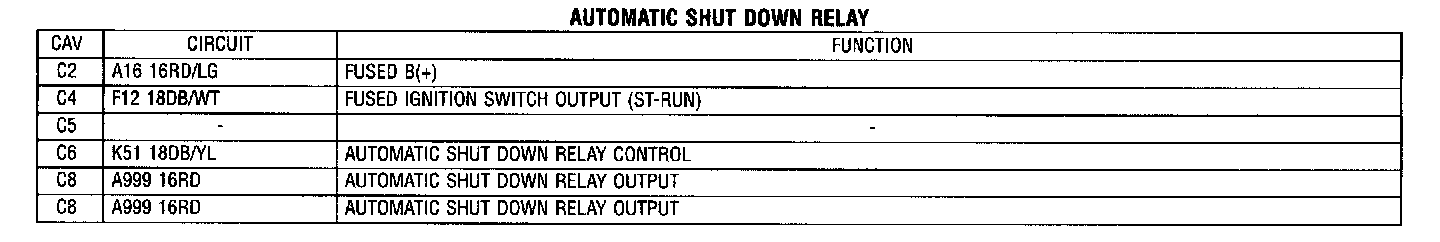

Automatic Shut Down Relay

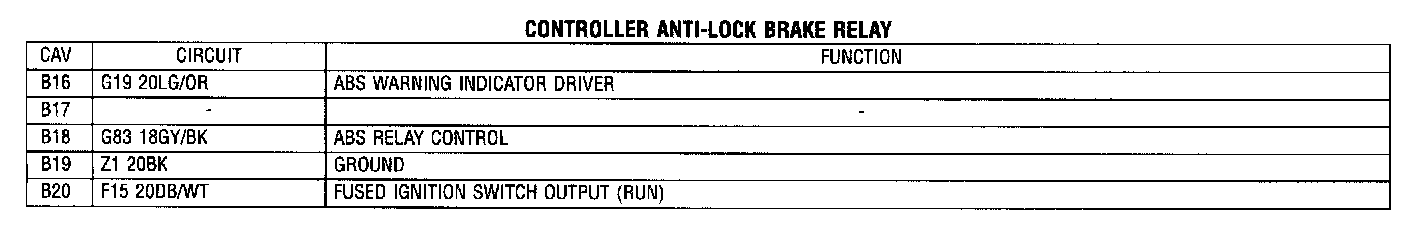

Controller Anti-lock Brake Relay




Engine Starter Motor Relay

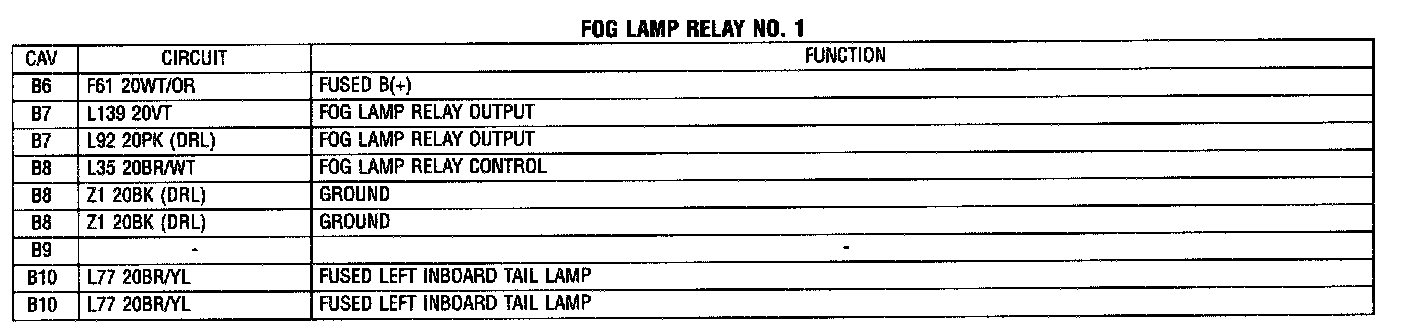

Fog Lamp Relay No.1

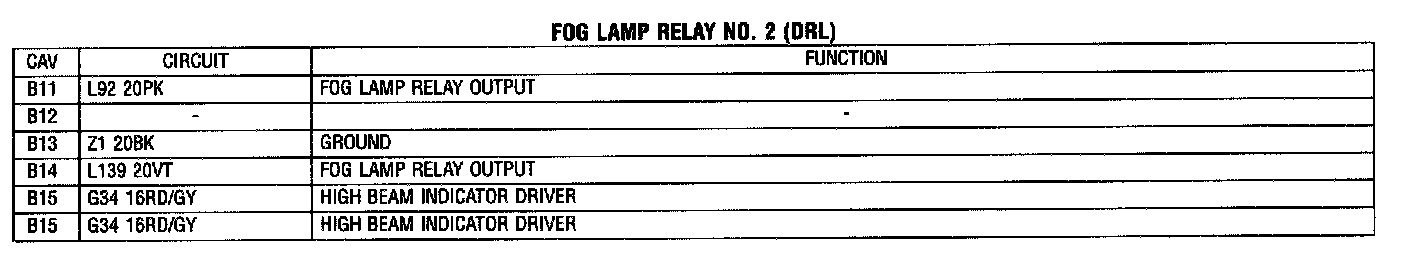

Fog Lamp Relay No.2 (DRL)

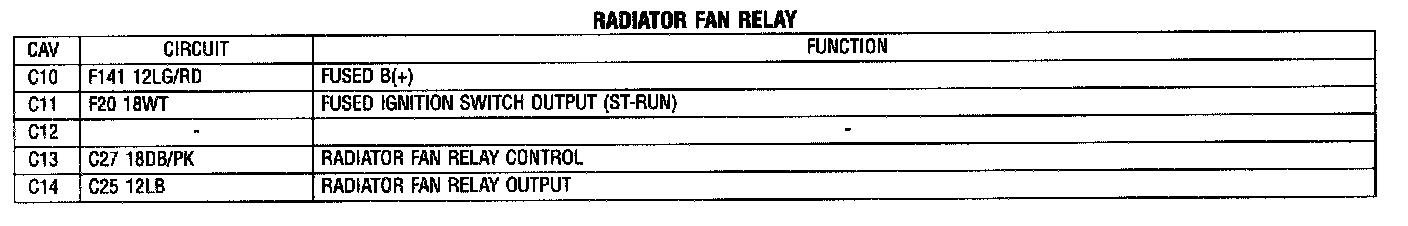

Radiator Fan Relay

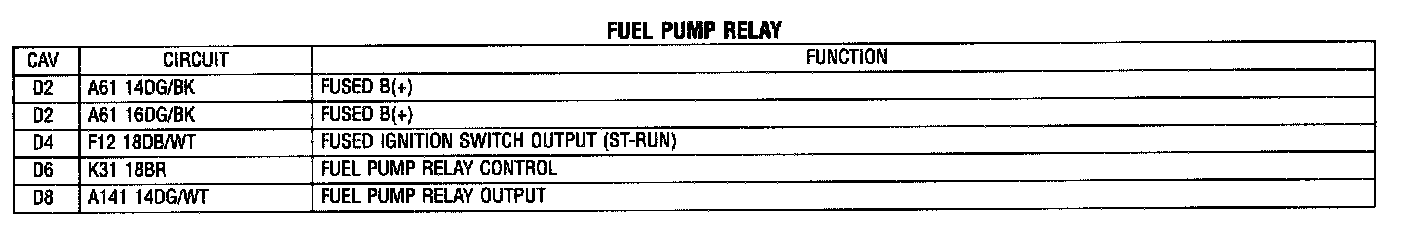

Fuel Pump Relay
