Jeep
>>
1999
>>
Cherokee 2WD L4-2.5L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Fuse
Fuse
Junction Block:
Junction Block

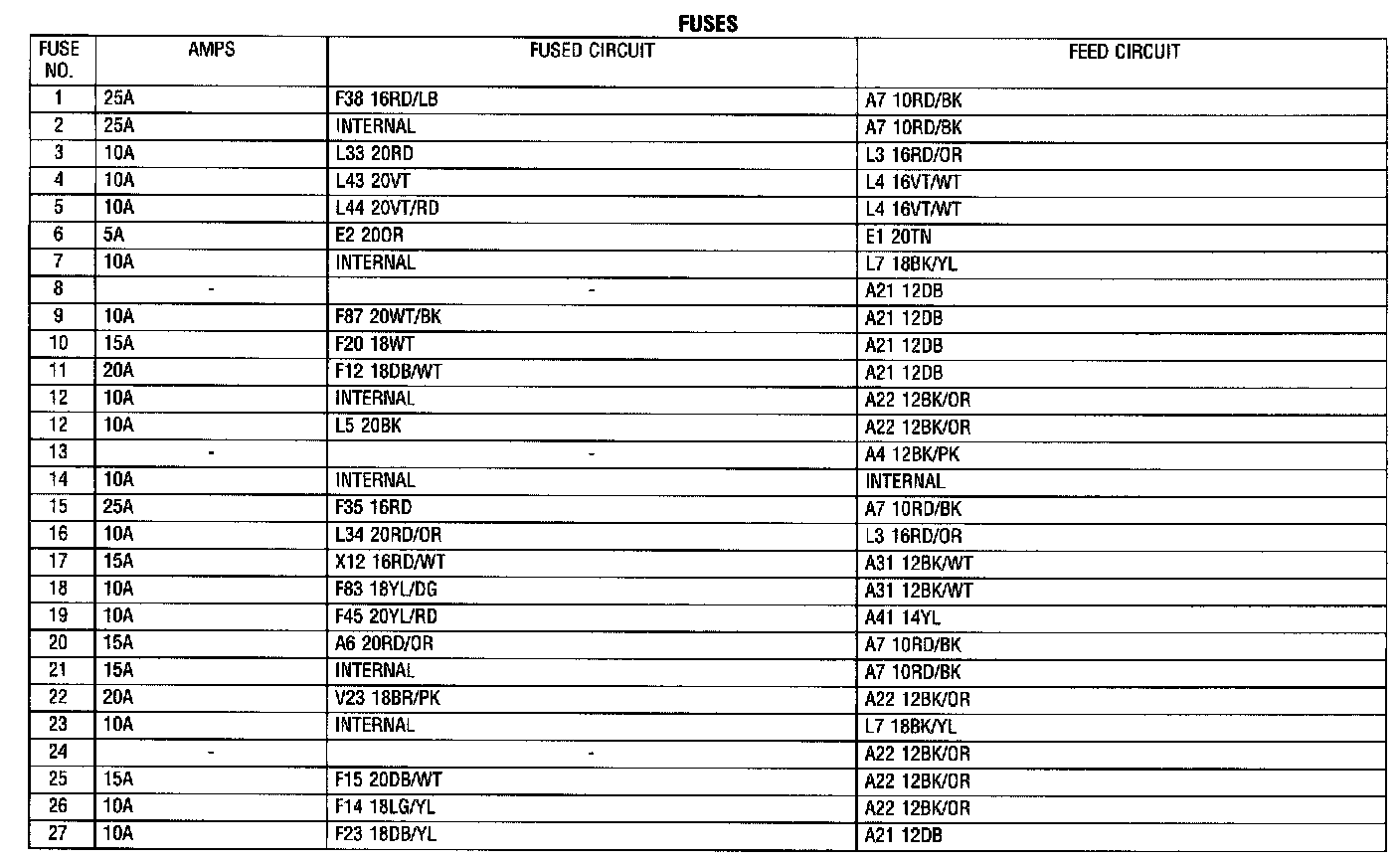

Fuses:
Fuses
