Transfer Case

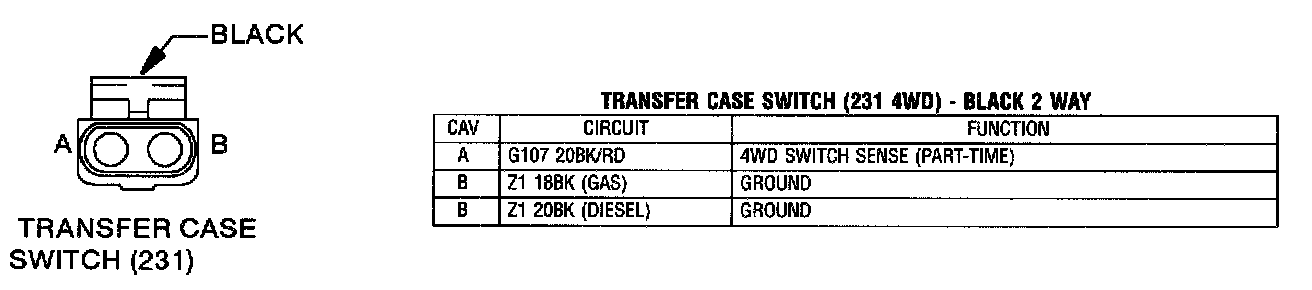

Transfer Case Switch (231 4WD):




Transfer Case Switch (231 4WD) - Black 2 Way

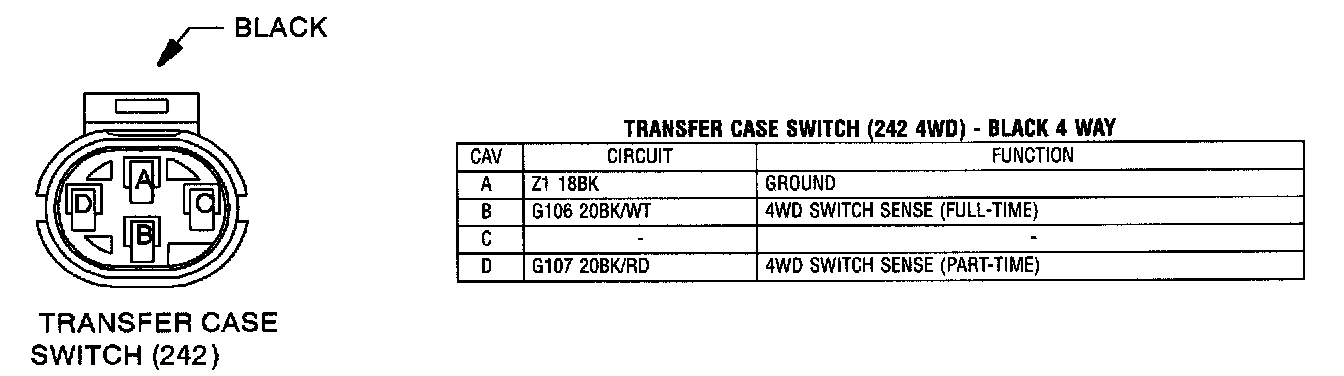

Transfer Case Switch (242 4WD):




Transfer Case Switch (242 4WD) - Black 4 Way
