Fuel Pump Pickup Filter: Locations

Fuel Pump Inlet Filter:

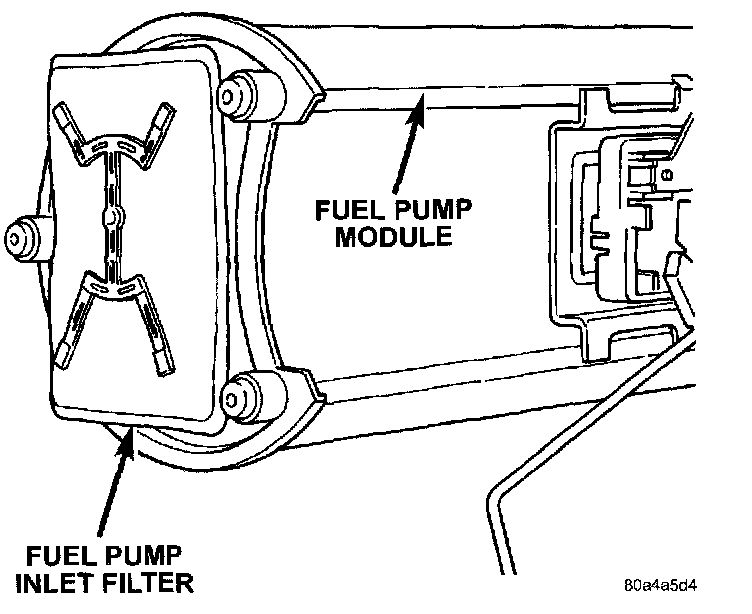

The fuel pump inlet filter (strainer) is located on the bottom of fuel pump module.
