Air Temperature Sensor ( Ambient / Intake ): Service and Repair

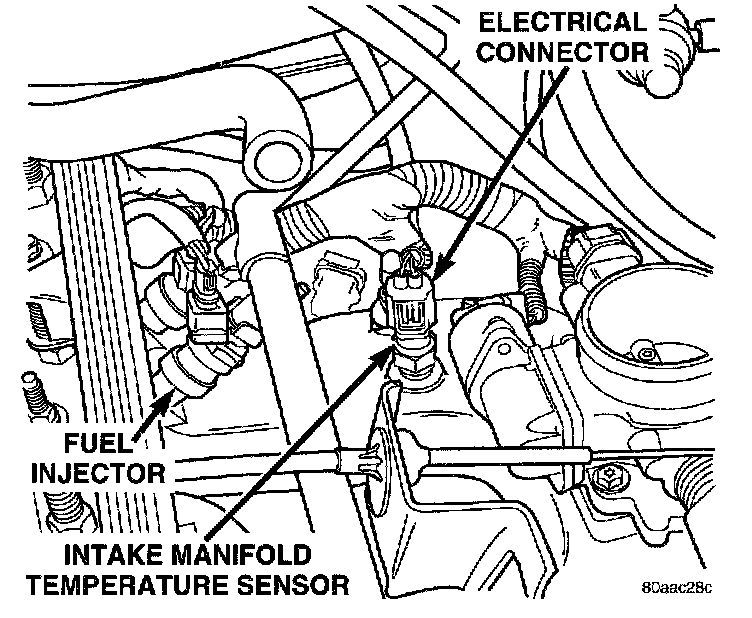

IAT Sensor Location:

The intake manifold air temperature (IAT) sensor is installed into the intake manifold plenum near the throttle body.

REMOVAL
1. Disconnect electrical connector from IAT sensor.
2. Remove sensor from intake manifold.

INSTALLATION
1. Install IAT sensor into intake manifold. Tighten sensor to 28 Nm (20 ft. lbs.) torque.
2. Connect electrical connector to sensor.
