Transmission Mode Switch, A/T





TRANSMISSION RANGE SENSOR (TRANS SIDE) - 8 WAY

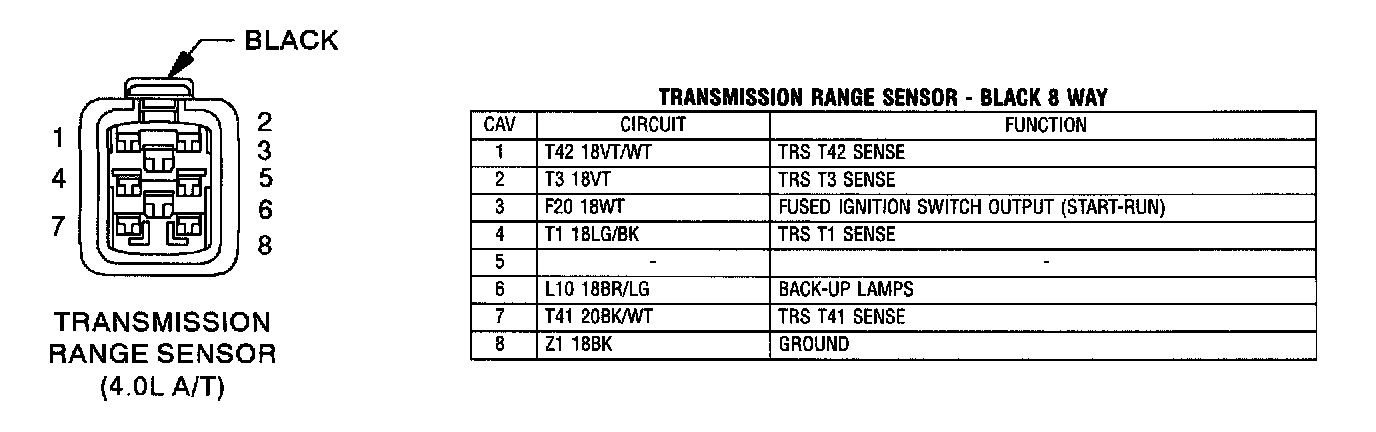

TRANSMISSION RANGE SENSOR - BLACK 8 WAY
