Air Register: Service and Repair

REMOVAL AND INSTALLATION

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, REFER TO AIR BAGS AND SEAT BELTS/AIR BAGS BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

Panel Outlet Ducts
The panel outlet ducts are integral to the instrument panel assembly Refer to Instrument Panel Assembly in Instrument Panel Systems for the procedures.

Panel Outlet Barrels

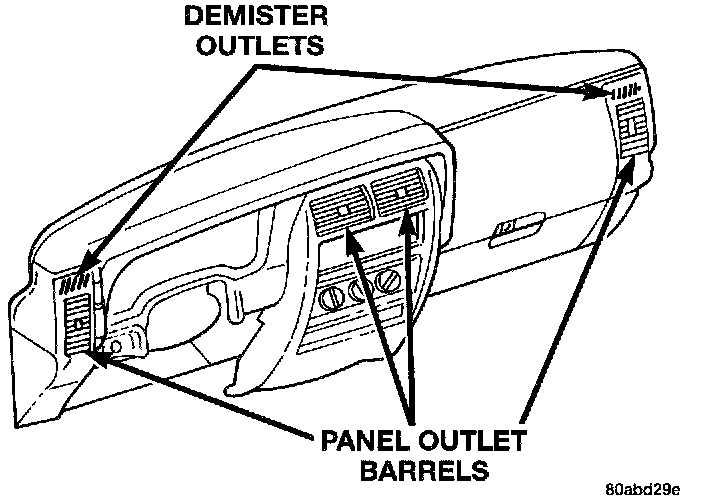

Panel Outlet Barrels:

1. Use a trim stick or another suitable wide flatbladed tool to gently pry the panel outlet barrel out of the panel outlet housing. The barrel is retained by a light snap fit.
2. To install position the barrel in the panel outlet housing and press firmly until the barrel snaps into place.

Demister Outlets
The side window demister outlets are integral to the instrument panel end caps. Refer to Instrument Panel End Cap in Instrument Panel Systems for the procedures.

Defrost Duct/Demister Adapter
1. Remove the instrument panel assembly from the vehicle. Refer to Instrument Panel Assembly in Instrument Panel Systems for the procedures.

Defrost Duct/Demister Adapter:

2. Disconnect the demister hoses from the defrost duct/demister adapter.
3. Remove the three screws that secure the defrost duct/demister adapter to the instrument panel.
4. Remove the defrost duct/demister adapter from the instrument panel.
5. Reverse the removal procedures to install. Tighten the mounting screws to 2.2 N.m (20 in. lbs.).

Demister Hoses
1. Remove the instrument panel assembly from the vehicle. Refer to Instrument Panel Assembly in Instrument Panel Systems for the procedures.

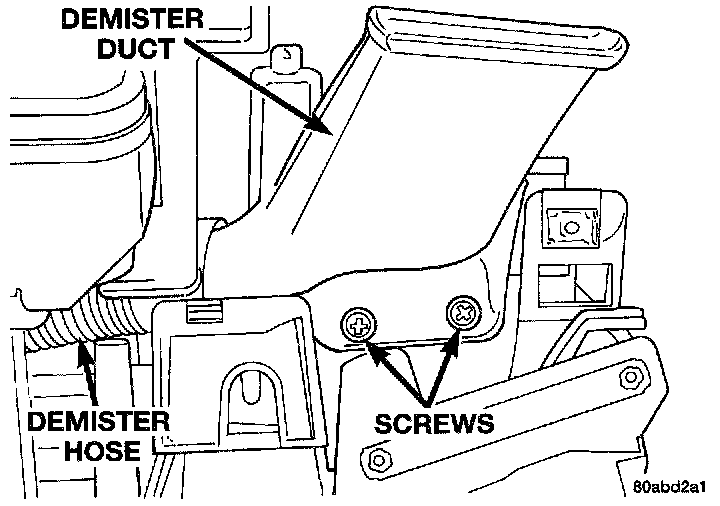

Demister Duct Remove/Install:

2. Disconnect the ends of the demister hose from the demister duct and the defrost duct/demister adapter.
3. Reverse the removal procedures to install.

Demister Ducts
1. Remove the instrument panel assembly from the vehicle. Refer to Instrument Panel Assembly in Instrument Panel Systems for the procedures.
2. Remove the end cap from the instrument panel. Refer to Instrument Panel End Cap in Instrument Panel Systems for the procedures.
3. Disconnect the demister hoses from the demister duct.
4. Remove the two screws that secure the demister duct to the top of the instrument panel.
5. Remove the demister duct from the instrument panel.
6. Reverse the removal procedures to install. Tighten the mounting screws to 2.2 N.m (20 in. lbs.).

Console Rear Duct
1. Disconnect and isolate the battery negative cable.

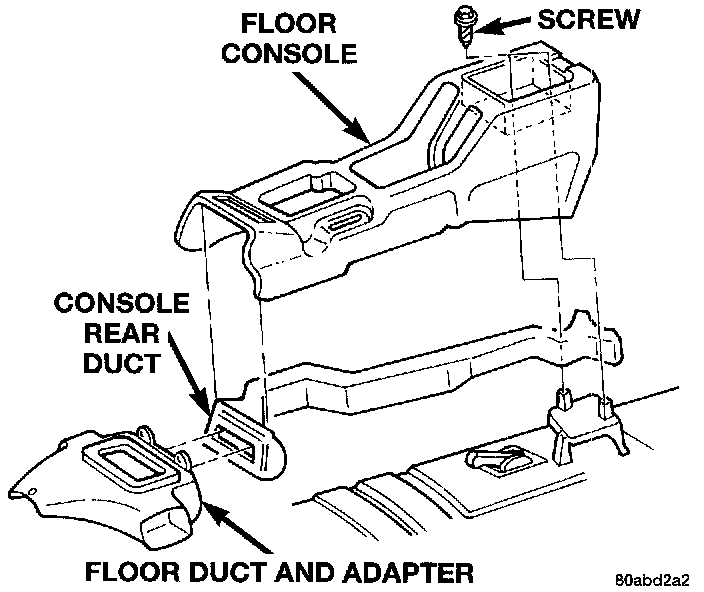

Floor Duct And Console Rear Duct Remove/Install:

2. Remove the floor console from the floor panel transmission tunnel.
3. Lift the rear of the console rear duct out of the console rear mounting bracket on the floor panel transmission tunnel and slide the duct rearward to disengage it from the floor duct and adapter.
4. Remove the console rear duct from the vehicle.
5. Reverse the removal procedures to install.

Floor Duct And Adapter
1. Remove the instrument panel from the vehicle. Refer to Instrument Panel Assembly in Instrument Panel Systems for the procedures.
2. Remove the heater-A/C housing from the vehicle. See Heater-A/C Housing for the procedures.
3. Remove the three screws that secure the floor duct and adapter to the heater-A/C housing.
4. Remove the floor duct and adapter from the heater-A/C housing.
5. Reverse the removal procedures to install. Tighten the mounting screws to 2.2 N.m (20 in. lbs.).
