Wiring Diagrams

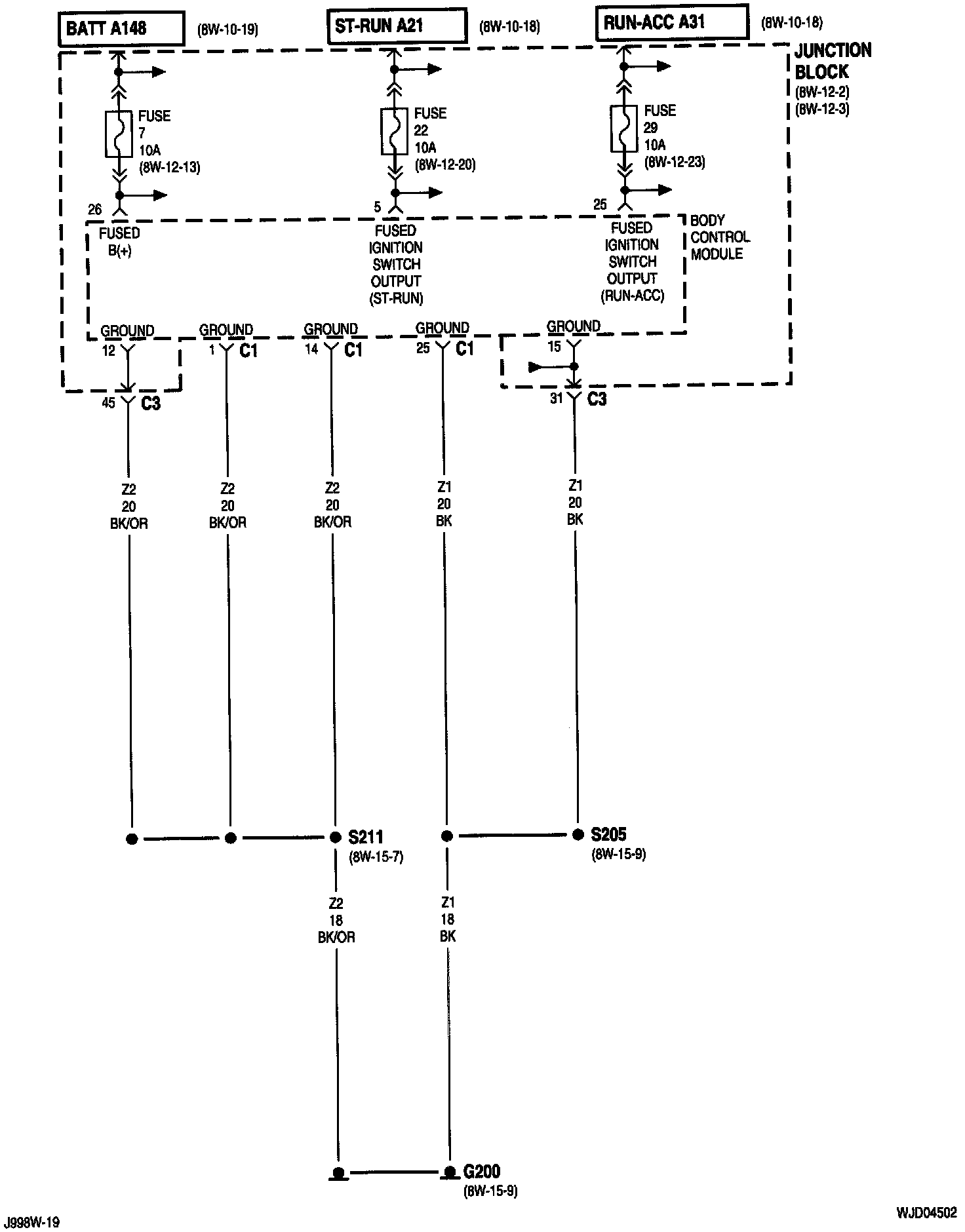

Body Control Module (Part 1 Of 8):




Body Control Module
Fuse 7 (JB)
Fuse 22 (JB)
Fuse 29 (JB)
G200
Junction Block

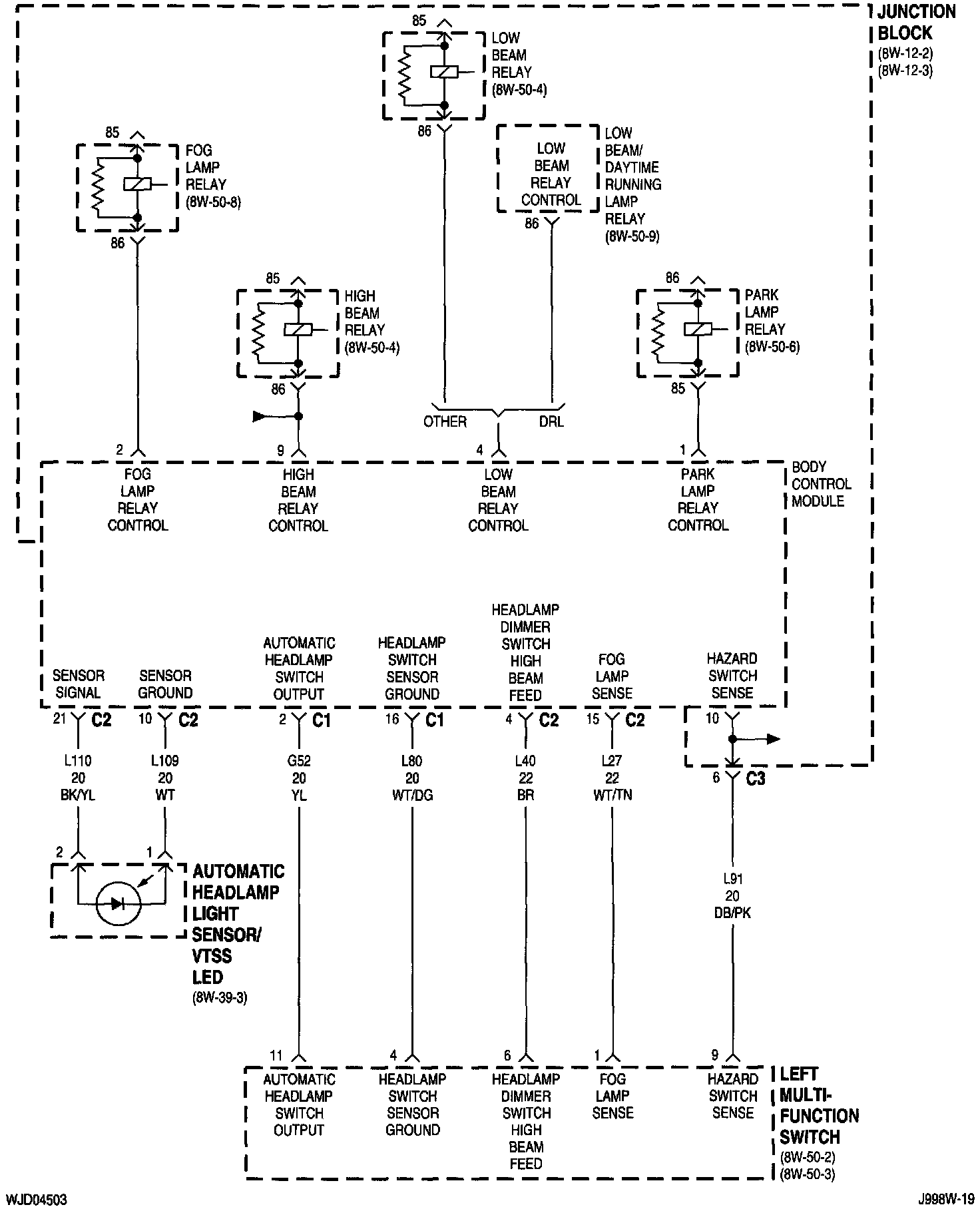

Body Control Module (Part 2 Of 8):




Automatic Headlamp Light Sensor VTSS LED
Body Control Module
Fog Lamp Relay
High Beam Relay
Junction Block
Left Multi-Function switch
Low Beam Relay
Relay
Park Lamp Relay

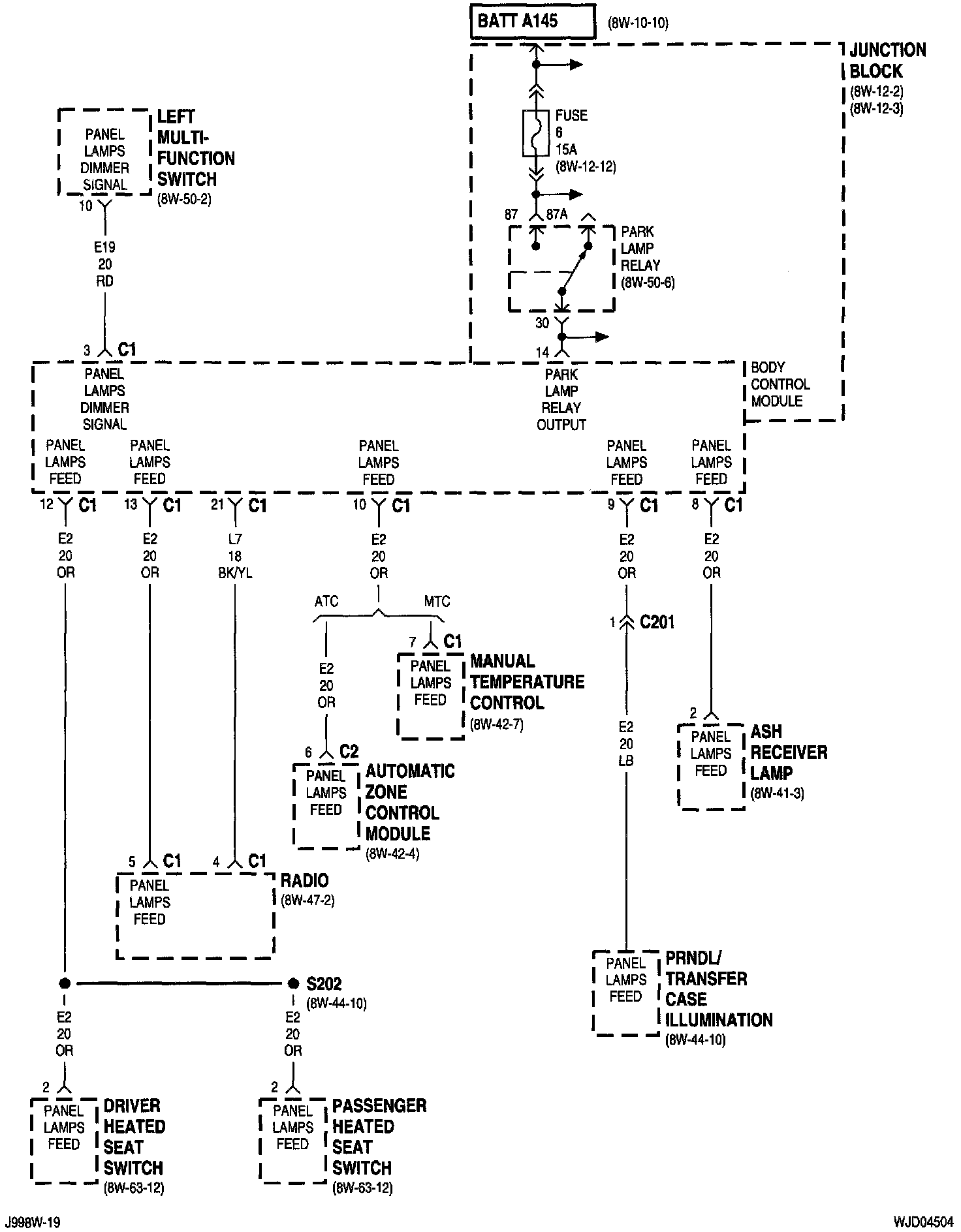

Body Control Module (Part 3 Of 8):




Ash Receiver Lamp
Automatic Zone Control Module
Body Control Module
Driver Heated Seat switch
Fuse 6 (JB)
Junction Block
Left Multi- Function switch
Manual Temperature Control
Park Lamp Relay
Passenger Heated Seat switch
Prndl/Transfer Case Illumination
Radio

Body Control Module (Part 4 Of 8):




Body Control Module
Cargo Lamp
Coolant Level Sensor
Data Link Connector
Diagnostic Junction Port
G108
Glove Box Lamp
Ignition switch
Junction Block
Left Courtesy Lamp
Overhead Map/Courtesy Lamp
Right Courtesy Lamp

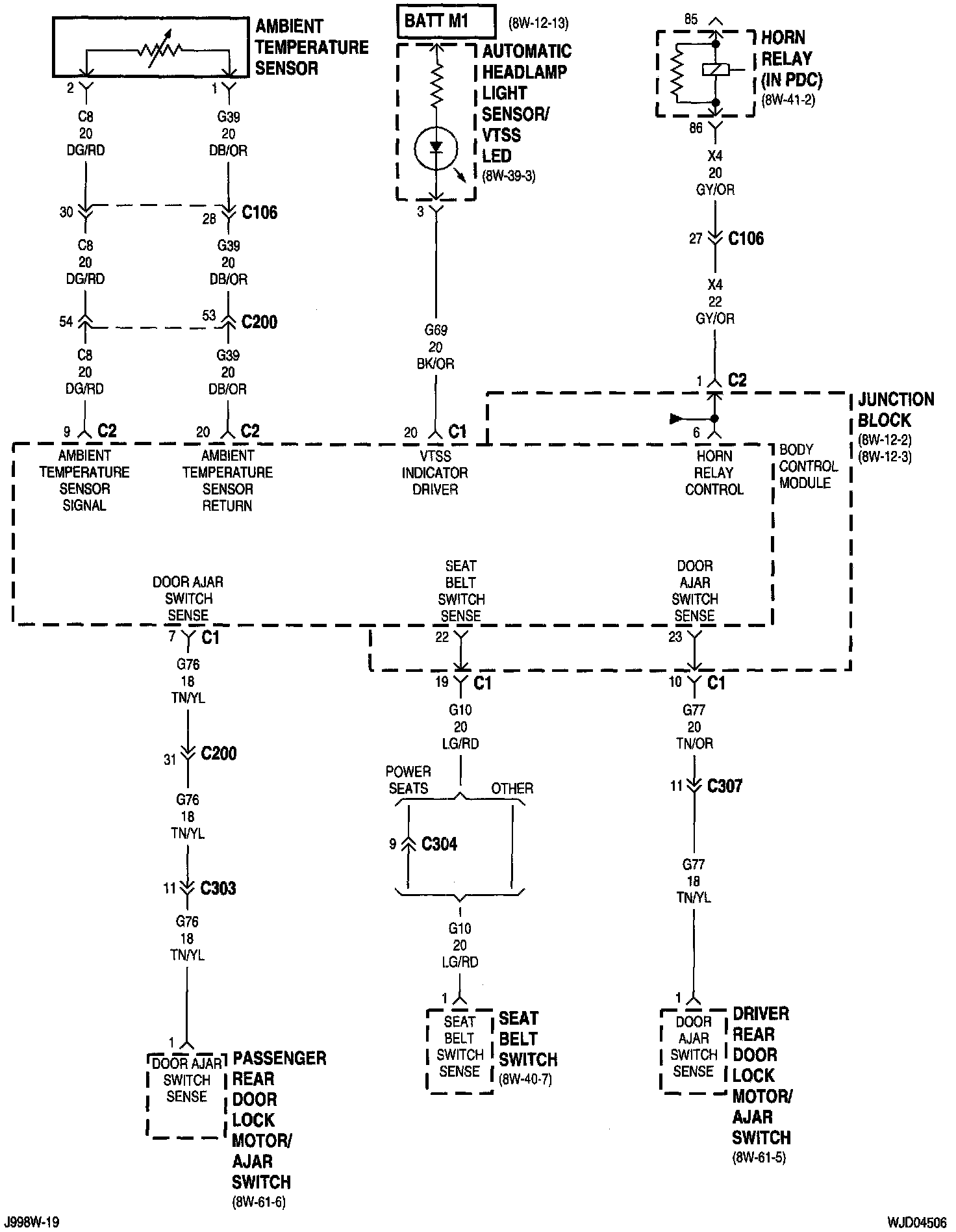

Body Control Module (Part 5 Of 8):




Ambient Temperature Sensor
Automatic Headlamp Light Sensor VTSS LED
Body Control Module
Driver Rear Door Lock Motor/Ajar switch
Horn Relay
Junction Block
Ajar switch
Seat Belt switch

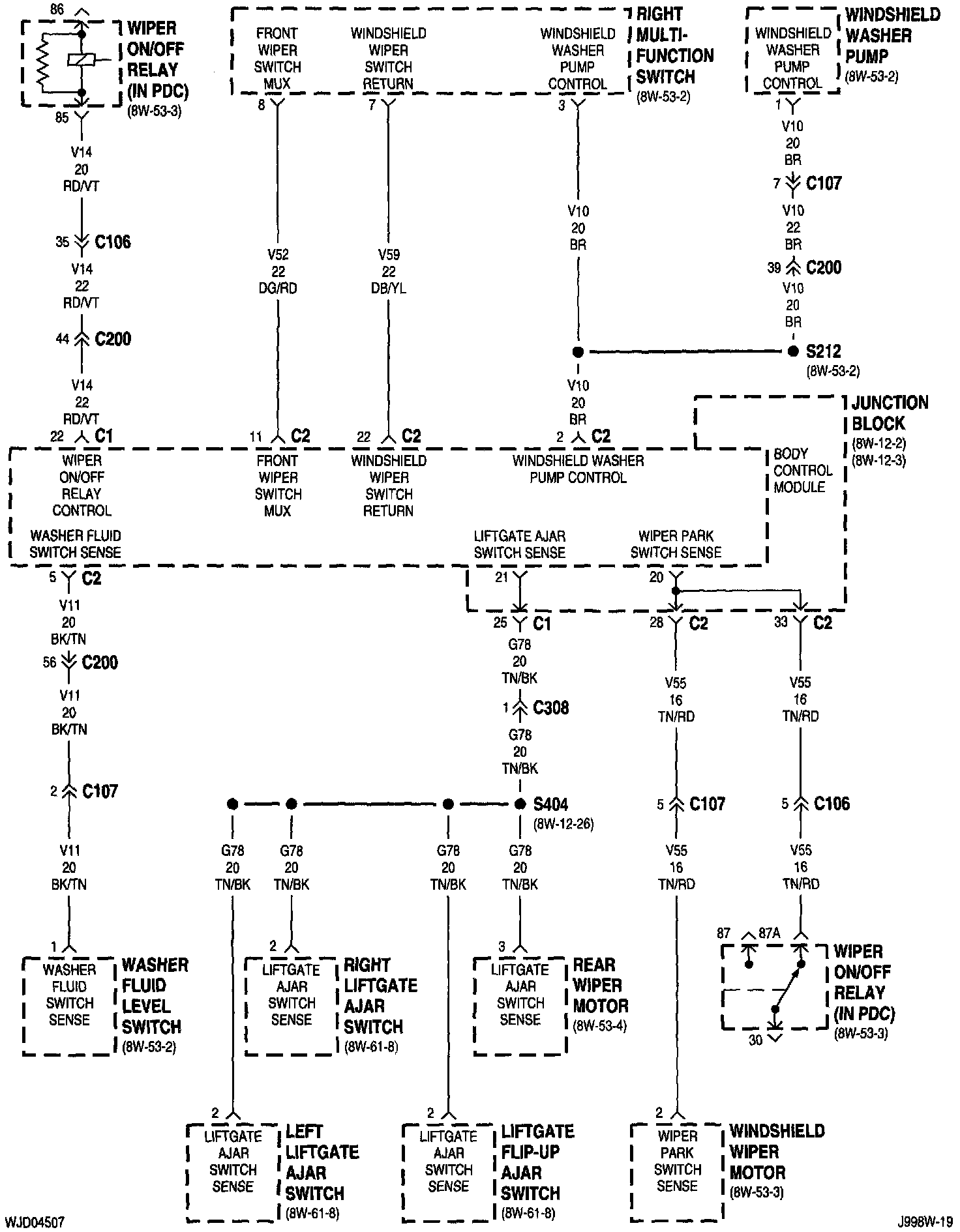

Body Control Module (Part 6 Of 8):




Body Control Module
Junction Block
Left Liftgate Ajar switch
Liftgate Flip-Up Ajar switch
Rear Wiper Motor
Right Liftgate Ajar switch
Right Multi- Function switch
Washer Fluid Level switch
Windshield Washer Pump
Windshield Wiper Motor
Wiper On/Off Relay

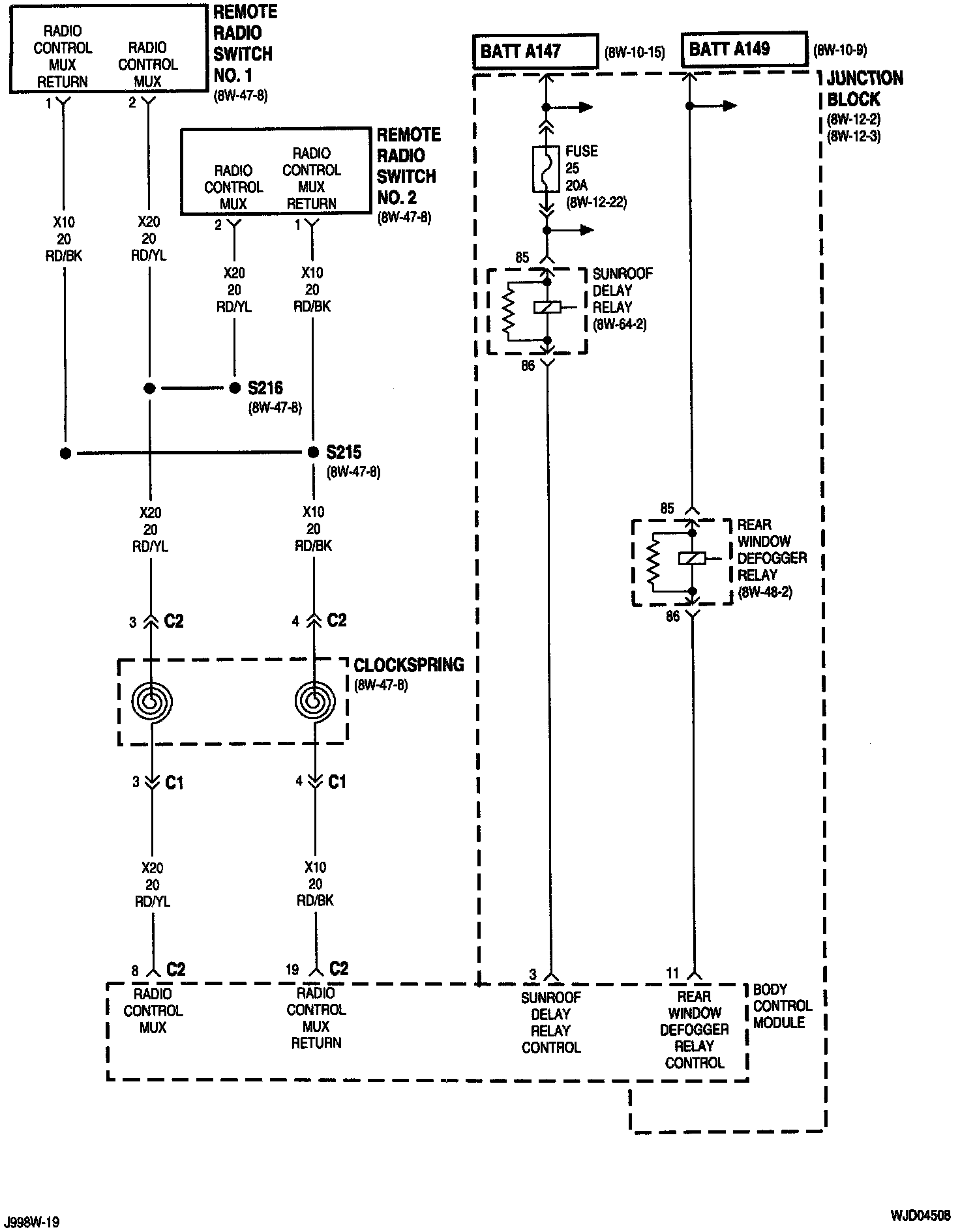

Body Control Module (Part 7 Of 8):




Body Control Module
Clockspring
Fuse 25 (JB)
Junction Block
Rear Window Defogger Relay
Remote Radio switch No 1
Remote Radio switch No 2
Sunroof Delay Relay

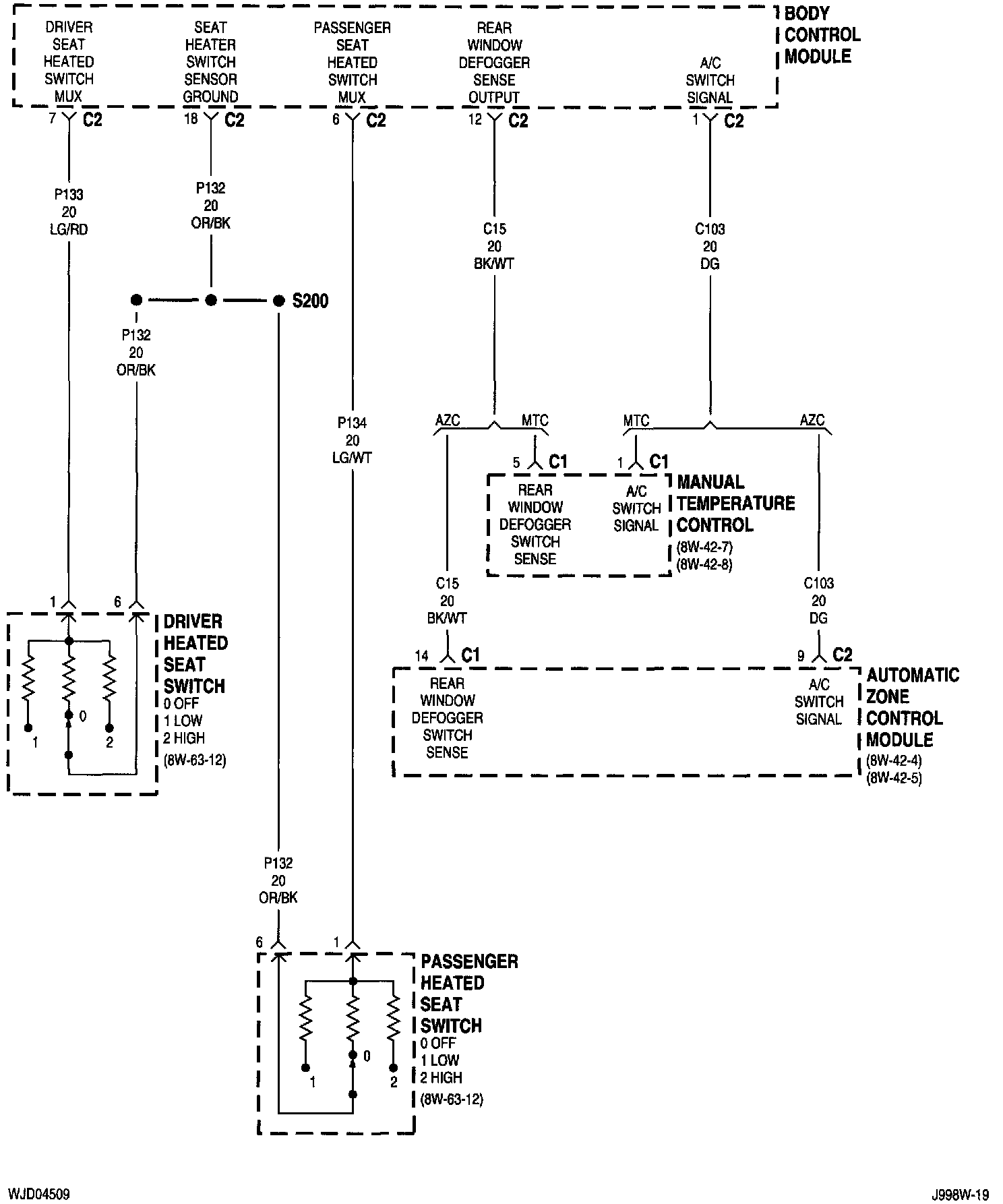

Body Control Module (Part 8 Of 8):




Automatic Zone Control Module
Body Control Module
Driver Heated Seat switch
Manual Temperature Control
Passenger Heated Seat switch


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Diagrams By Group Number
