Power Distribution

Power Distribution Center -- In The Engine Compartment Near The Battery:

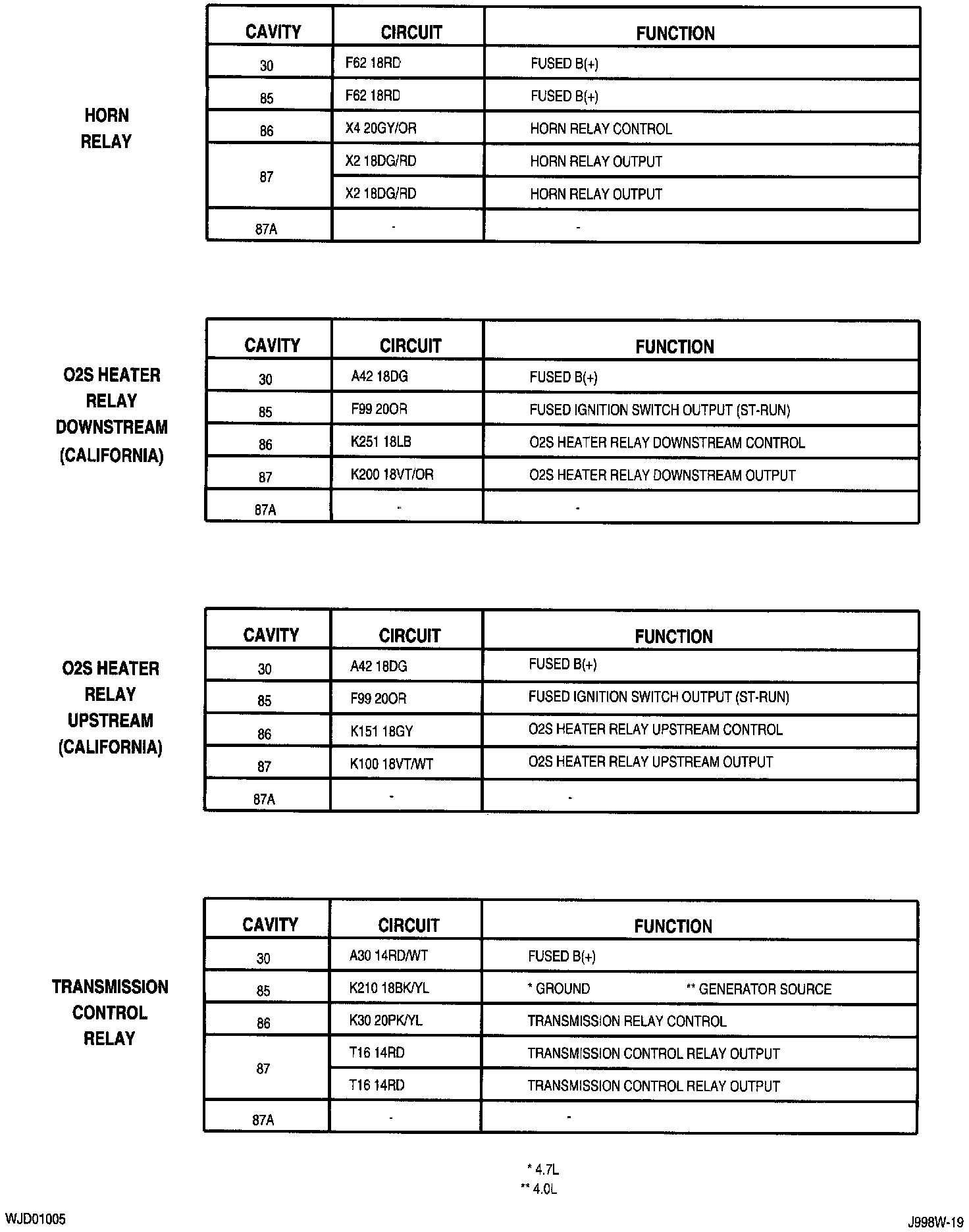

Power Distribution:

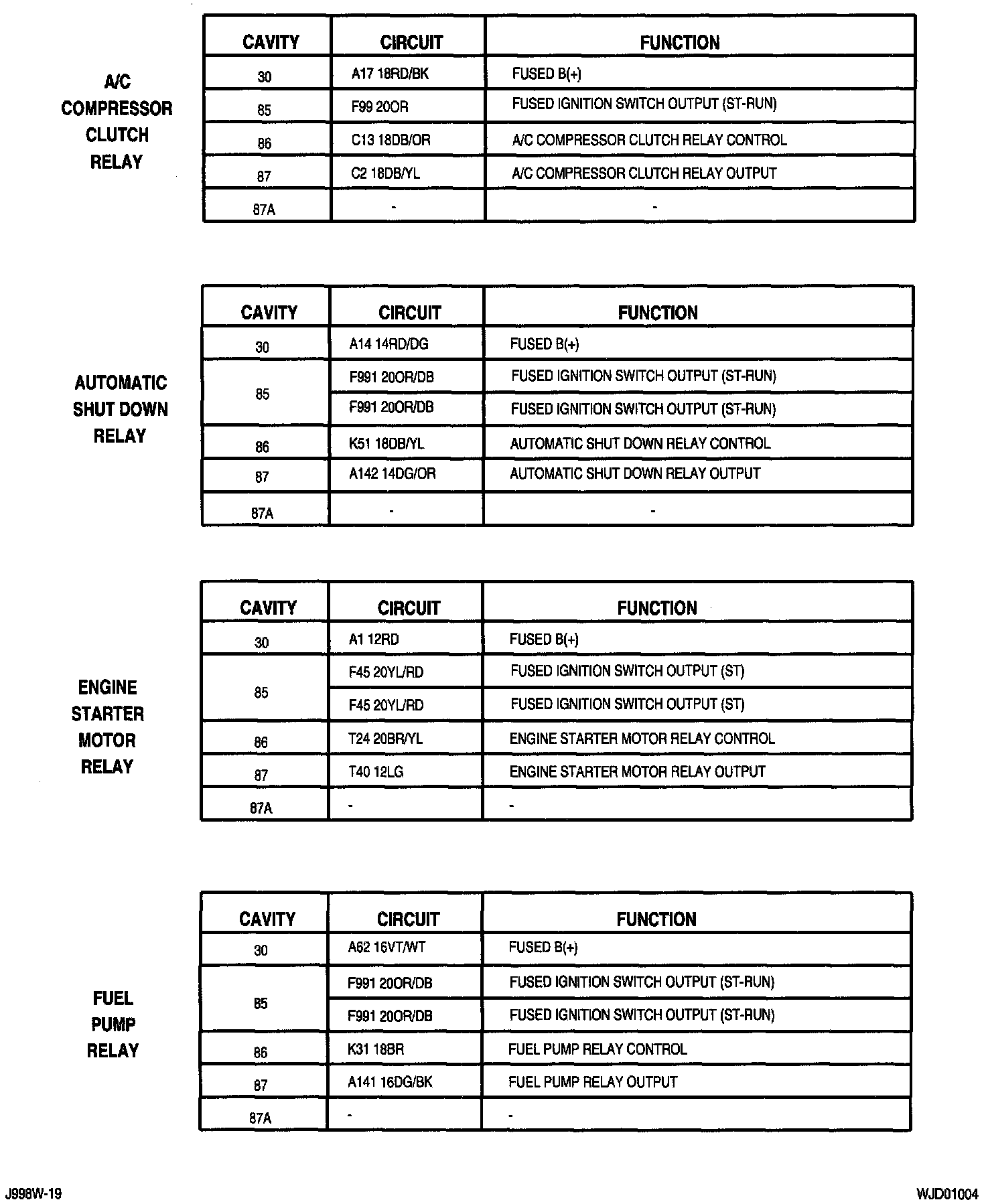

Power Distribution:
