Air Temperature Sensor ( Ambient / Intake ): Service and Repair

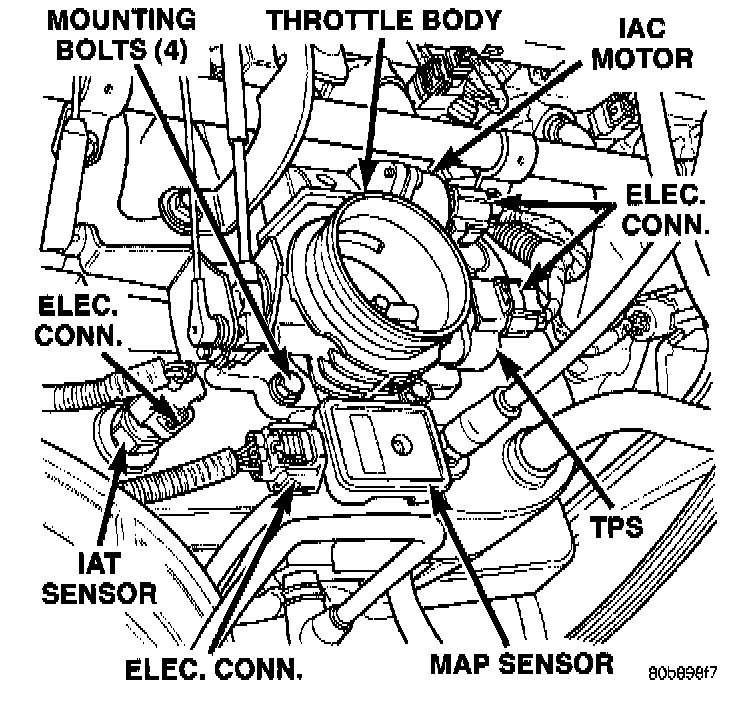

Intake Manifold Air Sensor Location:

The Intake Manifold Air Temperature (IAT) sensor is installed into the intake manifold plenum near the front of the throttle body.

REMOVAL
1. Disconnect electrical connector from sensor.
2. Remove sensor from intake manifold.

INSTALLATION
1. Install sensor into intake manifold. Tighten sensor to 28 Nm (20 ft. lbs.) torque.
2. Connect electrical connector to sensor.
