Component Tests

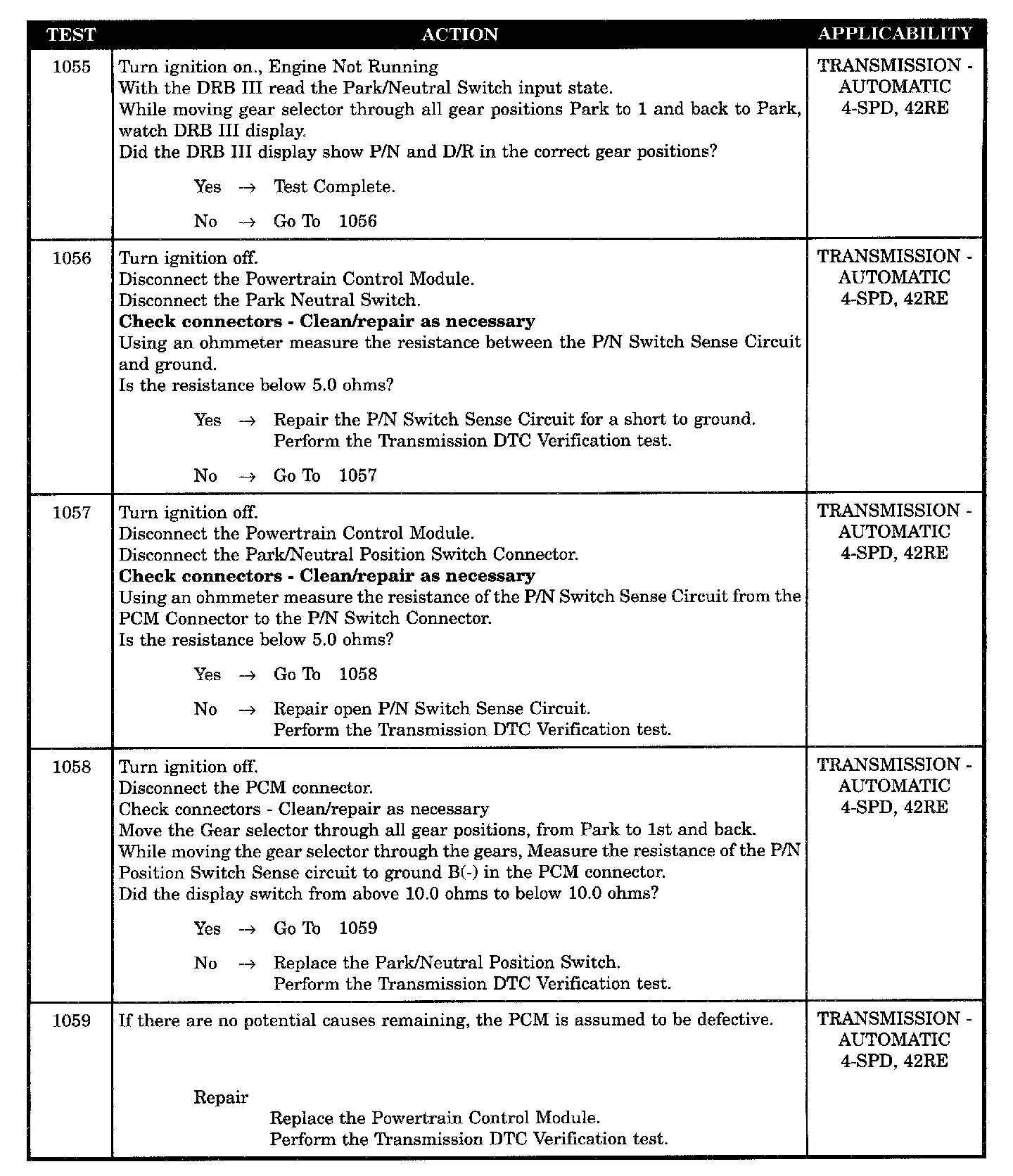

Tests 1055 - 1059:




SYMPTOM
*CHECKING PARK/NEUTRAL SWITCH OPERATION

POSSIBLE CAUSES
- [1][2]Park/Neutral position switch defective
- P/N switch sense circuit shorted to ground
- Park/Neutral switch sense circuit open
- Powertrain control module defective
