Door Module: Diagrams

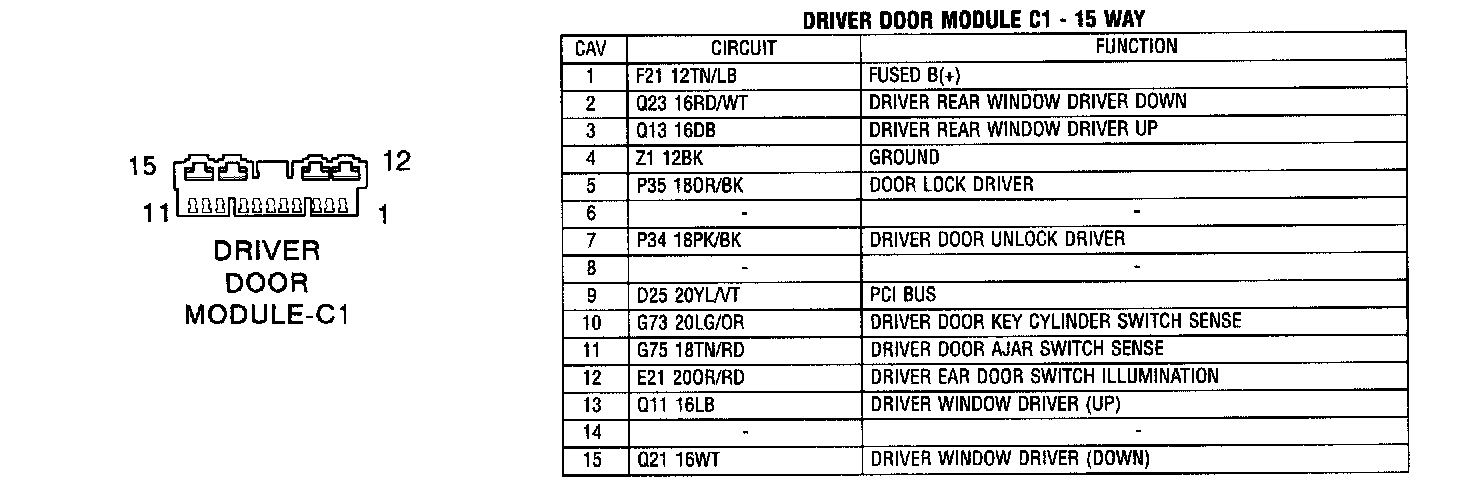

Driver Door Module - C1




Driver Door Module - C2

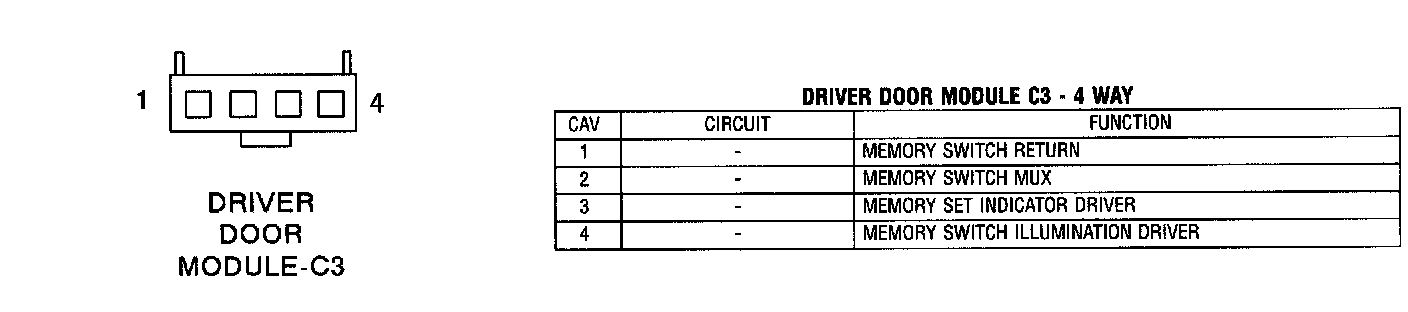

Driver Door Module - C3

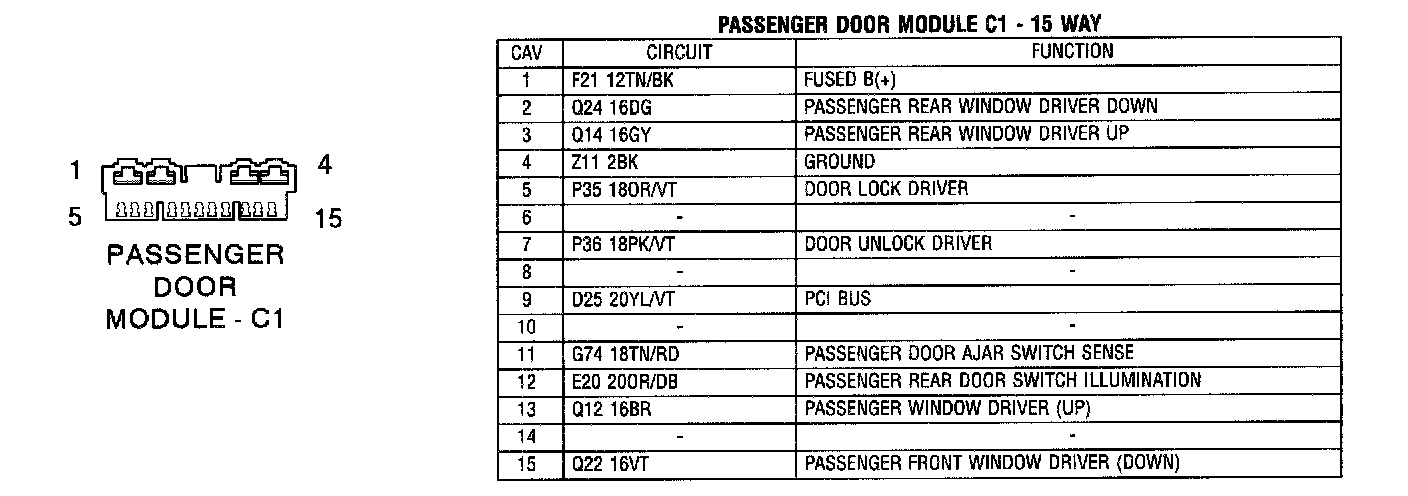

Passenger Door Module C1

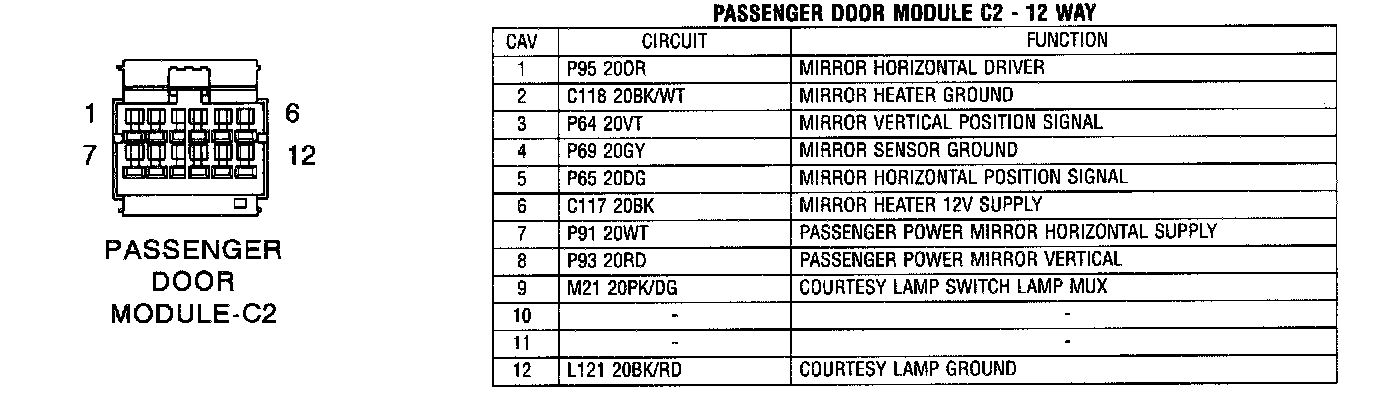

Passenger Door Module C2
