Electronic Brake Control Module: Service and Repair

REMOVAL
1. Remove negative battery cable from the battery.
2. Remove air cleaner housing.

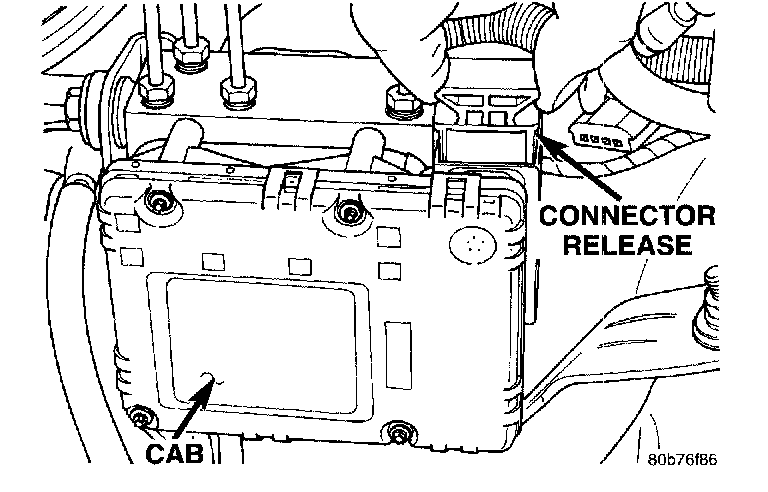

CAB Connector Release:

3. Pull Controller Antilock Brake (CAB) harness connector release up and remove connector.
4. Remove pump motor connector.

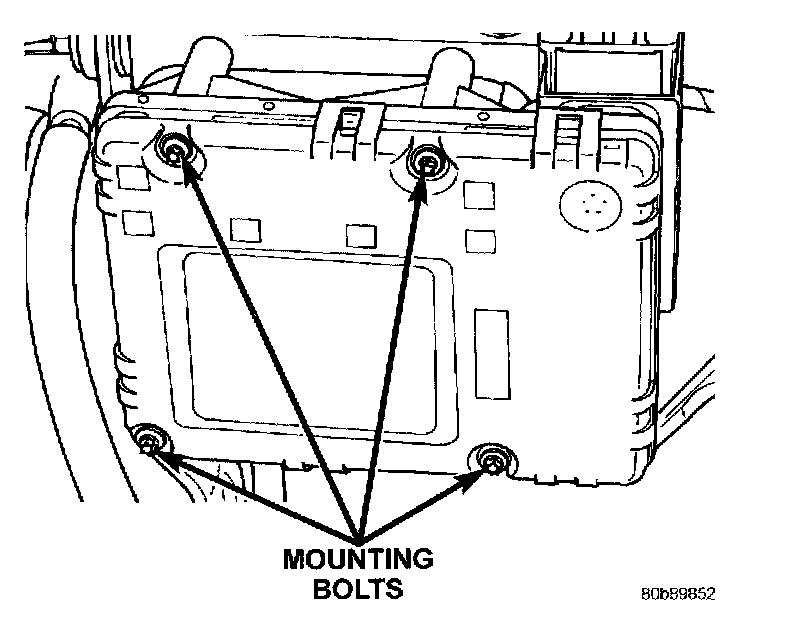

CAB Mounting Bolts:

5. Remove CAB mounting bolts and remove the CAB from the Hydraulic Control Unit (HCU).

INSTALLATION
1. Install the CAB onto the HCU and tighten mounting bolts to 1.8 Nm (16 inch lbs.).
2. Install pump motor connector.
3. Install CAB harness connector and push down connector release.
4. Install air cleaner housing.
5. Install negative battery cable to the battery.
