Electrical Diagrams

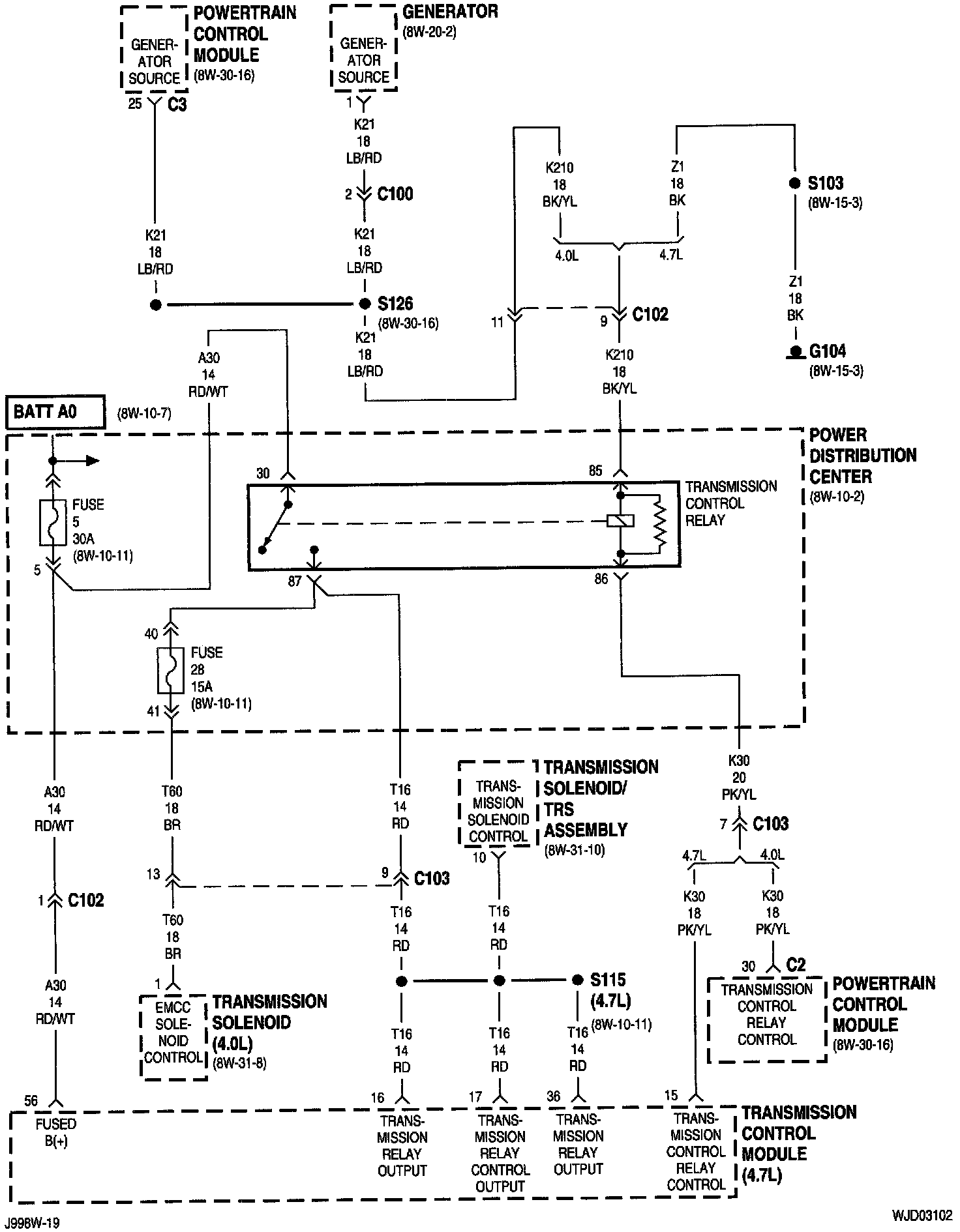

Transmission Control System:

Fuse 5 (PDC)
Fuse 28 (PDC)
G104
Generator
Powertrain Control Module
Transmission Control Module
Transmission Control Relay
Transmission Solenoid
Transmission Solenoid/TRS Assembly

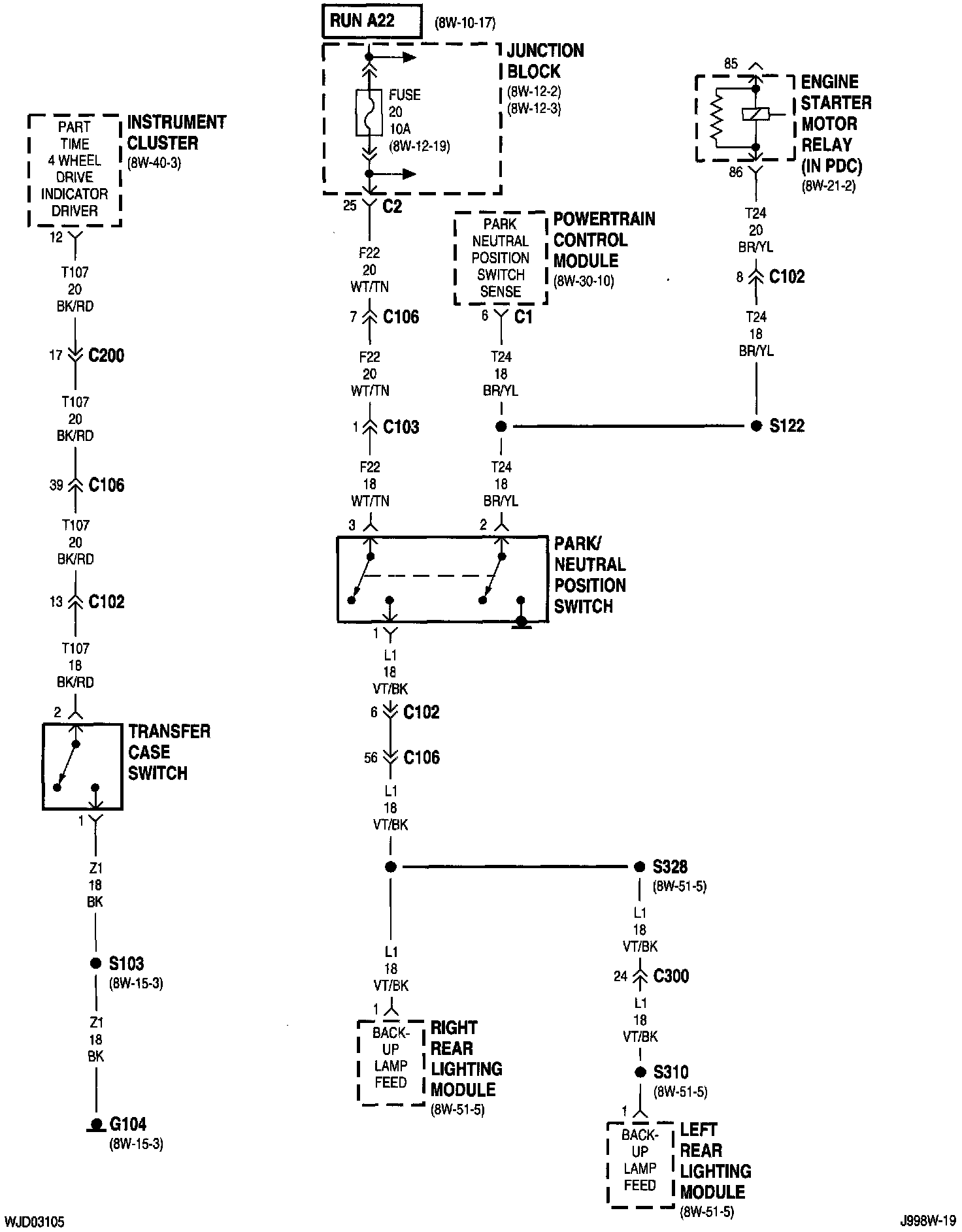

Transmission Control System:

Engine Starter Motor Relay
Fuse 20 (JB)
G104
Instrument Cluster
Junction Block
Left Rear Lighting Module
[1][2]Park/Neutral Position switch
Powertrain Control Module
Right Rear Lighting Module
Transfer Case switch

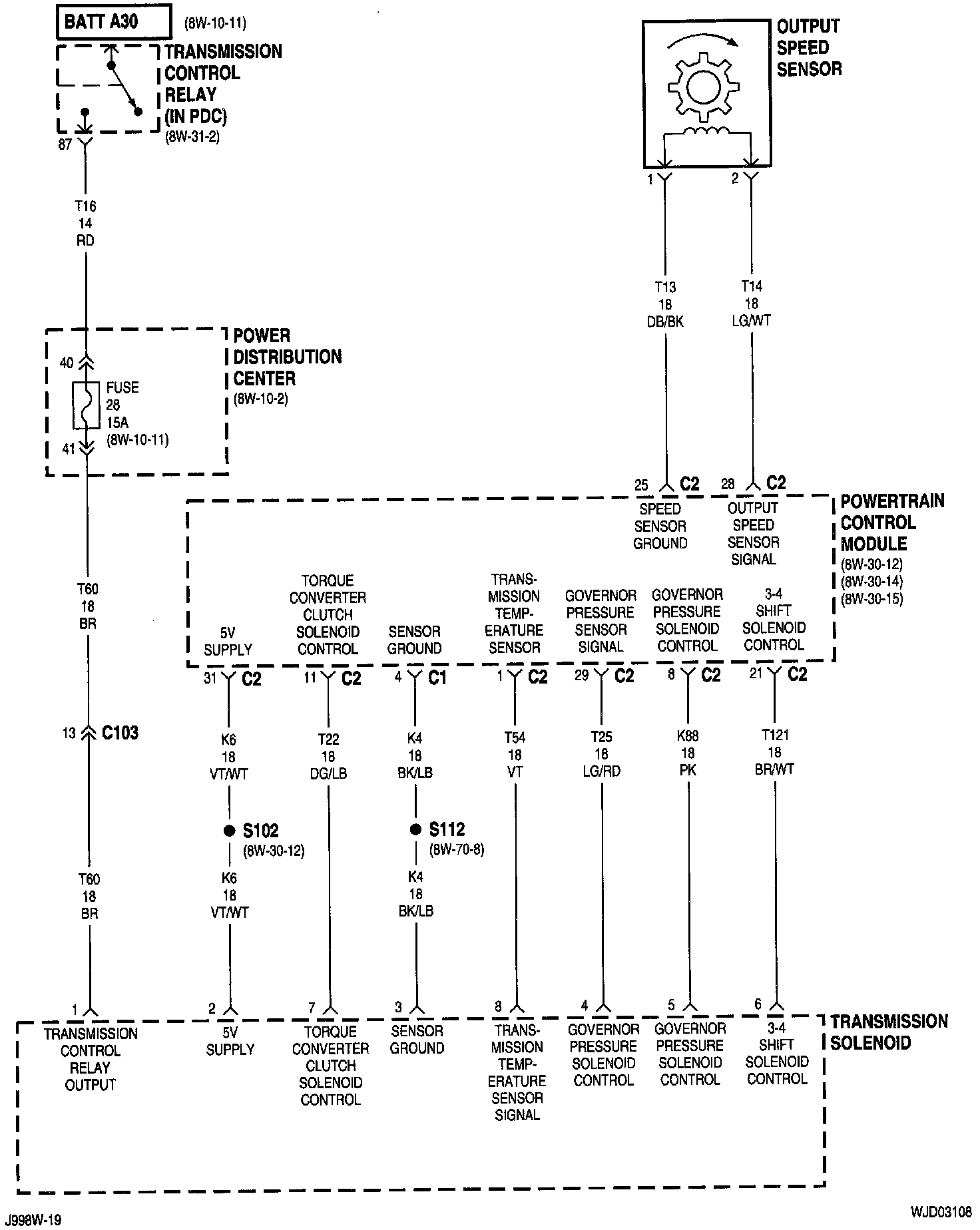

Transmission Control System:

Fuse 28 (PDC)
Output Speed Sensor
Powertrain Control Module
Transmission Control Relay
Transmission Solenoid

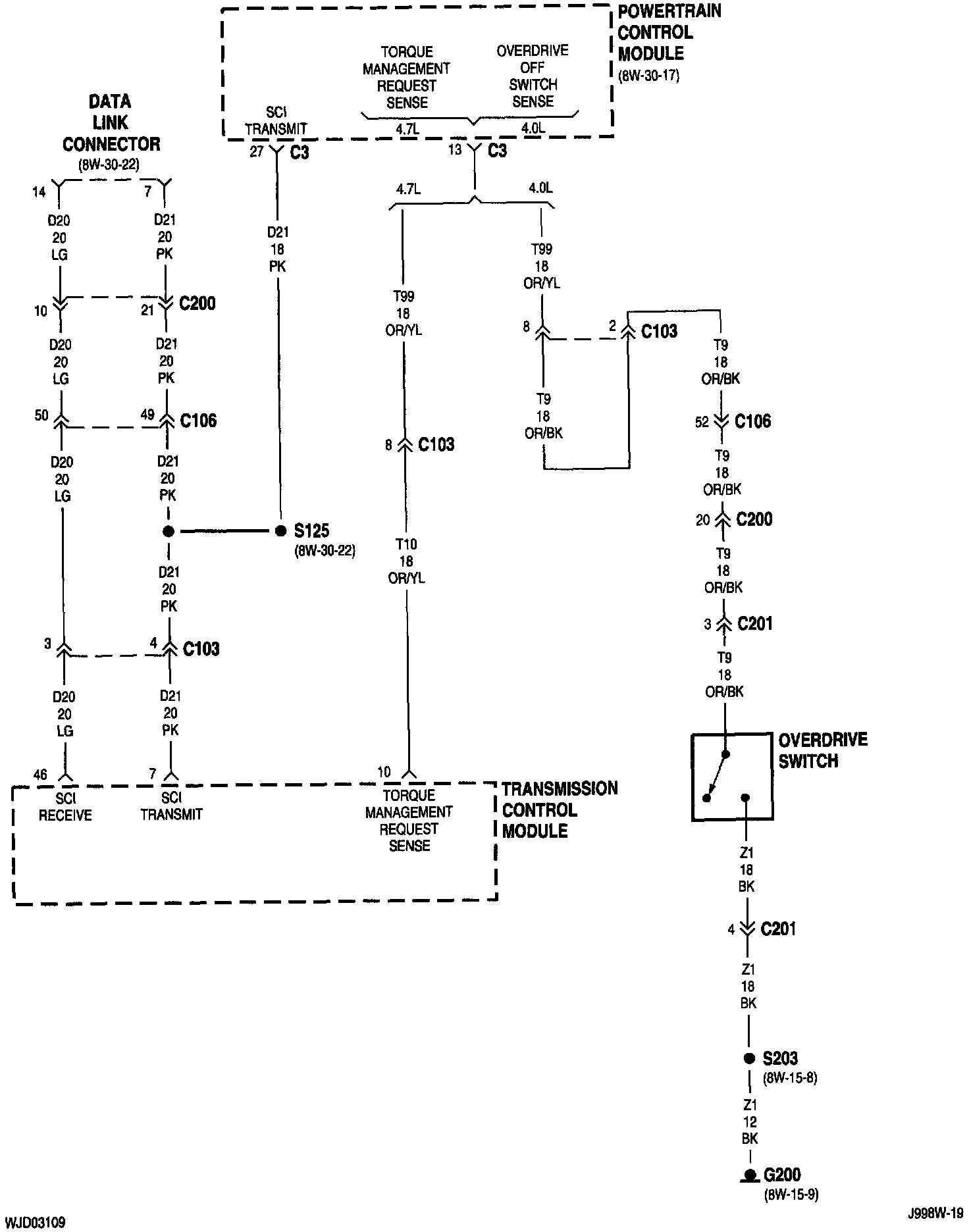

Transmission Control System:

Data Link Connector
G200
Overdrive switch
Powertrain Control Module
Transmission Control Module


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number
