Fuseblock Module & Relay Bank

Connector Pin Locations (Part 1 Of 2):

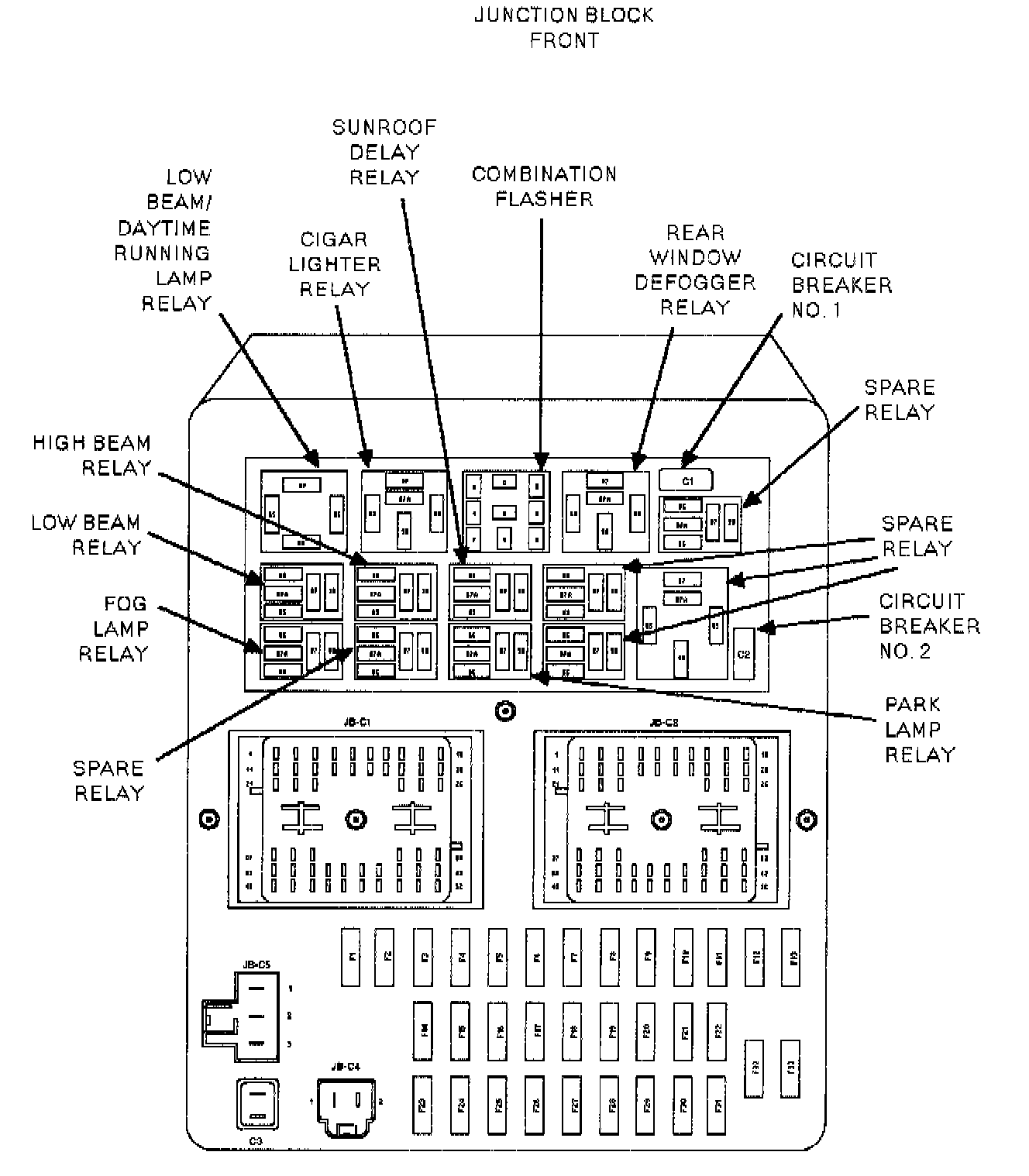

Junction Block Front

Connector Pin Locations (Part 2 Of 2):

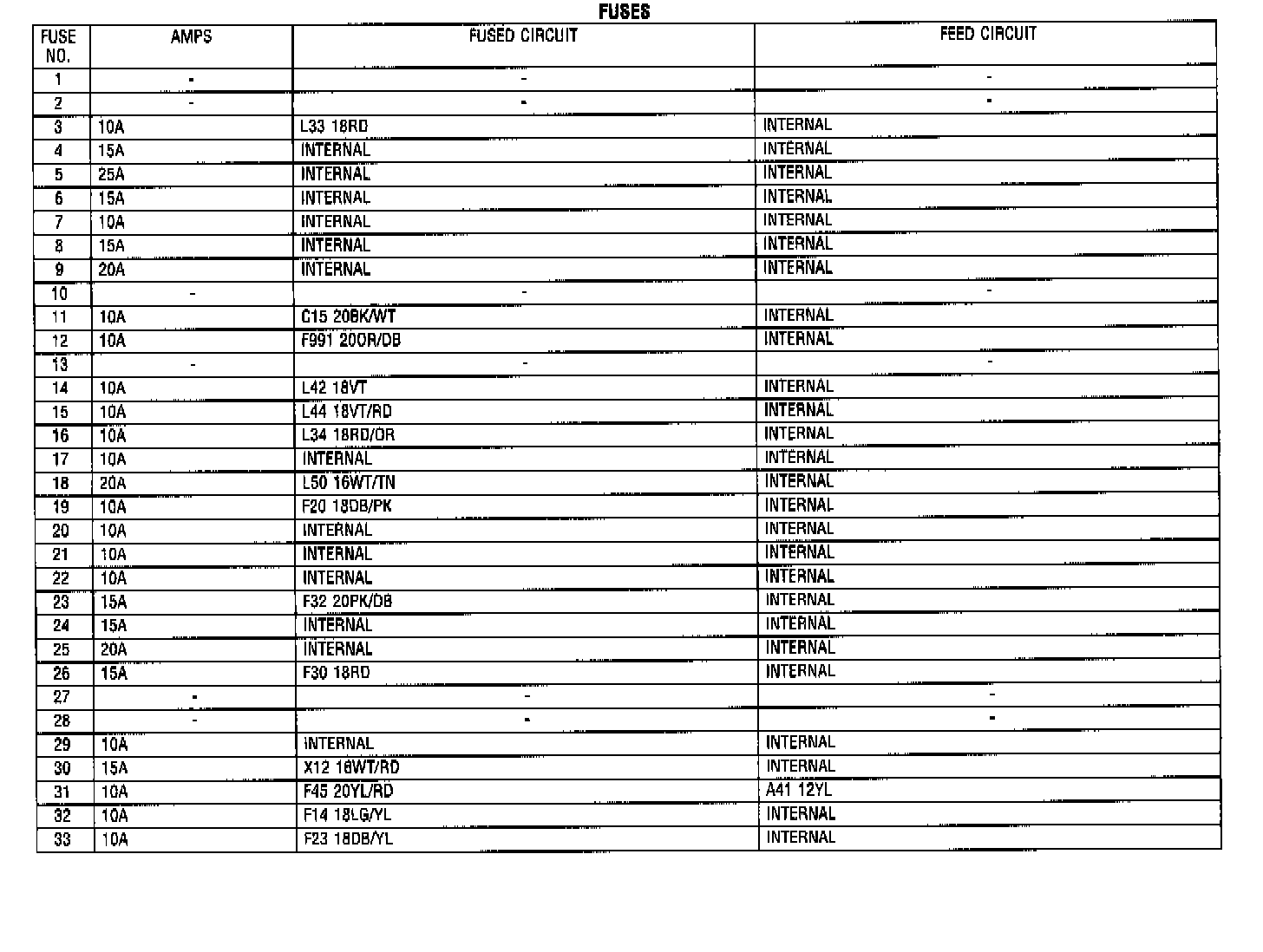

Fused Circuits

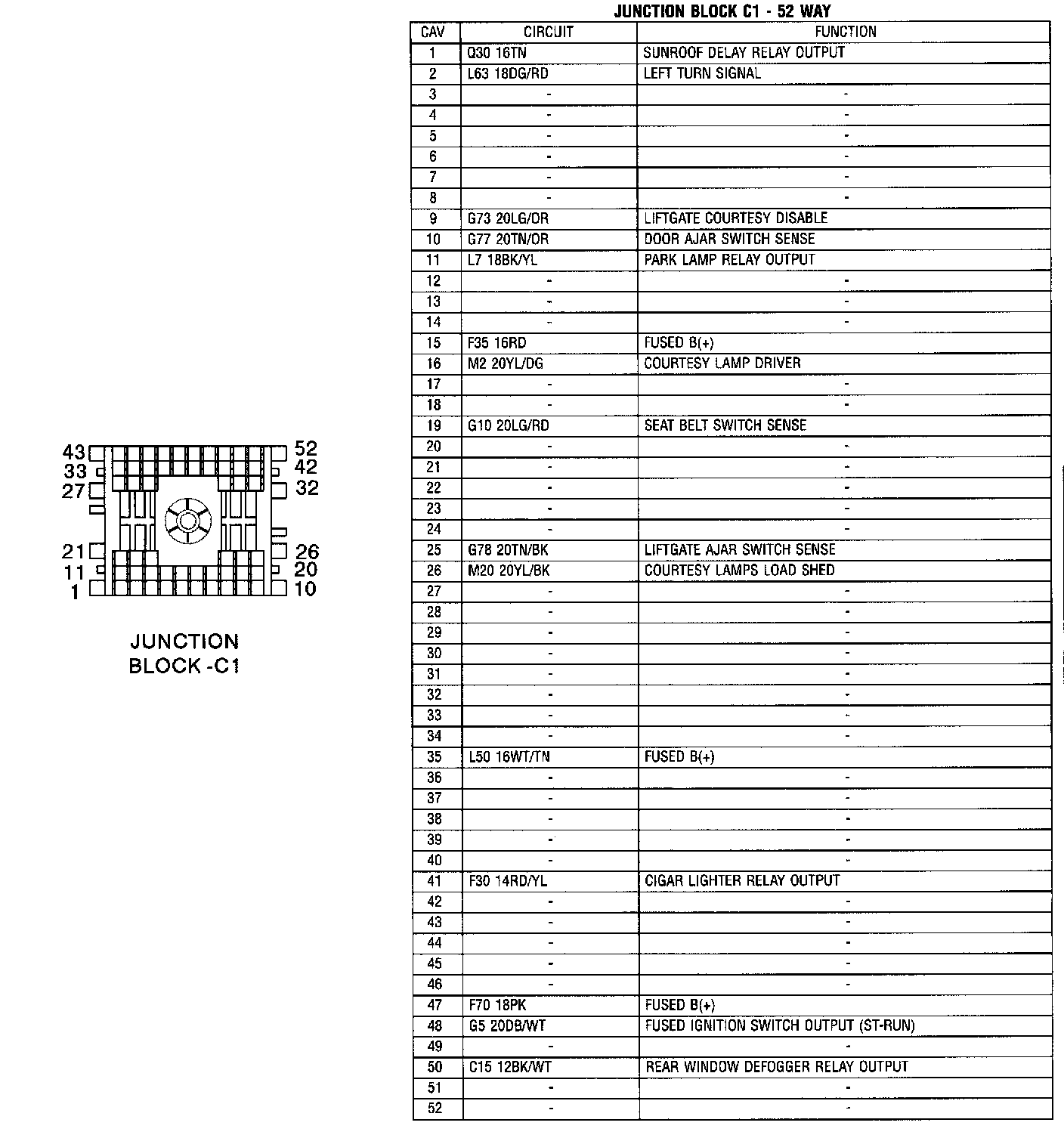

Junction Block - C1

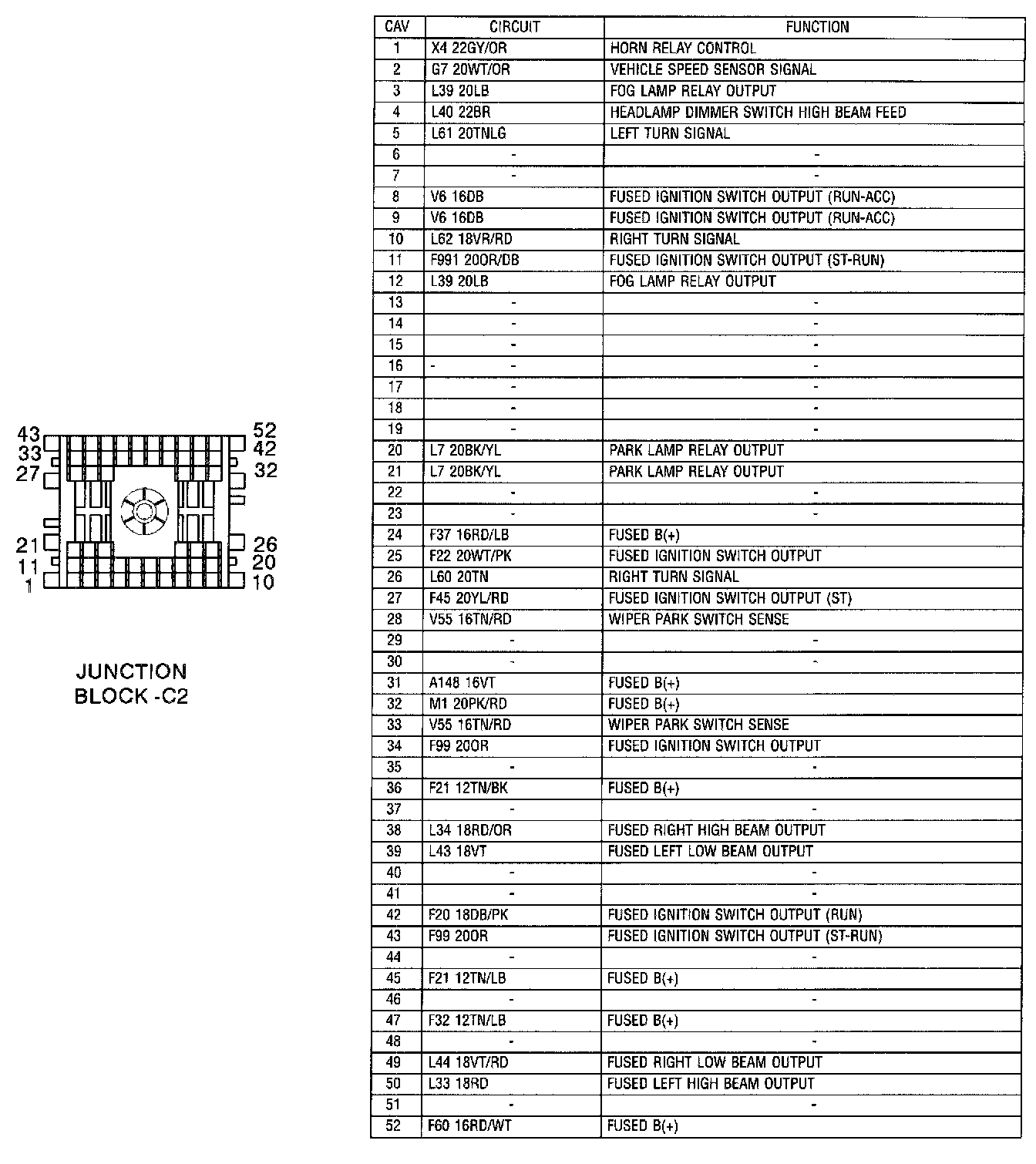

Junction Block - C2

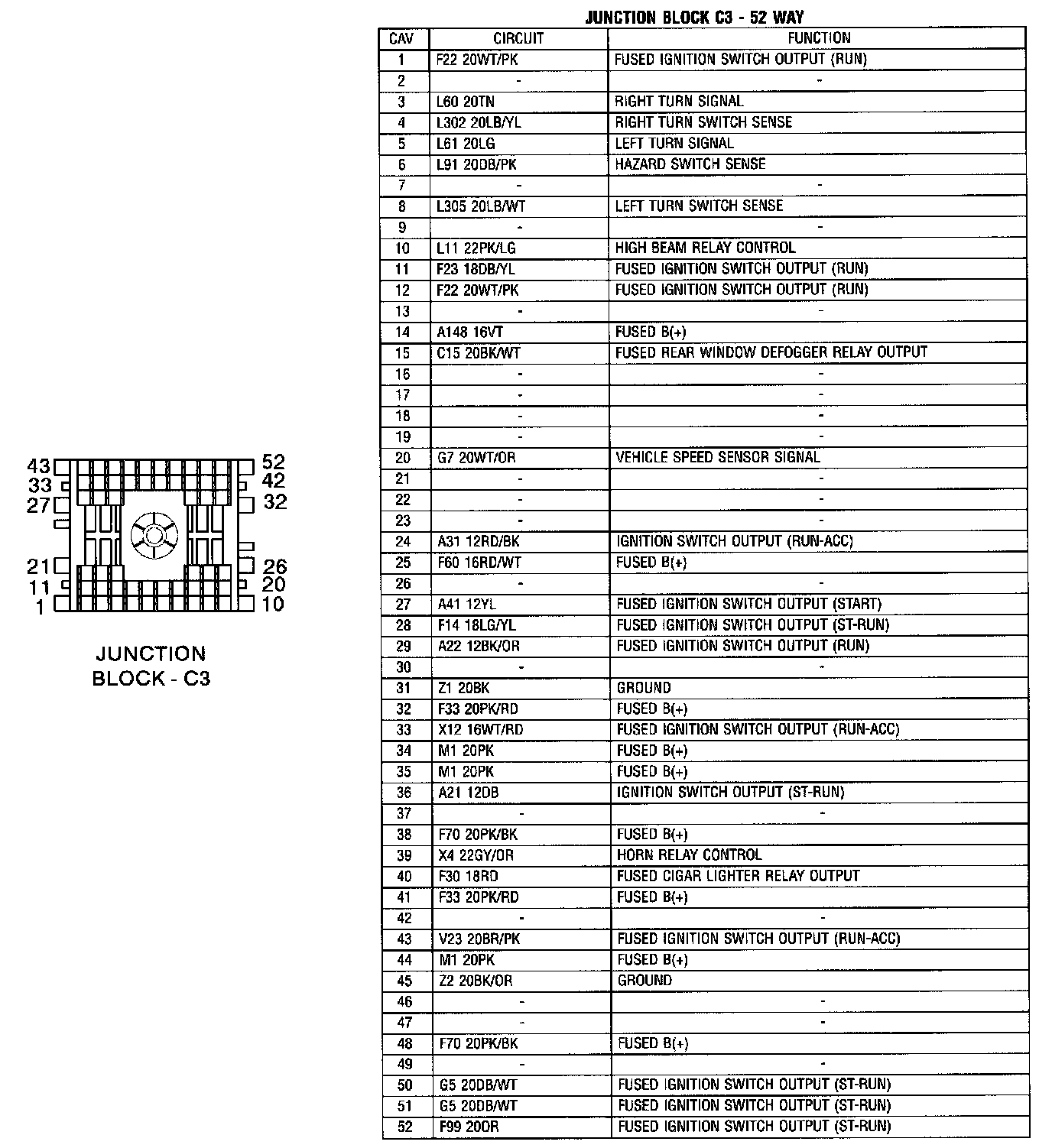

Junction Block - C3

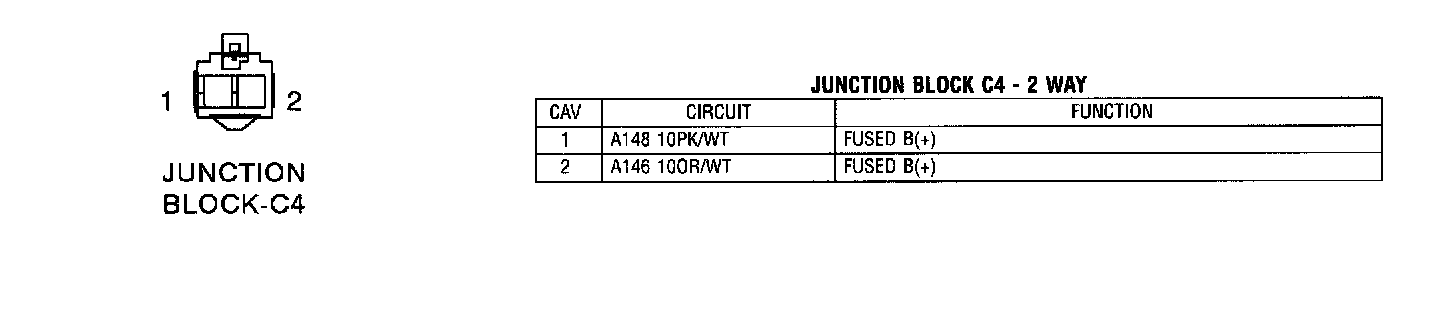

Junction Block - C4

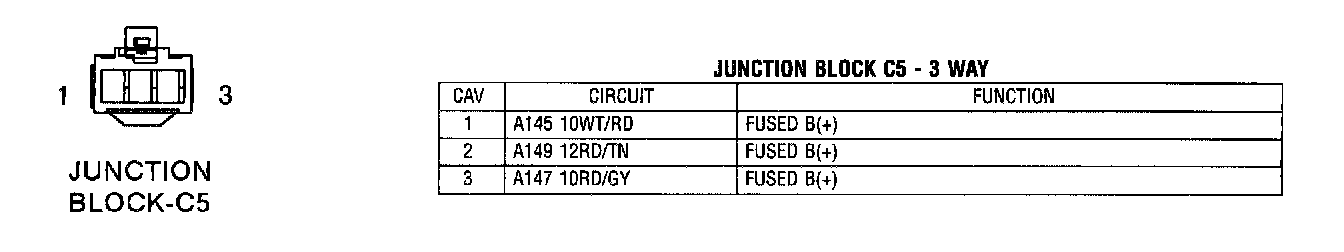

Junction Block - C5
