Door Module: Service and Repair

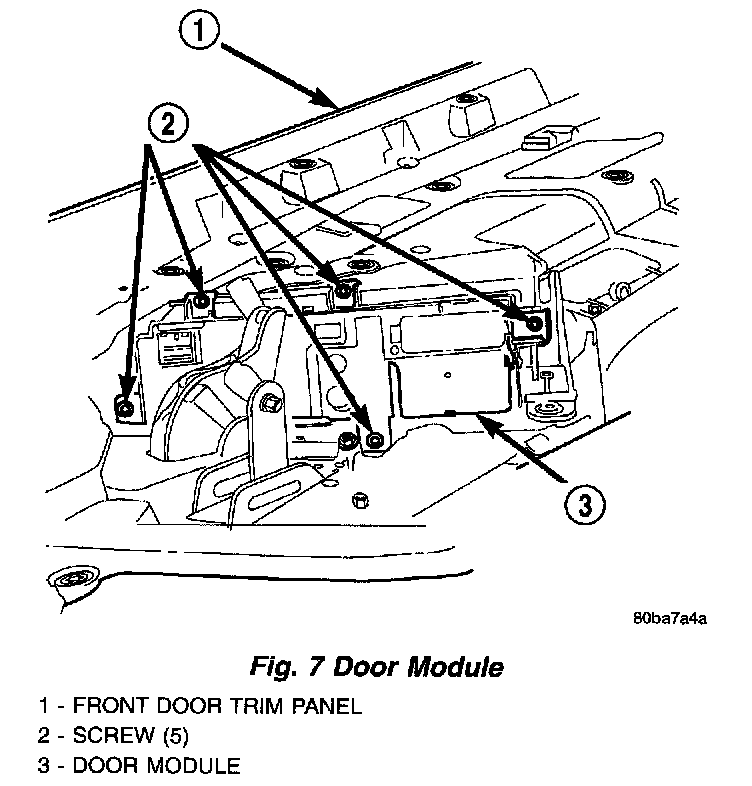

Fig.7 Door Module:

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the trim panel from the front door.
3. Remove the five screws that secure the door module to the back of the front door trim panel.
4. Remove the door module from the front door trim panel.

INSTALLATION
1. Position the door module to the front door trim panel.
2. Install and tighten the five screws that secure the door module to the back of the front door trim panel. Tighten the screws to (2.2 Nm 20 in. lbs).
3. Install the trim panel onto the front door.
4. Reconnect the battery negative cable.
