Jeep
>>
1999
>>
Wrangler L4-2.5L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Switch
Ignition Switch

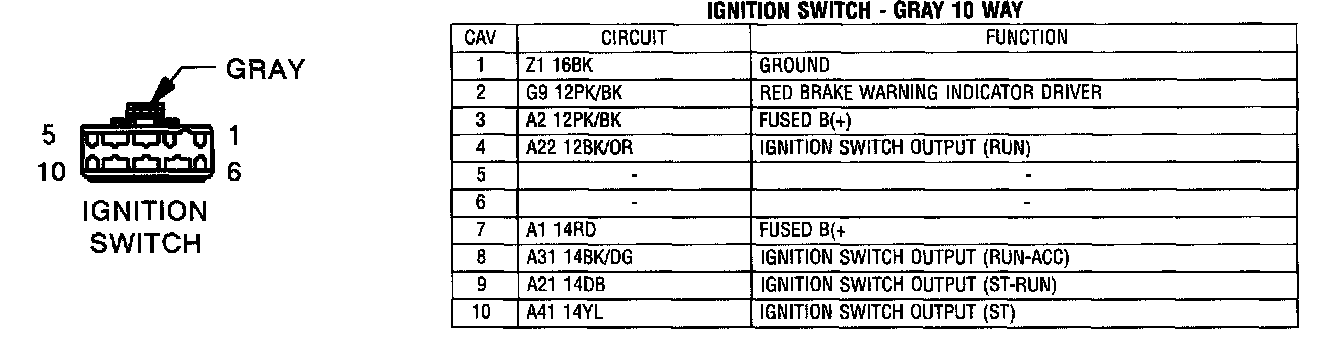

Ignition Switch Gray 10 Way:
