Automatic Transmission/Transaxle

Hydraulic Flow In Park/Neutral:

Hydraulic Flow In D-First Gear:

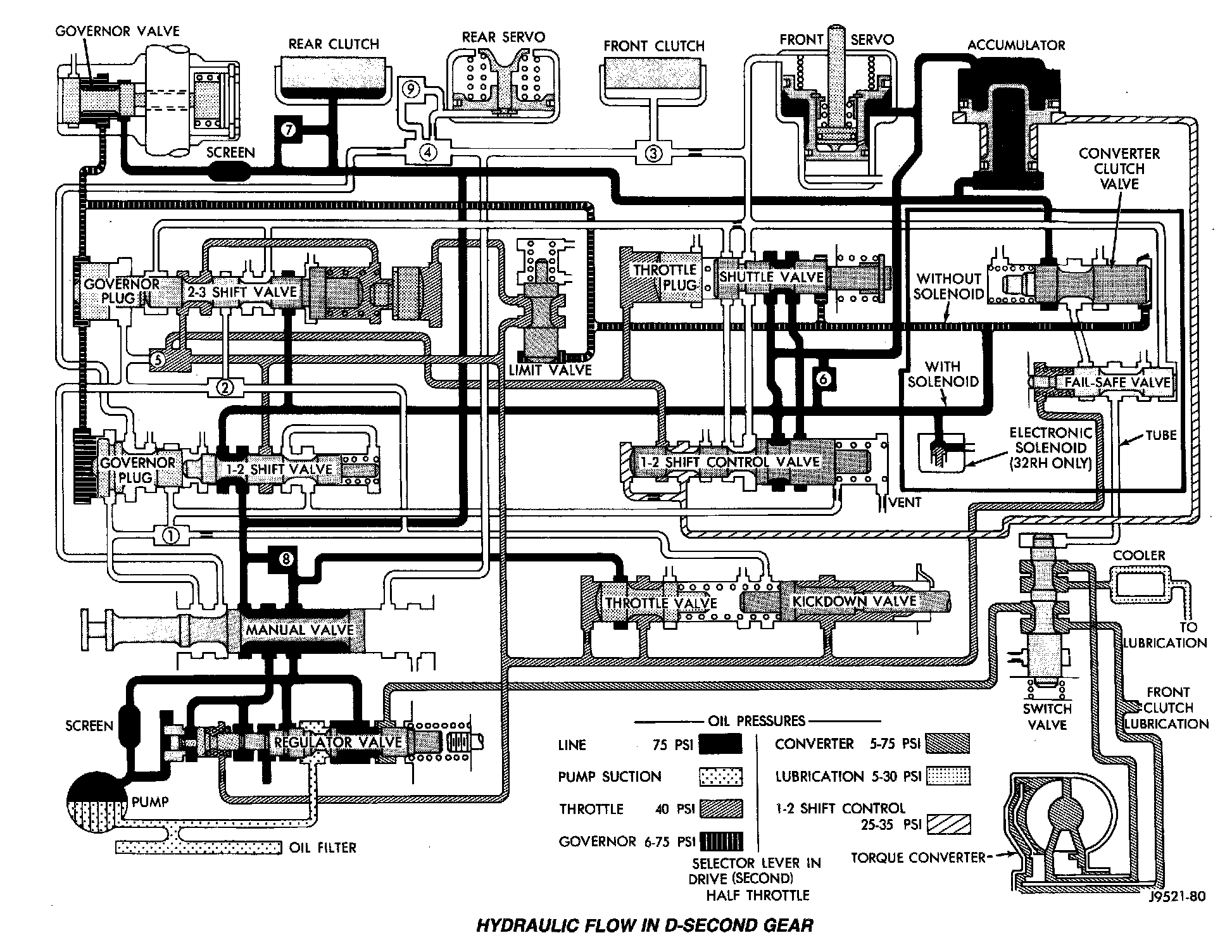

Hydraulic Flow In D-Second Gear:

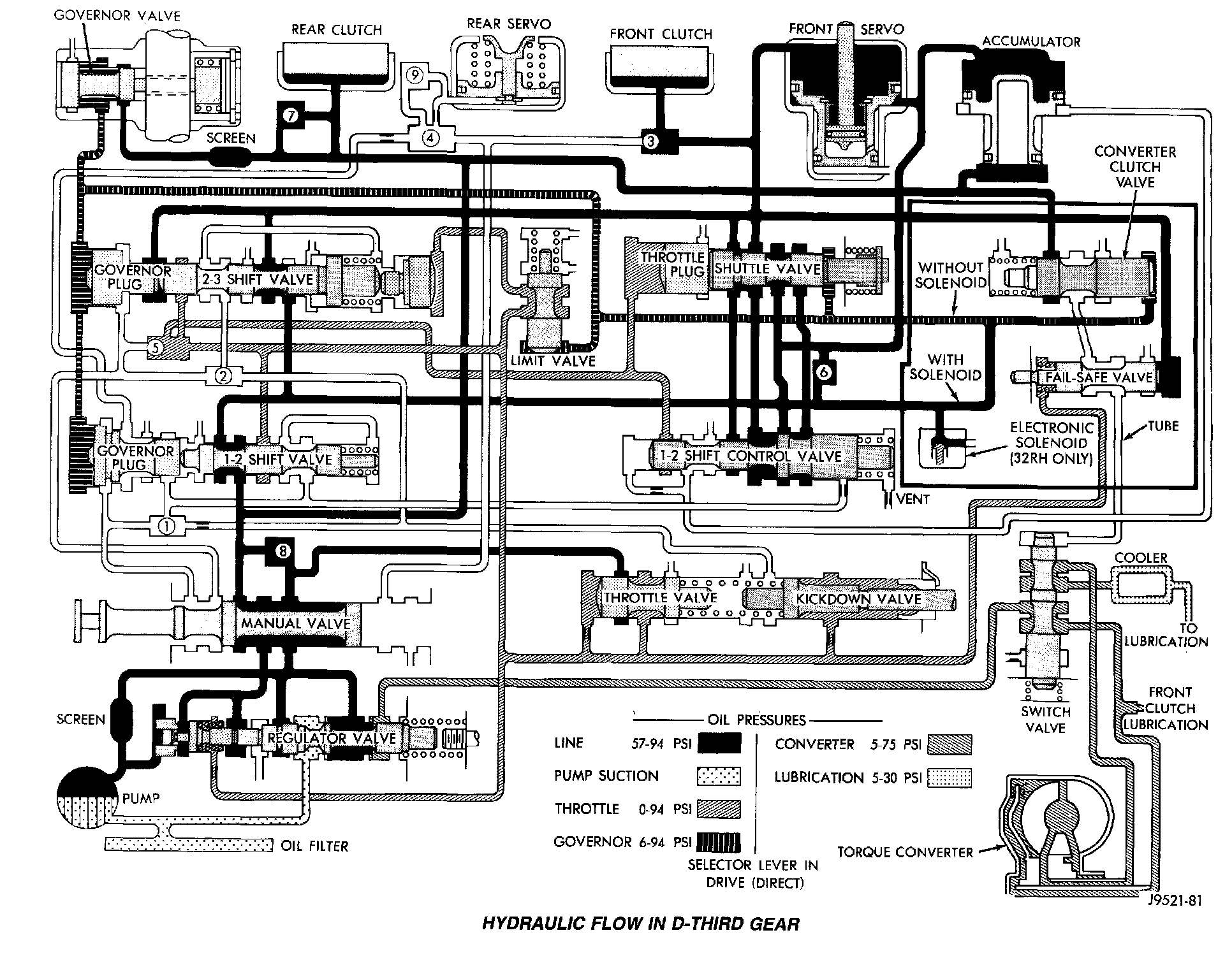

Hydraulic Flow In D-Third Gear:

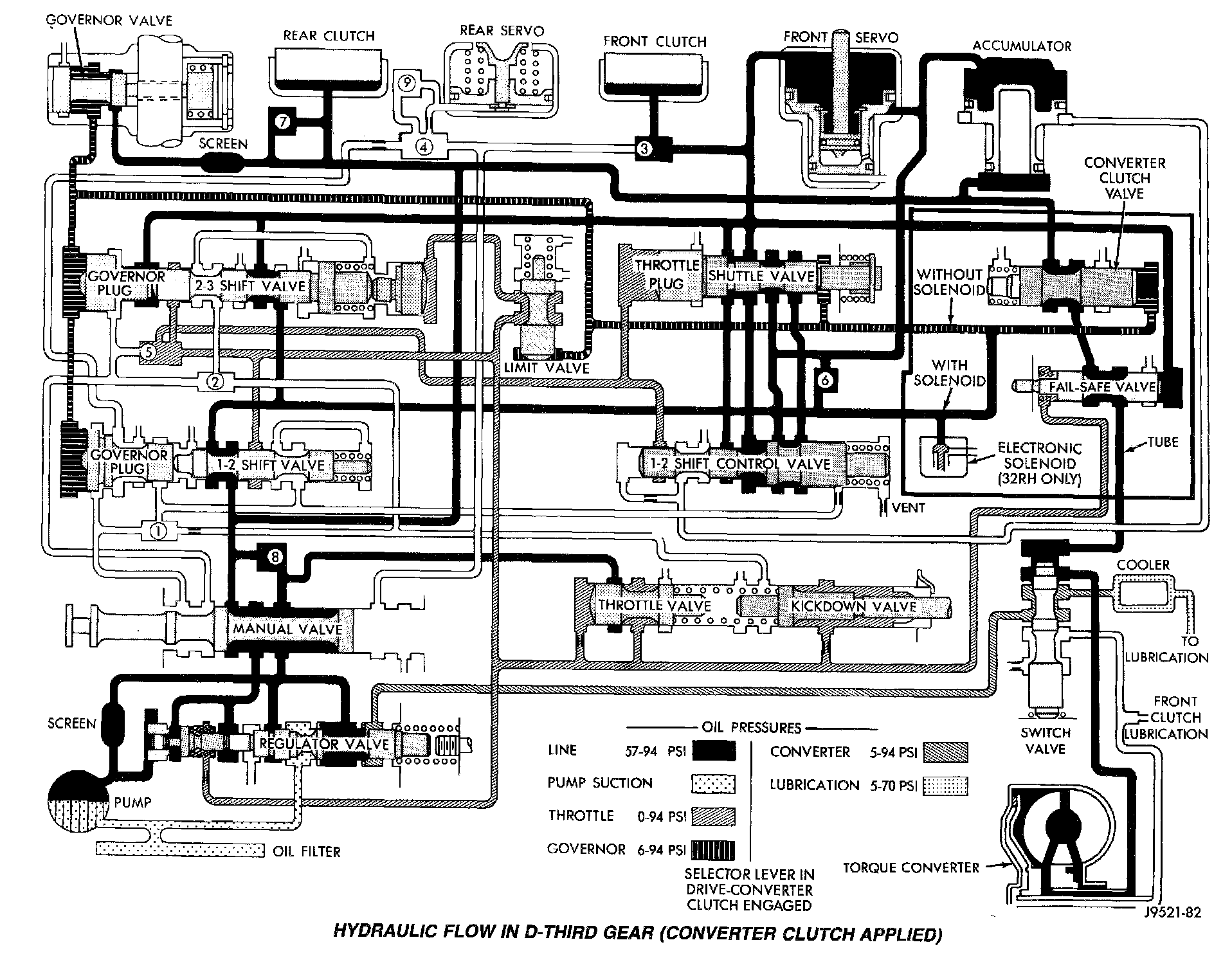

Hydraulic Flow In D-Third Gear (Converter Clutch Applied):

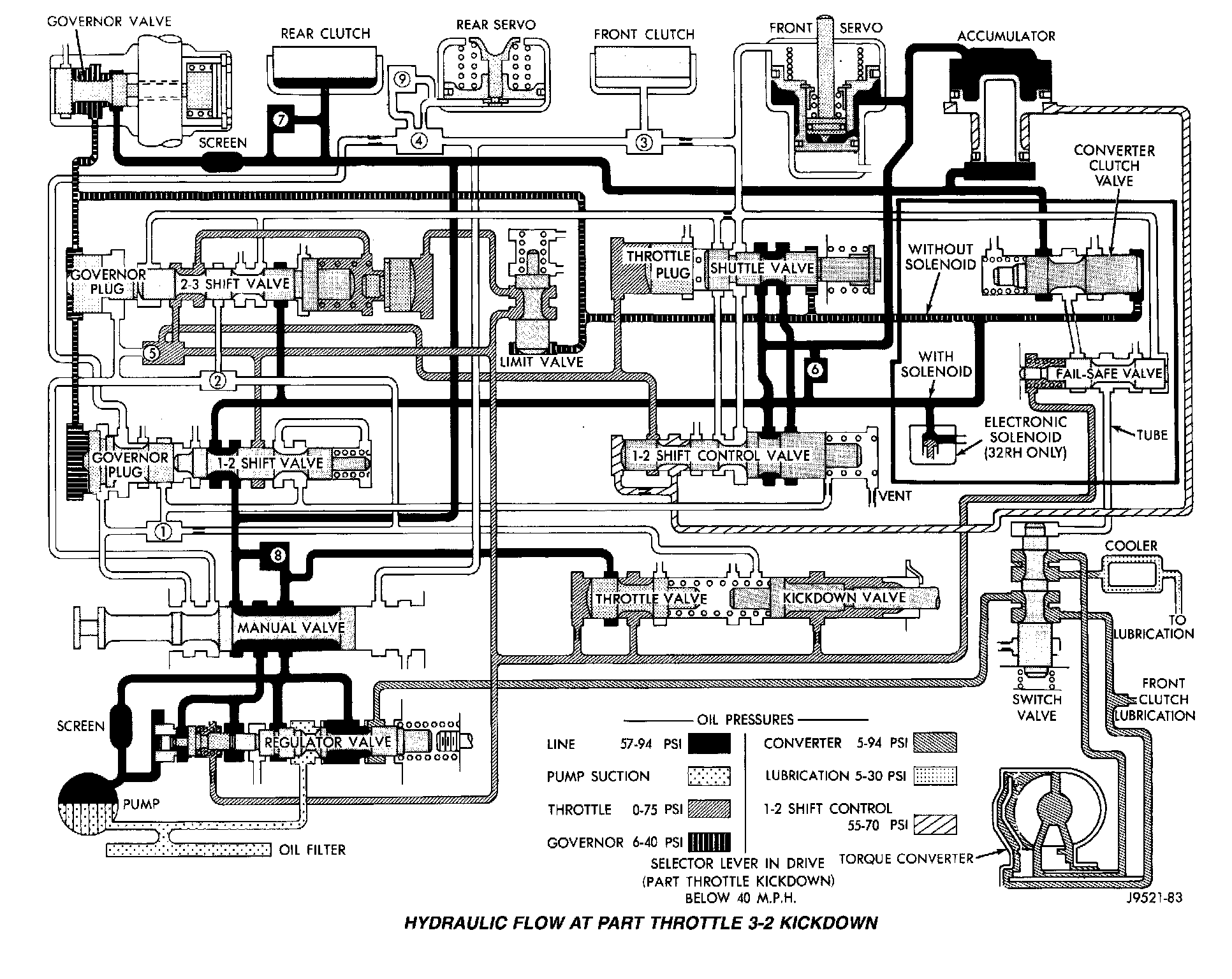

Hydraulic Flow At Part Throttle 3-2 Kickdown:

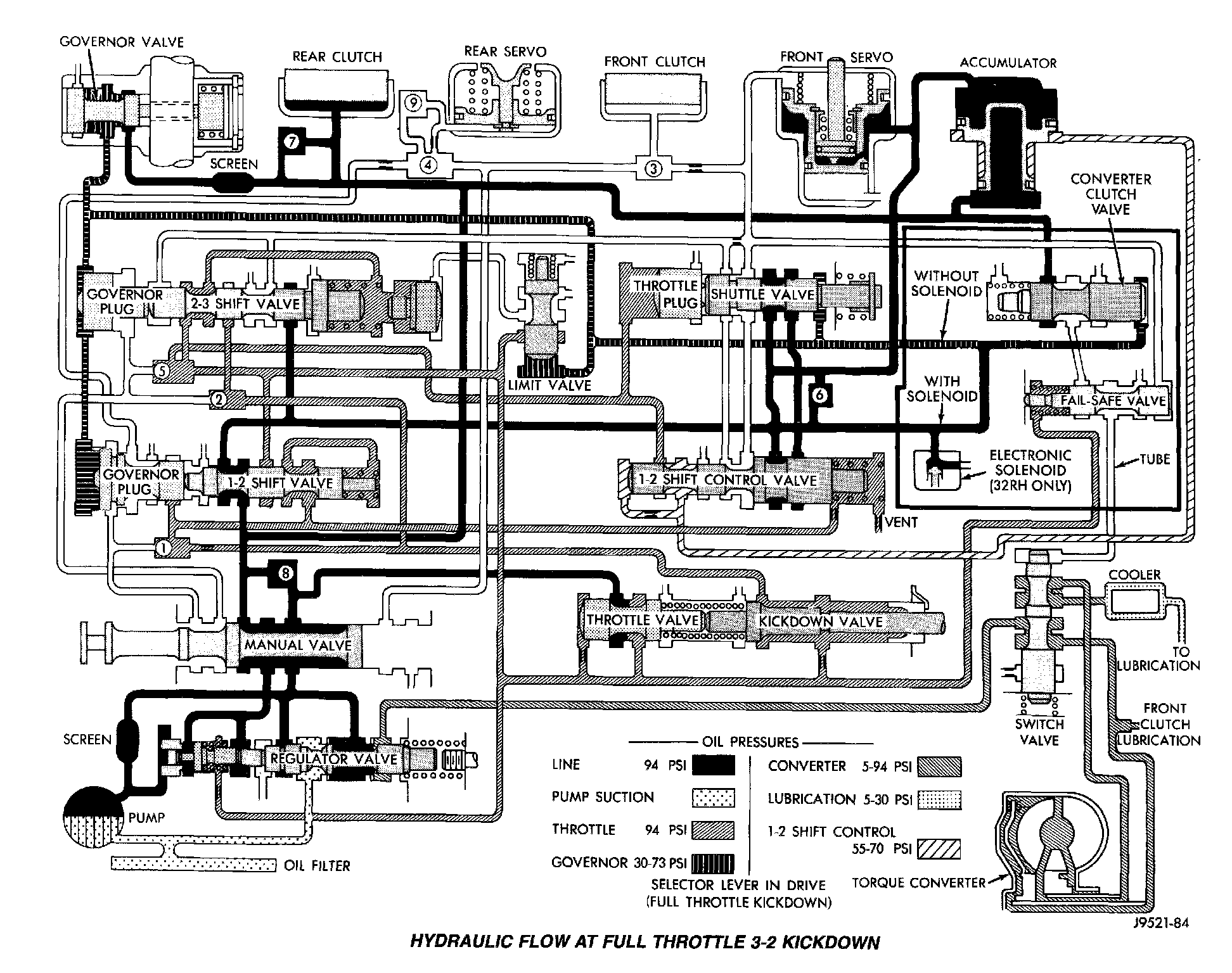

Hydraulic Flow At Full Throttle 3-2 Kickdown:

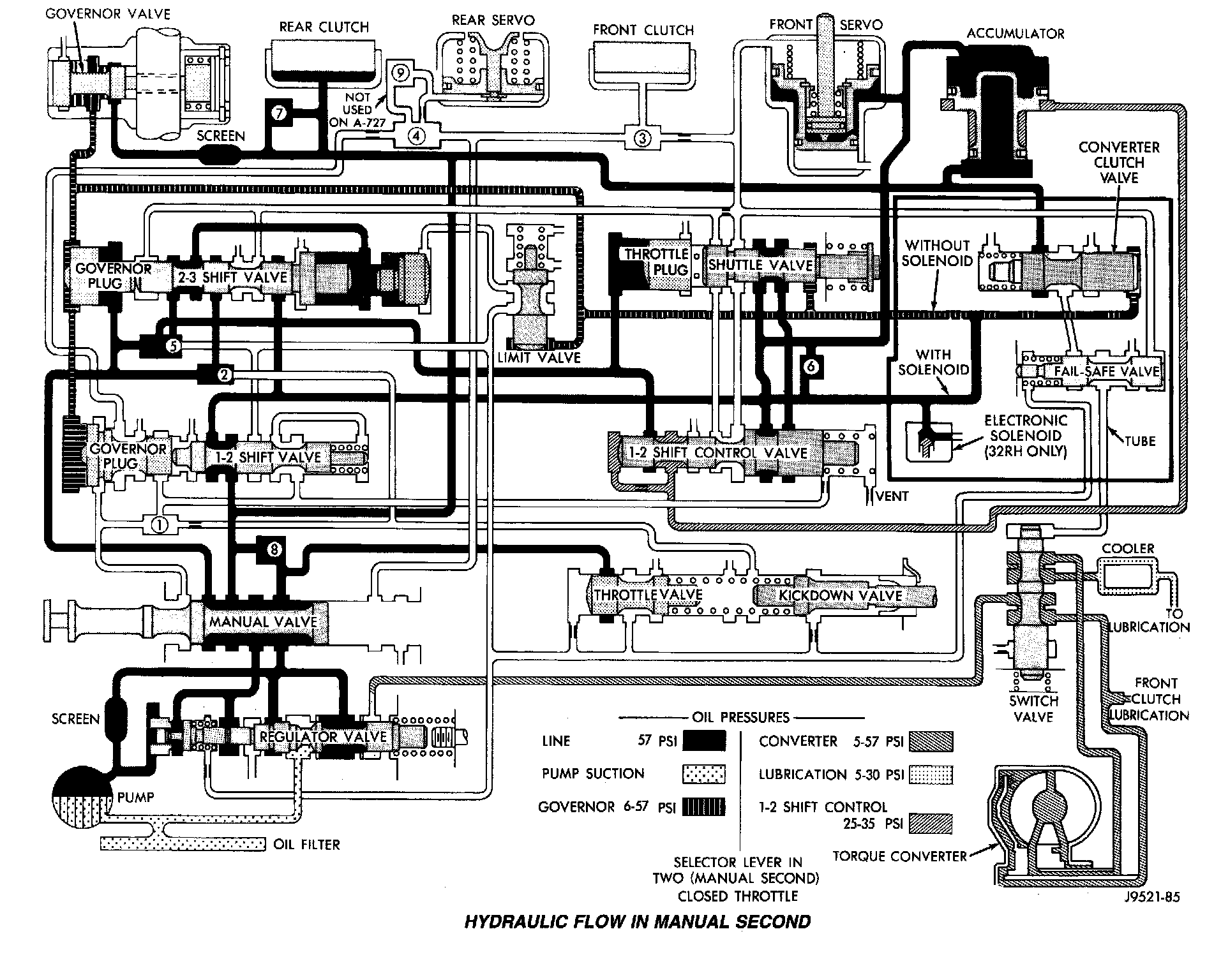

Hydraulic Flow In Manual Second:

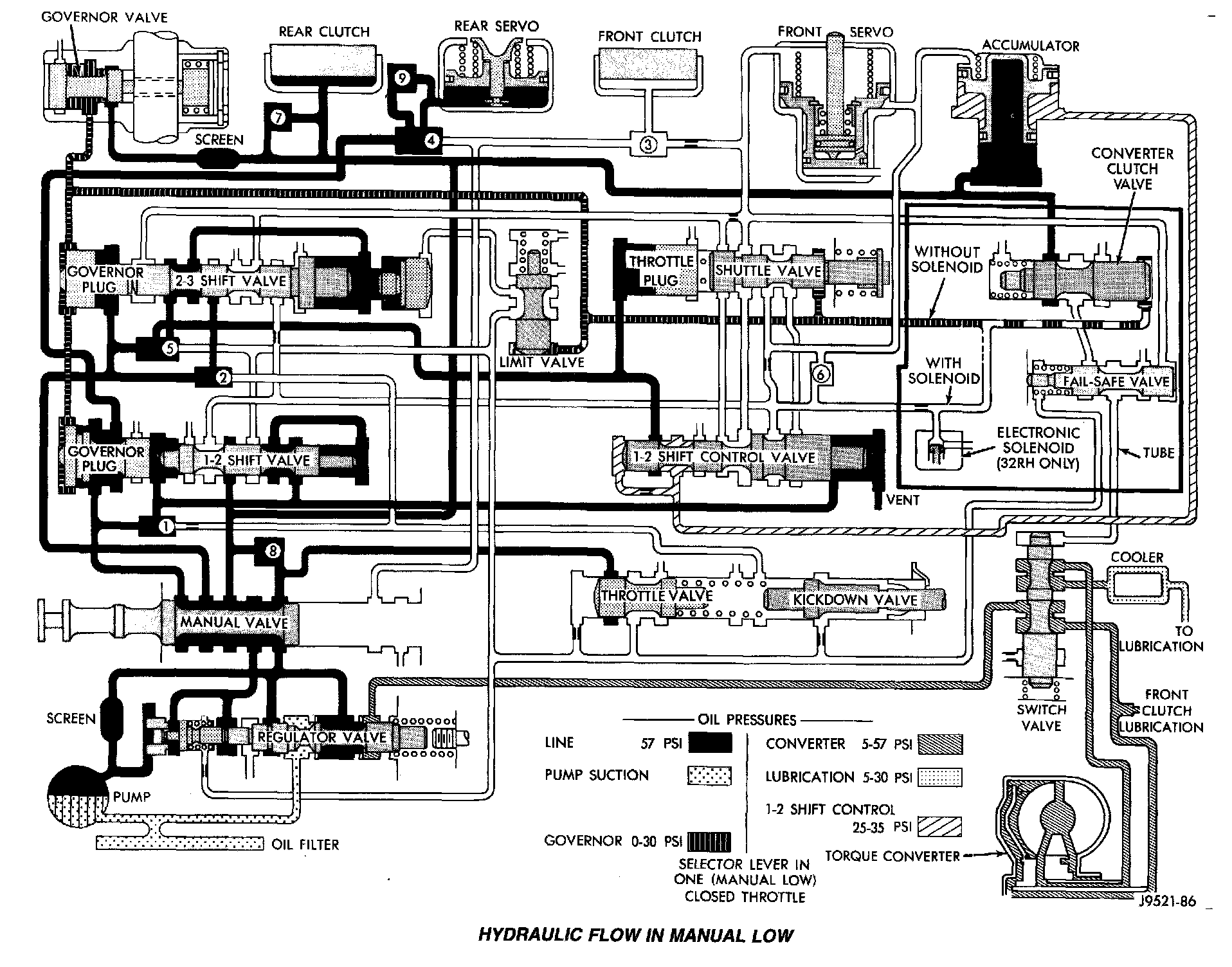

Hydraulic Flow In Manual Low:

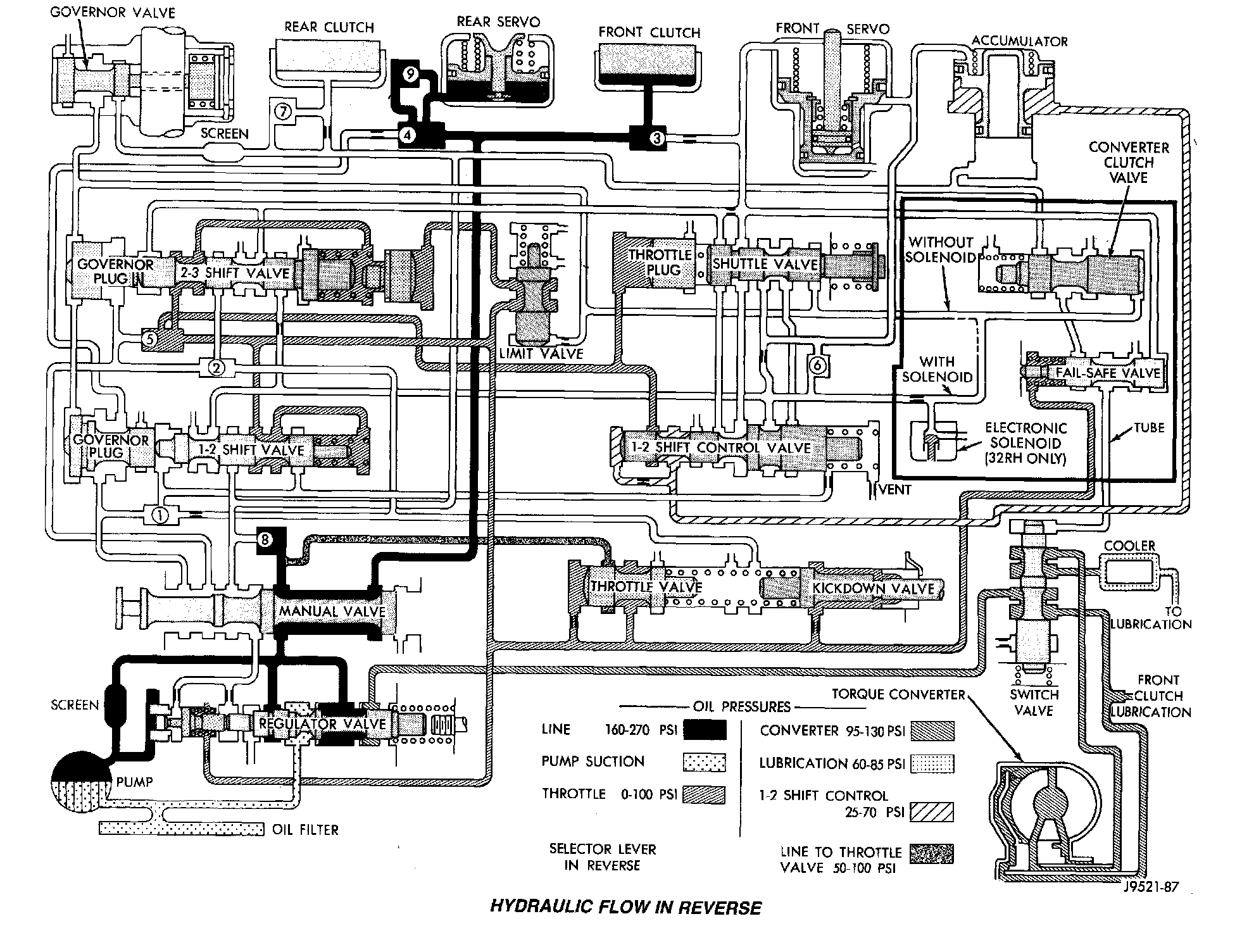

Hydraulic Flow In Reverse:

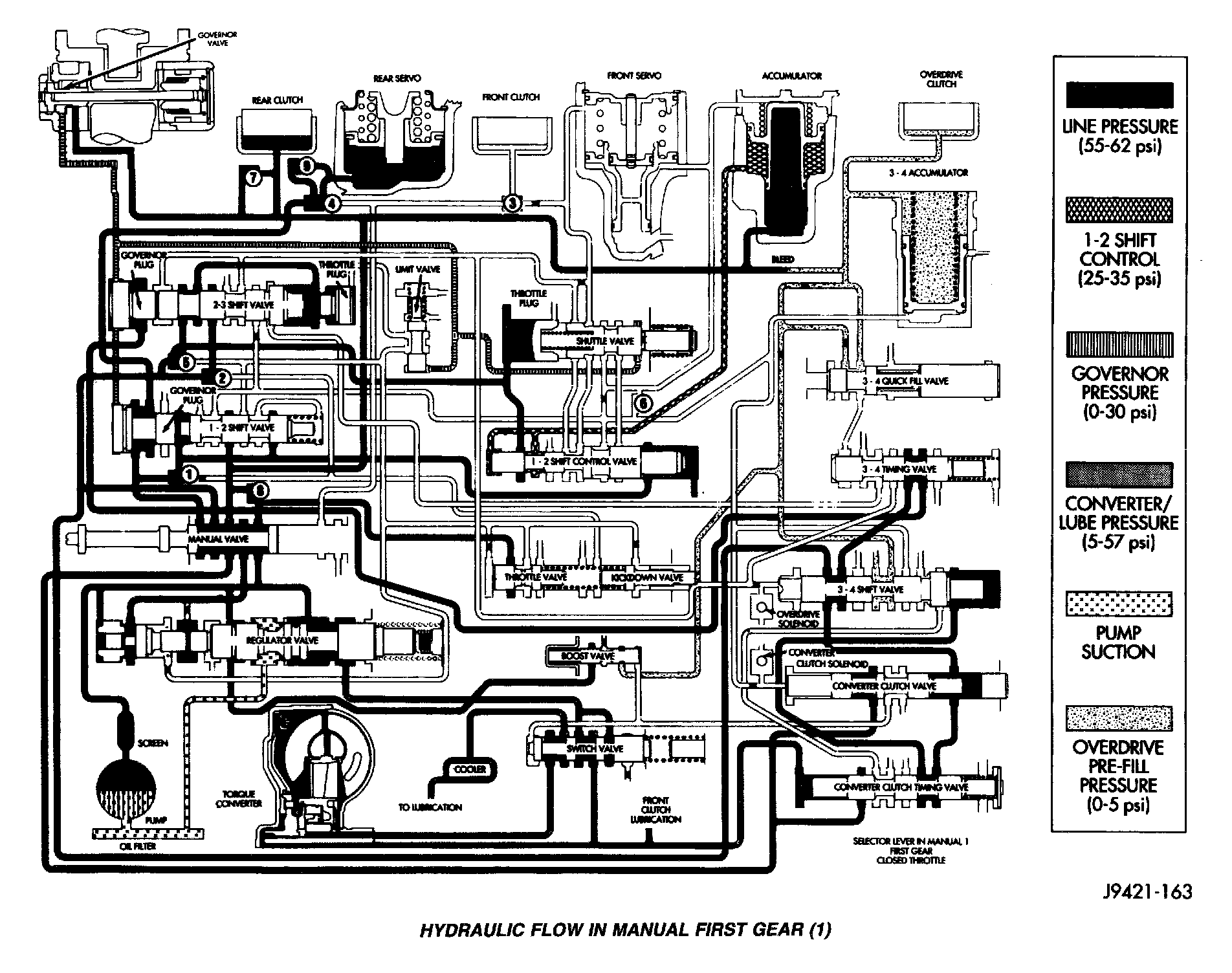

Hydraulic Flow In Manual First Gear - Part 1 Of 2:

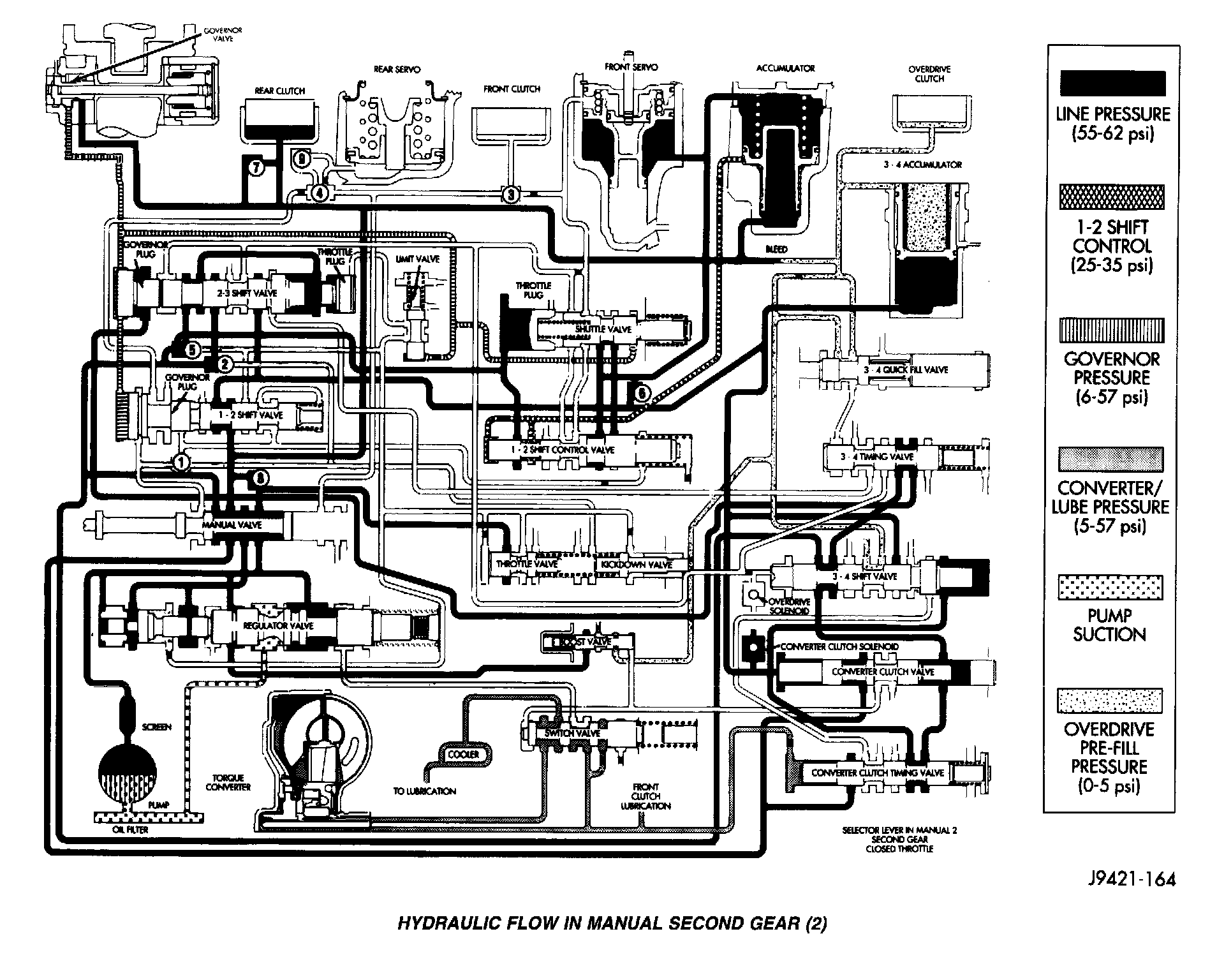

Hydraulic Flow In Manual Second Gear - Part 2 Of 2:

SCHEMATICS AND DIAGRAMS
