Blower Motor Switch: Service and Repair

WARNING: ON VEHICLES EQUIPPED WITH AIR-BAGS, REFER TO AIRBAG AND SEAT BELTS/AIR BAGS BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIR-BAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Using a trim stick or another suitable wide flat-bladed tool, gently pry the blower motor switch knob off of the switch stem from the front of the heater-A/C control.
3. Remove the heater-A/C control from the instrument panel. See Heater-A/C Control for the procedures.

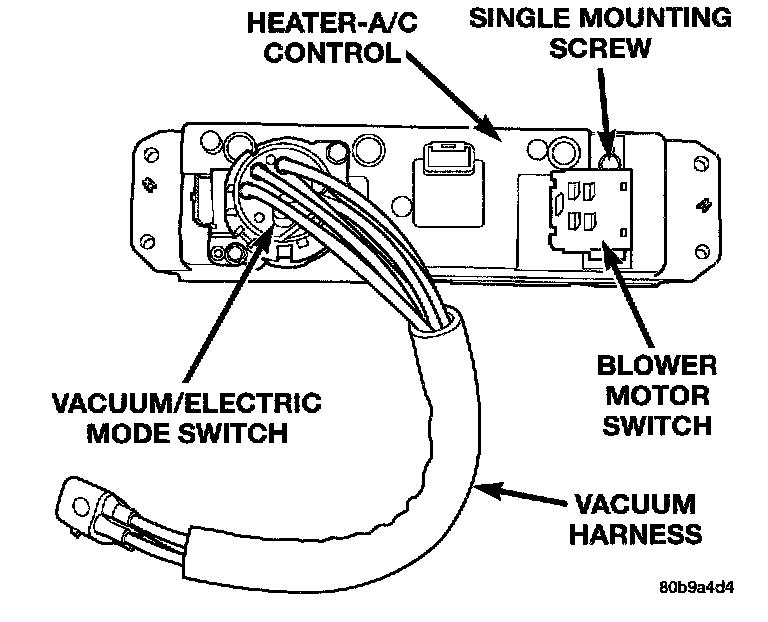

Blower Motor Switch Remove/Install:

4. Remove the screw that secures the blower motor switch to the rear of the heater-A/C control.
5. Remove the blower motor switch from the rear of the heater-A/C control.

INSTALLATION
1. Reverse the removal procedures to install. Tighten the heater-A/C control and switch mounting screws to 2.2 Nm (20 in. lbs.).
