How to Read Wiring Diagrams

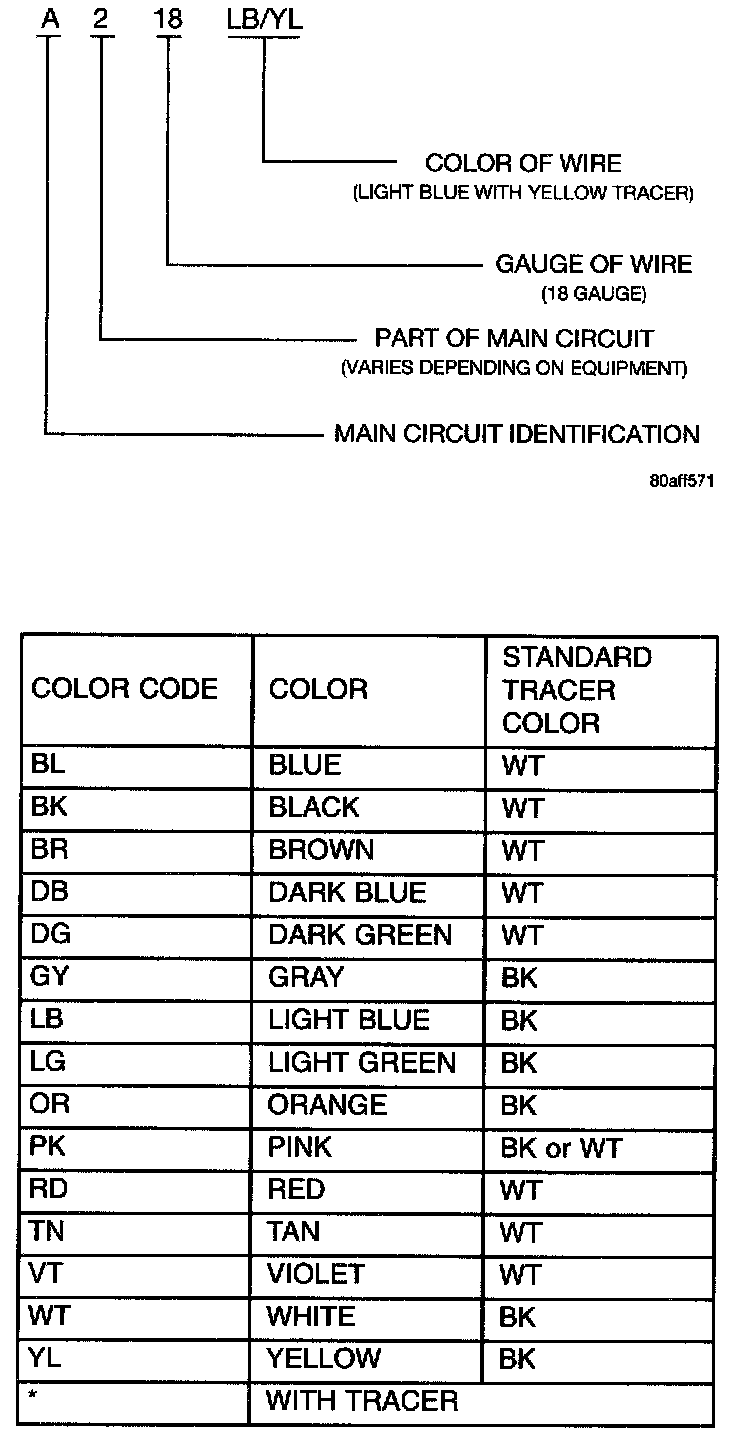

Circuit Identification And Color Code:




Each wire shown in the diagrams contains a code which identifies the main circuit, part of the main circuit, gage of wire, and color
