Checking Idle Air Control Motor
Tests 725 - 728:

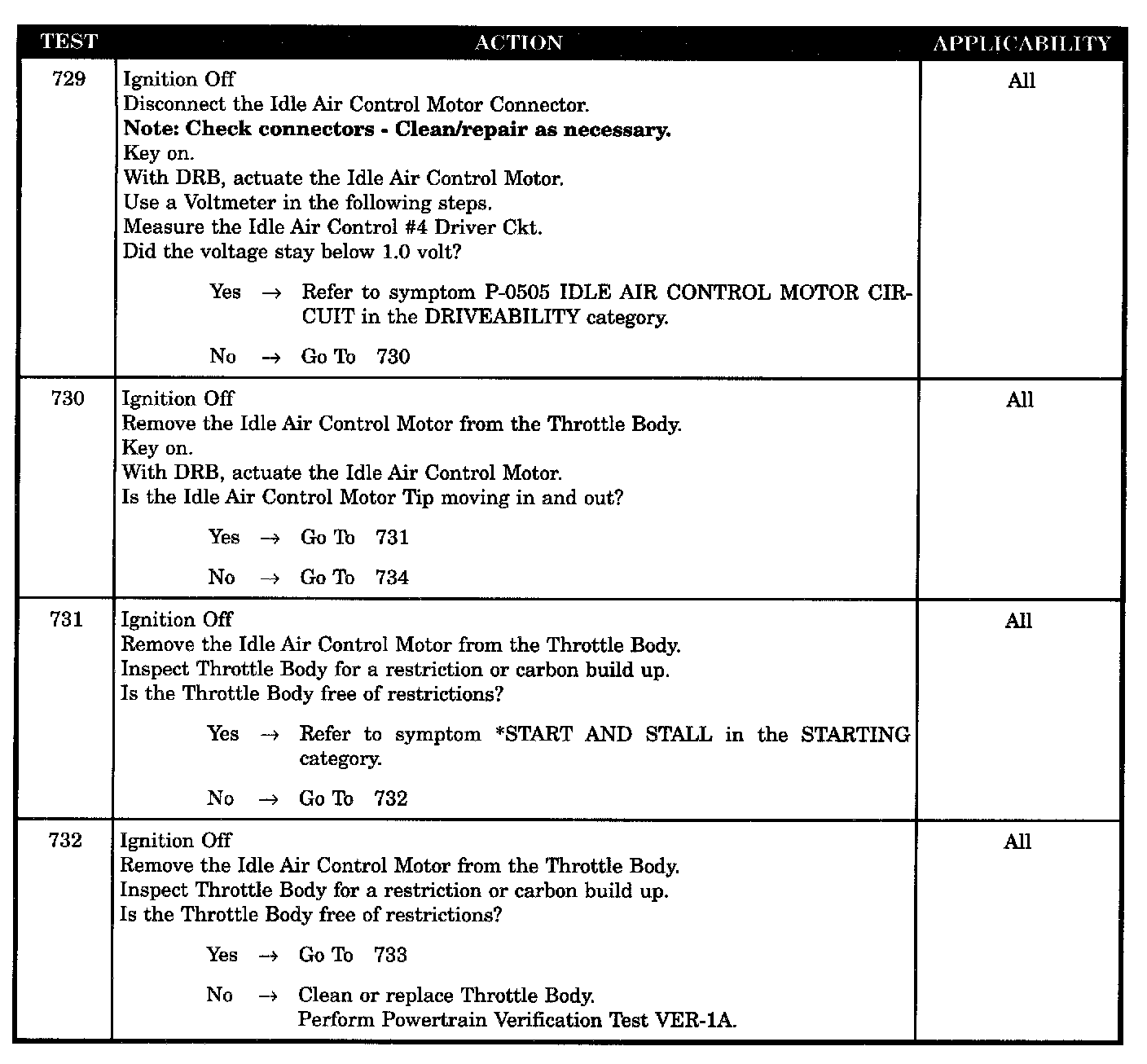

Tests 729 - 732:

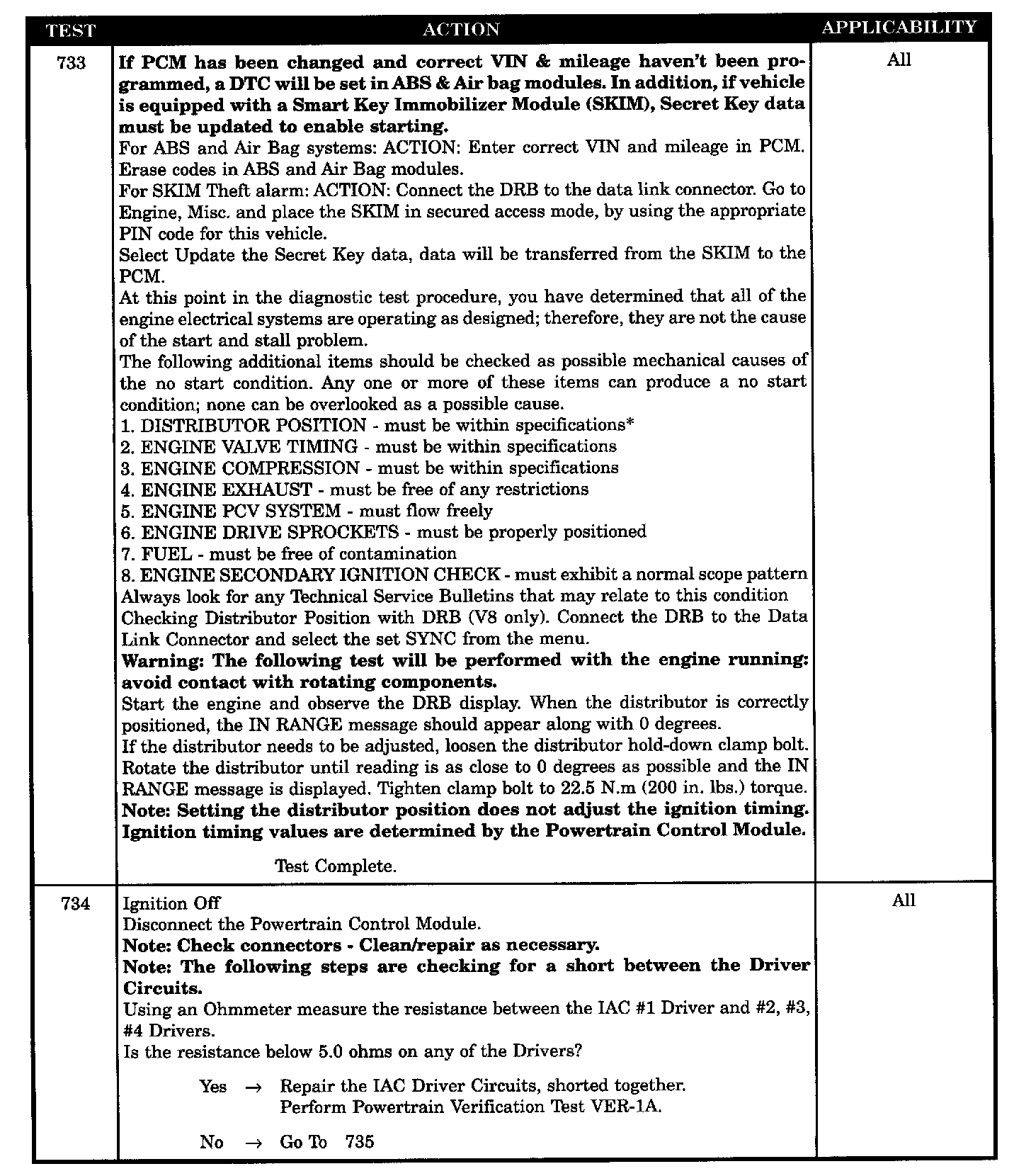

Tests 733 - 734:

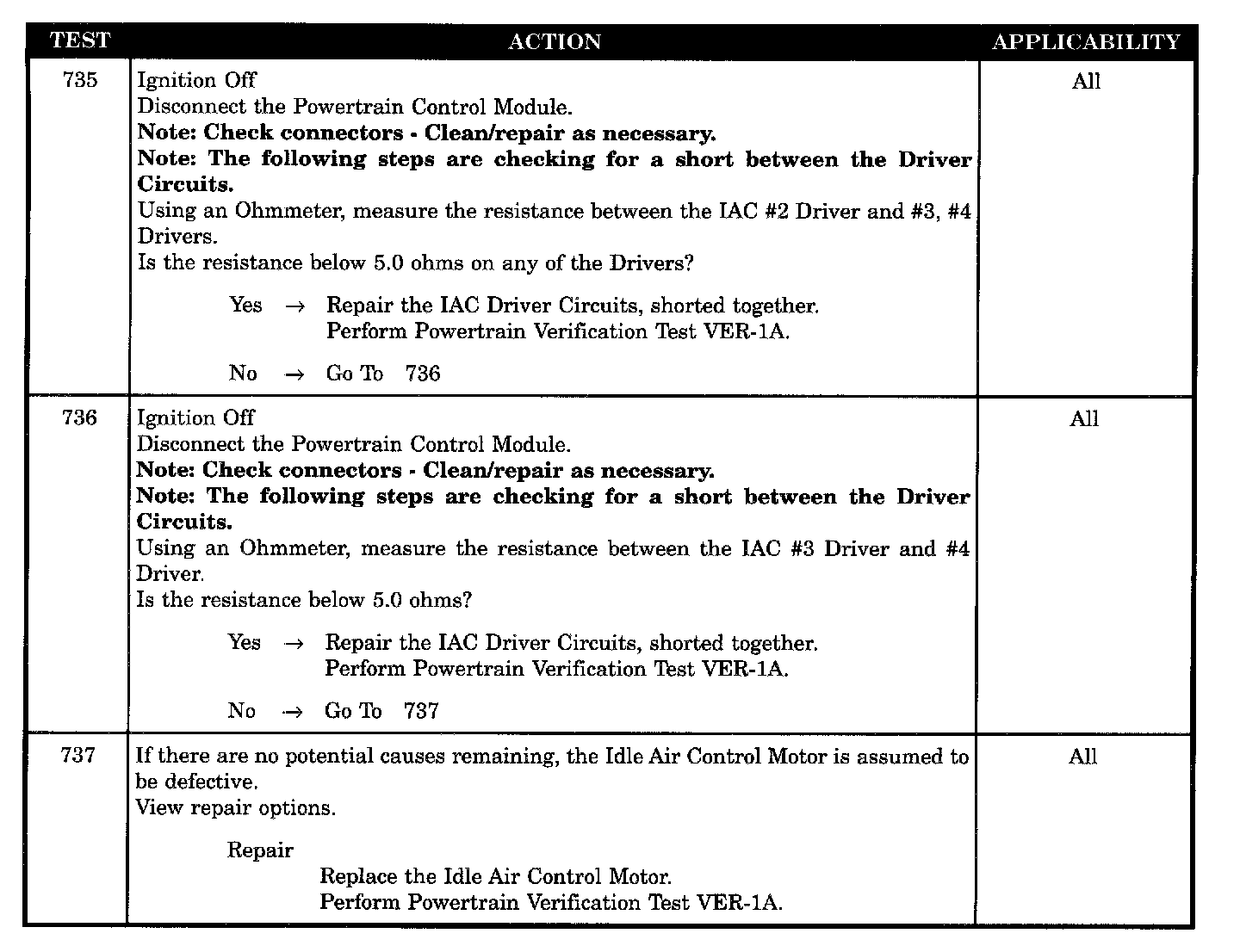

Tests 735 - 737:
SYMPTOM * CHECKING IAC MOTOR
POSSIBLE CAUSES -
IAC # 1 driver circuit shorted to # 2, # 3, or # 4
-
IAC # 2 driver circuit shorted to # 3 or # 4
-
IAC # 3 driver circuit shorted to # 4
-
Idle air control motor defective
-
Throttle body restricted
