Window Regulator: Service and Repair

FULL DOOR WINDOW REGULATOR

REMOVAL
1. Remove door trim panel.
2. Remove door glass.

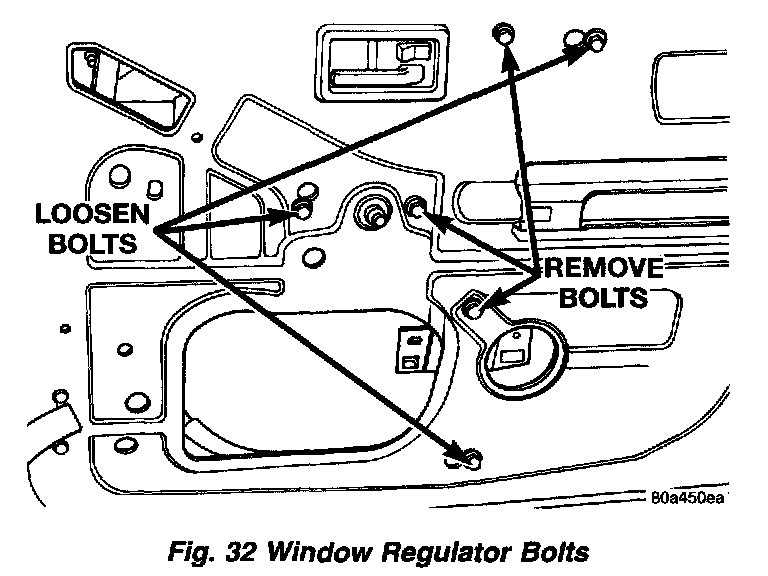

Window Regulator Bolts:

3. Loosen the bolts in the slotted holes.

INSTALLATION
1. Position the regulator in the door.
2. Align regulator bolts into slotted holes.
3. Install bolts attaching regulator to the inner door panel.
4. Tighten the bolts in the slotted holes.
5. Install door glass.
6. Install door trim panel.
