Fuel Filter: Locations

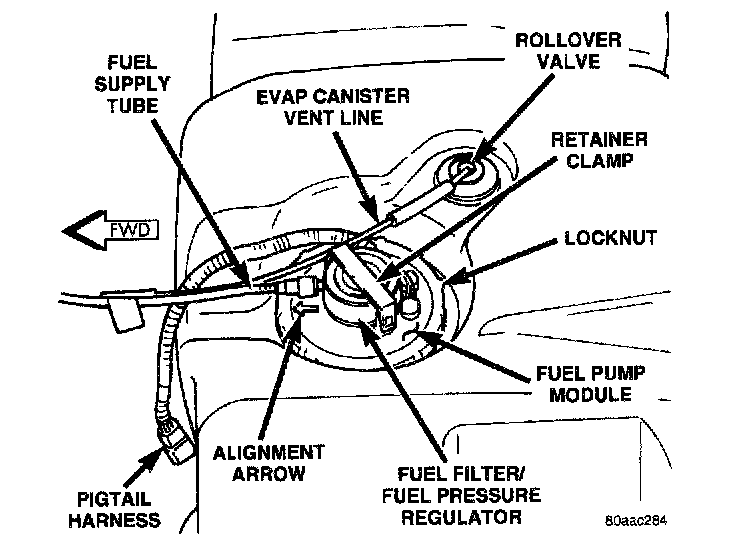

The combination fuel filter and fuel pressure regulator is located on the top of fuel pump module.

The check valve is located at the outlet end of the electric fuel pump.

The fuel pump module is located on top of fuel tank.
