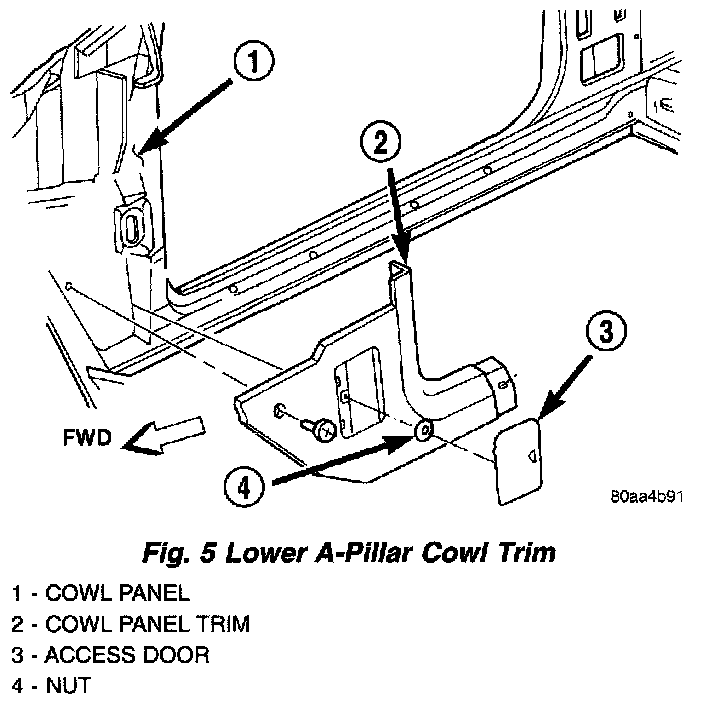

A-Pillar Lower Cowl Trim

Removal






1. Remove the inner scuff plate.
2. Remove the nut behind the fuse panel access door (Right side only).
3. Remove the fasteners attaching the lower A-pillar cowl trim to the A-pillar lower cowl.
4. Separate the lower A-pillar cowl trim from the A-pillar lower cowl.

Installation

1. Position the lower A-pillar cowl trim on the A-pillar lower cowl.
2. Install the screws attaching the lower A-pillar cowl trim to the A-pillar lower cowl.
3. Install the nut behind the fuse panel access door (Right side only).
4. Install the inner scuff plate.
