C-Pillar Trim

C-PILLAR TRIM

REMOVAL

1. Remove the inner scuff plate.
2. Remove the upper door opening trim.
3. Remove the upper quarter panel trim.
4. Remove the quarter panel trim extension.

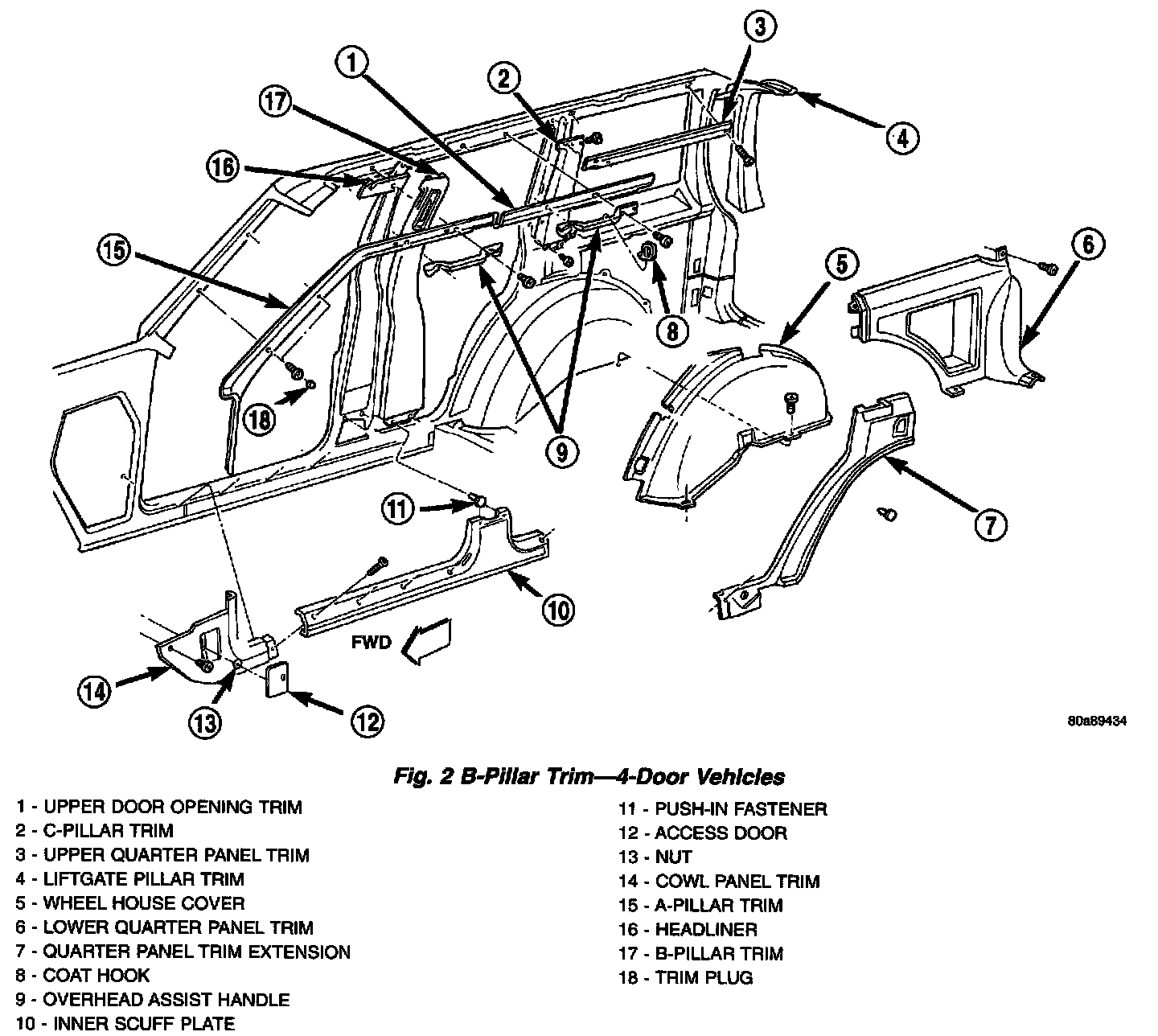

Fig. 2:

5. Remove the screws attaching the C-pillar trim to the C-pillar (Fig. 2).
6. Separate the C-pillar trim from the C-pillar.

INSTALLATION

1. Position the C-pillar trim on the C-pillar.
2. Install the screws attaching the C-pillar trim to the C-pillar.
3. Install the quarter panel trim extension.
4. Install the upper quarter panel trim.
5. Install the upper door opening trim.
6. Install the inner scuff plate.
