Headlamp Replacement

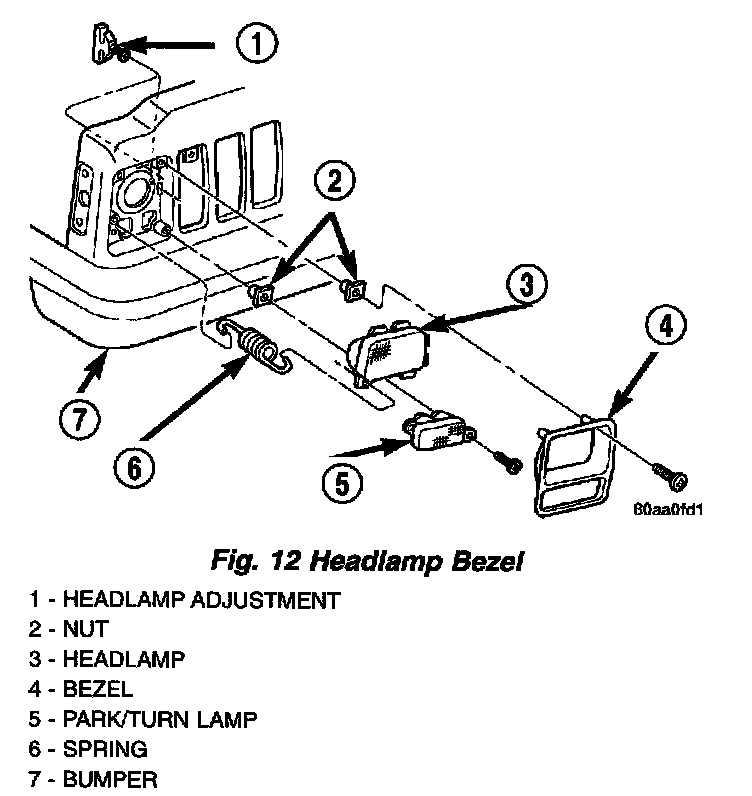

Fig.12 Headlamp Bezel:




REMOVAL
1. Remove the screws that secure the headlamp bezel to the grille opening panel.
2. Remove the screws that secure the sealed beam retaining ring to the headlamp seat.
3. Disconnect the headlamp and dash wire harness connector from the sealed beam.
4. Remove the sealed beam from the grille opening panel.

INSTALLATION
1. Position the sealed beam to the grille opening panel.
2. Reconnect the headlamp and dash wire harness connector to the sealed beam.
3. Position the sealed beam in the headlamp seat.
4. Position the retaining ring over the sealed beam and install the screws that secure it to the seat.
5. Position the headlamp bezel over the headlamp and install the screws that secure it to the grille opening panel.
