Marker Lamp: Service and Repair

REMOVAL

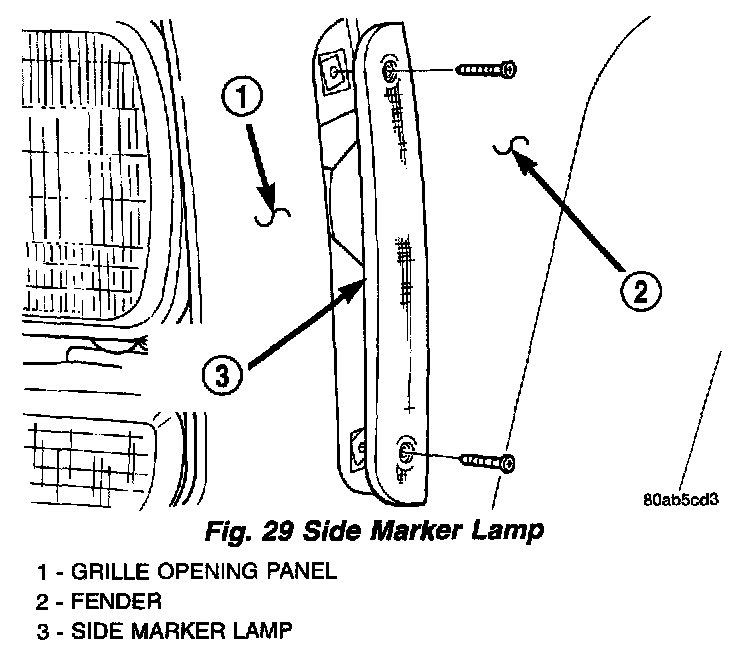

Fig.29 Side Marker Lamp:

1. Remove the screws that secure the side marker lamp unit to the side of the grille opening panel (Fig.29).
3. Remove the side marker lamp unit from the grille opening panel.

INSTALLATION
1. Position the side marker lamp unit to the grille opening panel.
2. Insert the socket into the back of the side marker lamp unit and rotate the socket clockwise.
3. Position the side marker lamp unit onto the side of the grille opening panel.
4. Install the screws that secure the side marker lamp unit to the grille opening panel.
