Fuel Filter: Description and Operation

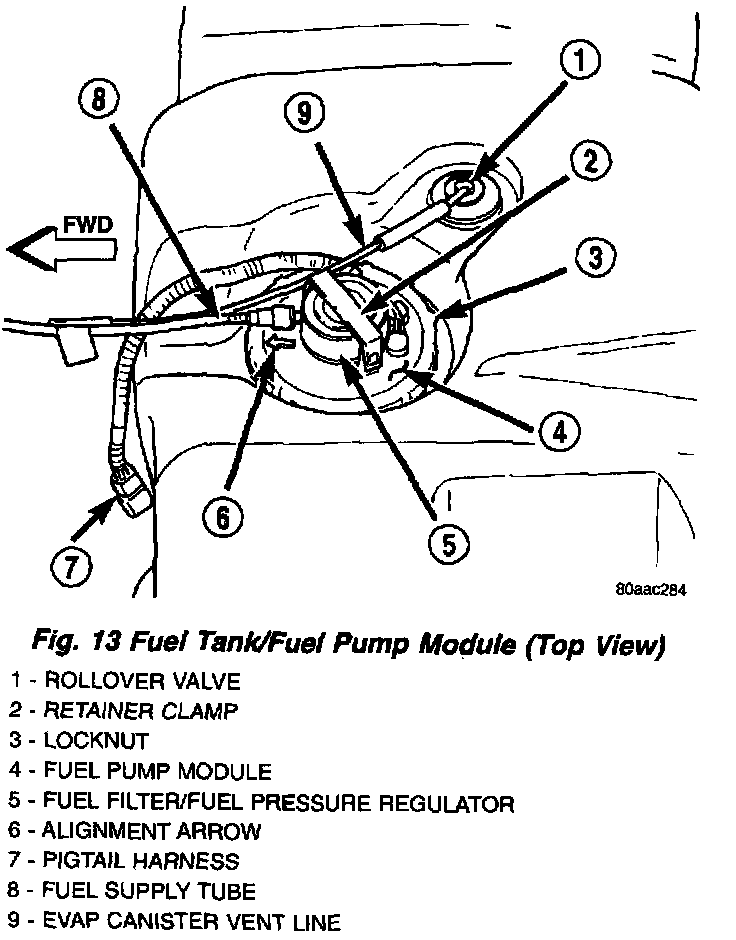

Fig.13 Fuel Tank/Fuel Pump Module (Top View):

The combination fuel filter and fuel pressure regulator is located on the top of fuel pump module (Fig.13).

A combination fuel filter and fuel pressure regulator is used on all engines. A separate frame mounted fuel filter is not used with any engine.
