Power Mirror Switch: Service and Repair

REMOVAL
This procedure covers removal of the stand-alone type power mirror switch. Vehicles with power windows and power locks have a power mirror switch which is integral to the Driver Door Module (DDM). (Refer to POWER LOCK SYSTEM/DOOR MODULE - REMOVAL).
1. Disconnect and isolate the battery negative cable.

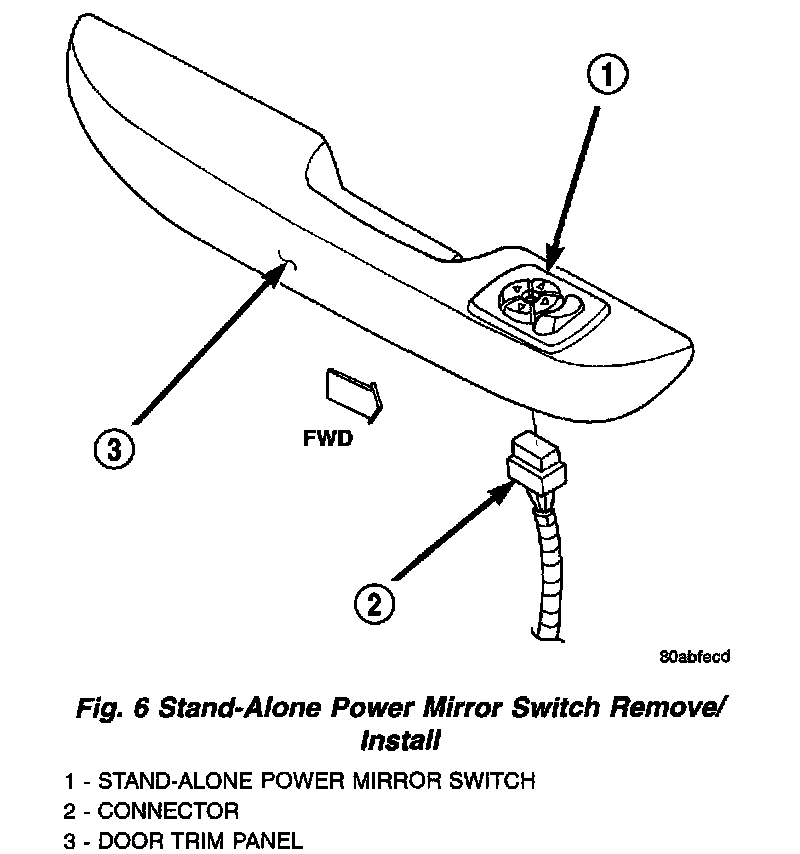

Fig.6 Stand-Alone Power Mirror Switch Remove/Install:

2. Using a trim stick or another suitable wide flat-bladed tool, gently pry around the perimeter edge of the power mirror switch to release the snap clips that secure the switch to the trim panel.
3. Pull the power mirror switch away from the trim panel far enough to access the door wire harness connector for the switch.
4. Disconnect the door wire harness connector for the power mirror switch from the switch connector receptacle.
5. Remove the power mirror switch from the trim panel.

INSTALLATION
This procedure covers installation of the stand-alone type power mirror switch. Vehicles with power windows and power locks have a power mirror switch which is integral to the Driver Door Module (DDM). (Refer to POWER LOCK SYSTEM/DOOR MODULE - INSTALLATION).
1. Position the stand-alone power mirror switch to the door trim panel.
2. Reconnect the door wire harness for the power mirror switch to the switch connector receptacle.
3. Press the power mirror switch down firmly and evenly into the trim panel opening until the clips that secure the switch snap into place.
4. Reconnect the battery negative cable.
