Door Switch
Door Switch

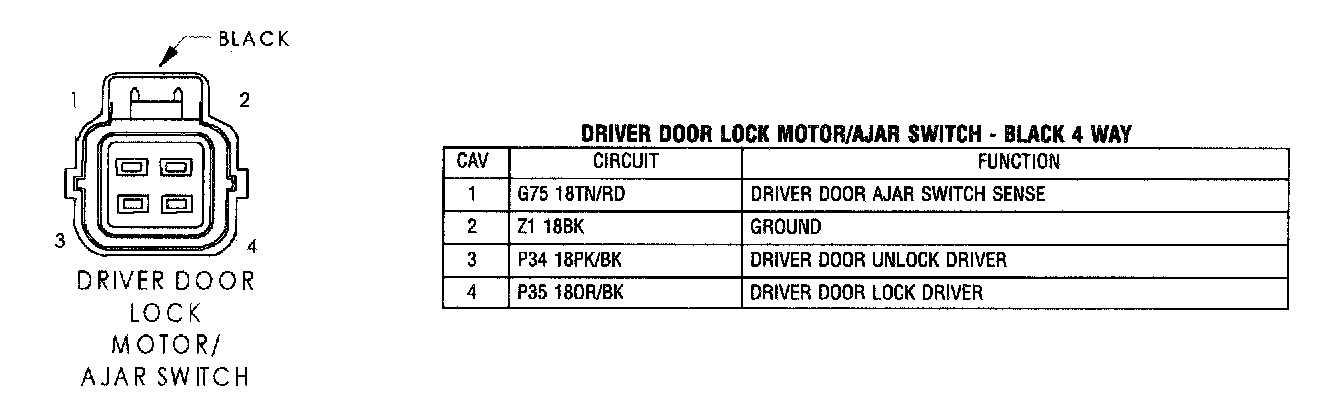

Driver Door Lock Motor/Ajar Switch:
Hood Ajar Switch:

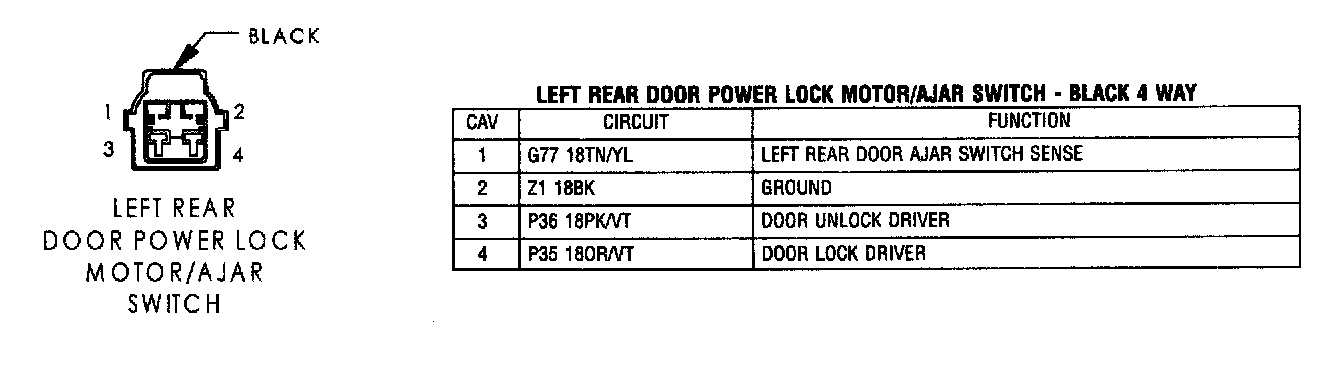

Left Rear Door Power Lock Motor/Ajar Switch:

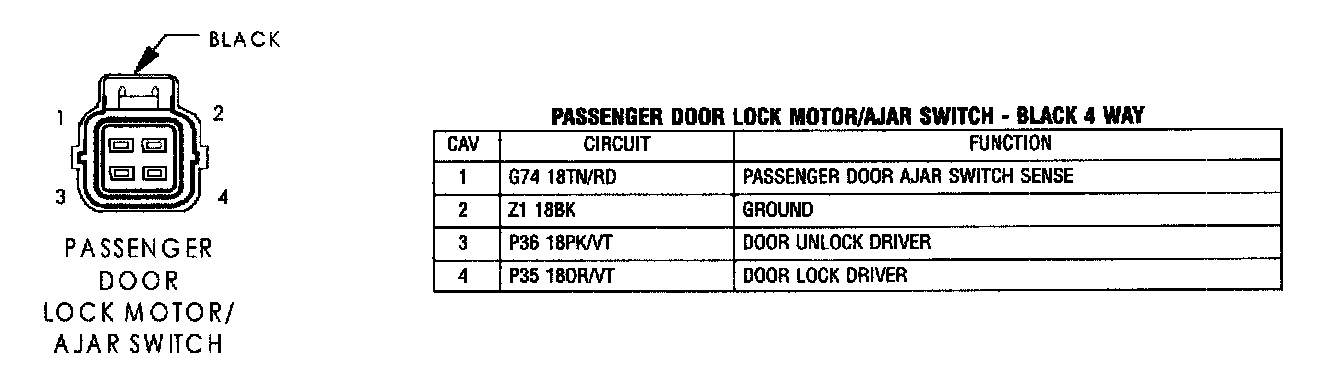

Passenger Door Lock Motor/Ajar Switch:

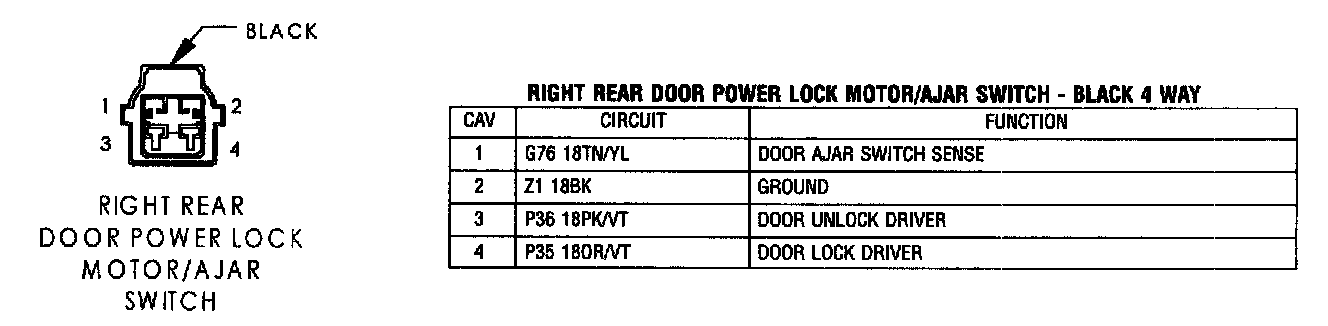

Right Rear Door Power Lock Motor/Ajar Switch:
