Fuse Block

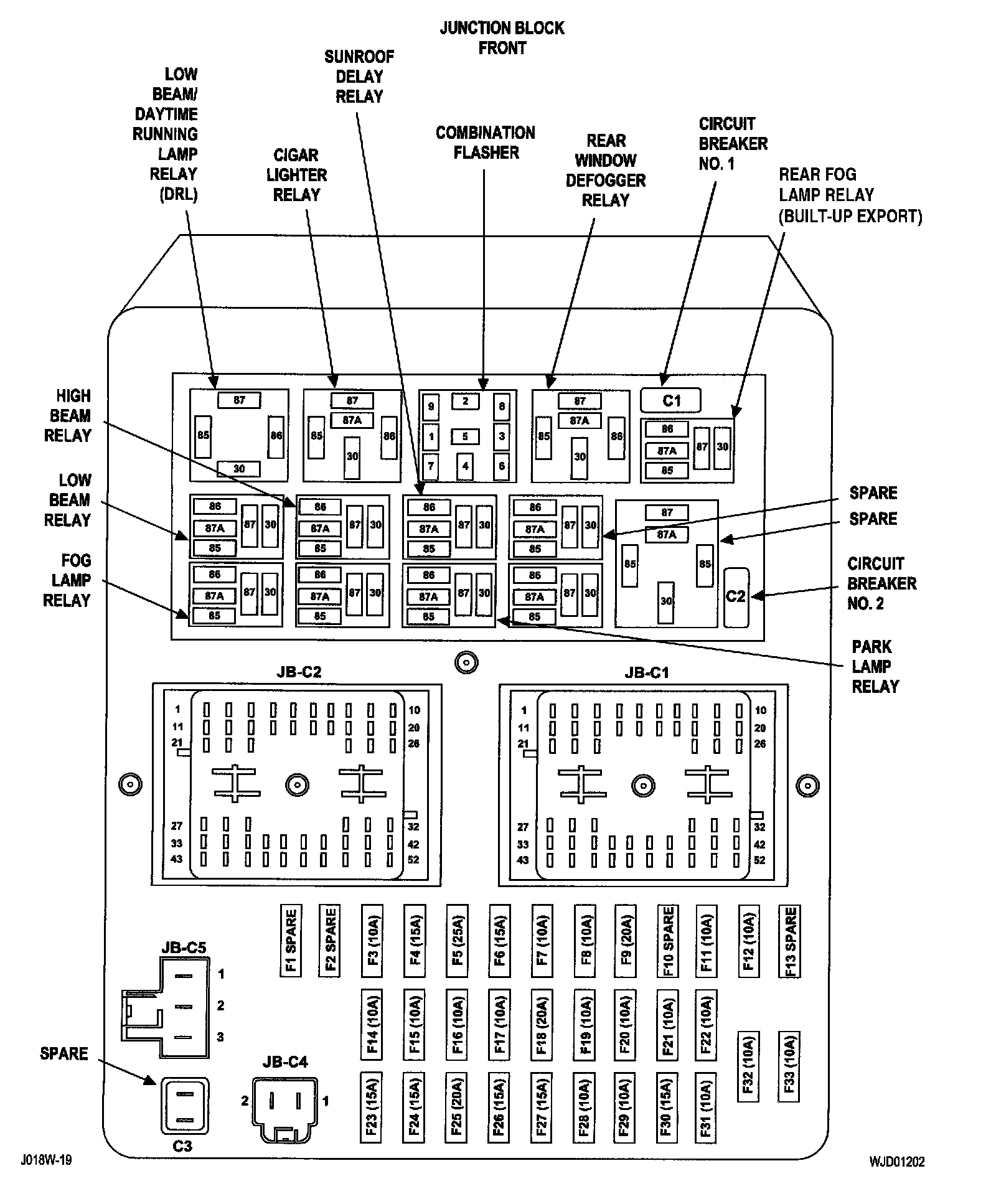

Junction Block (Front):

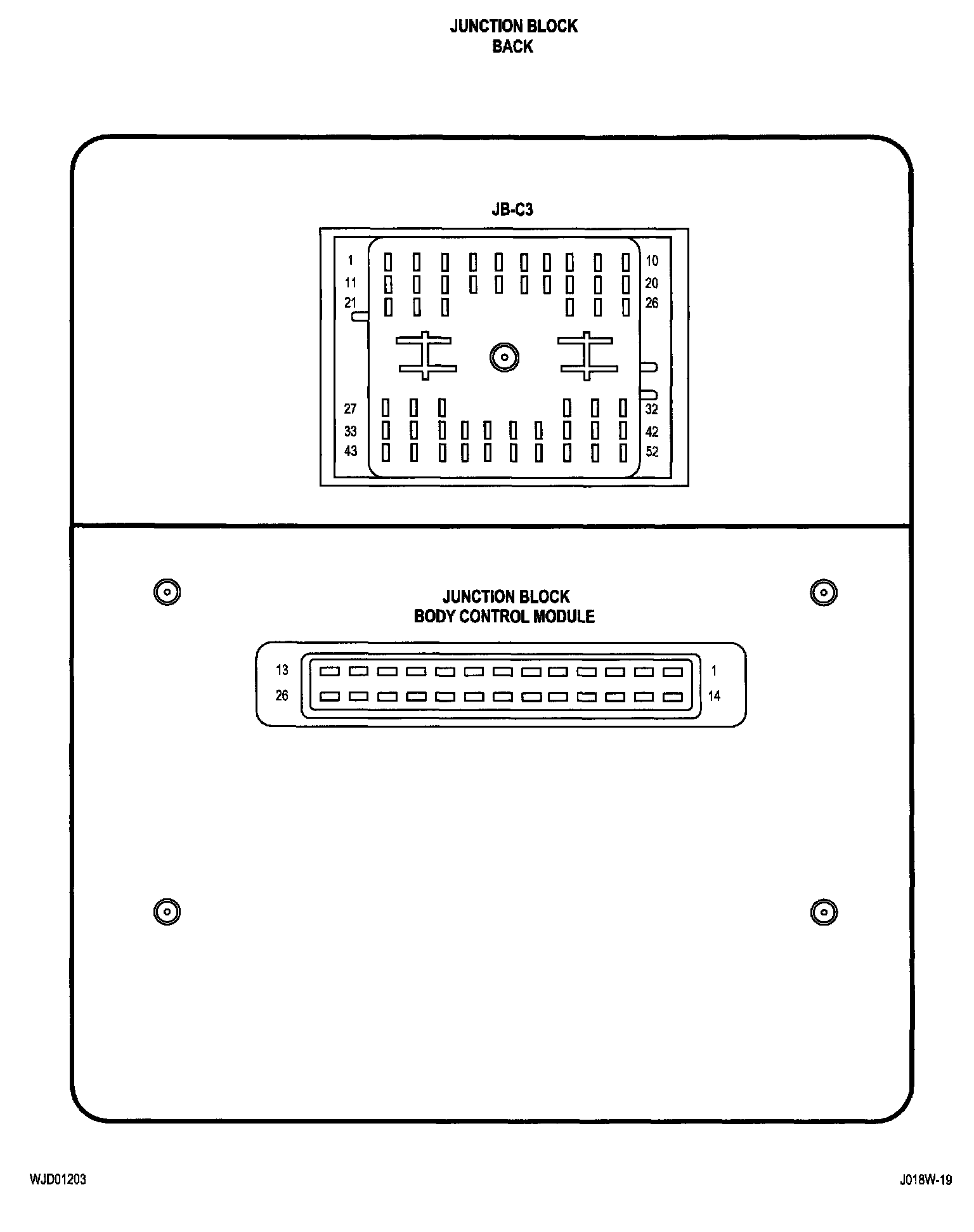

Junction Block (Back):

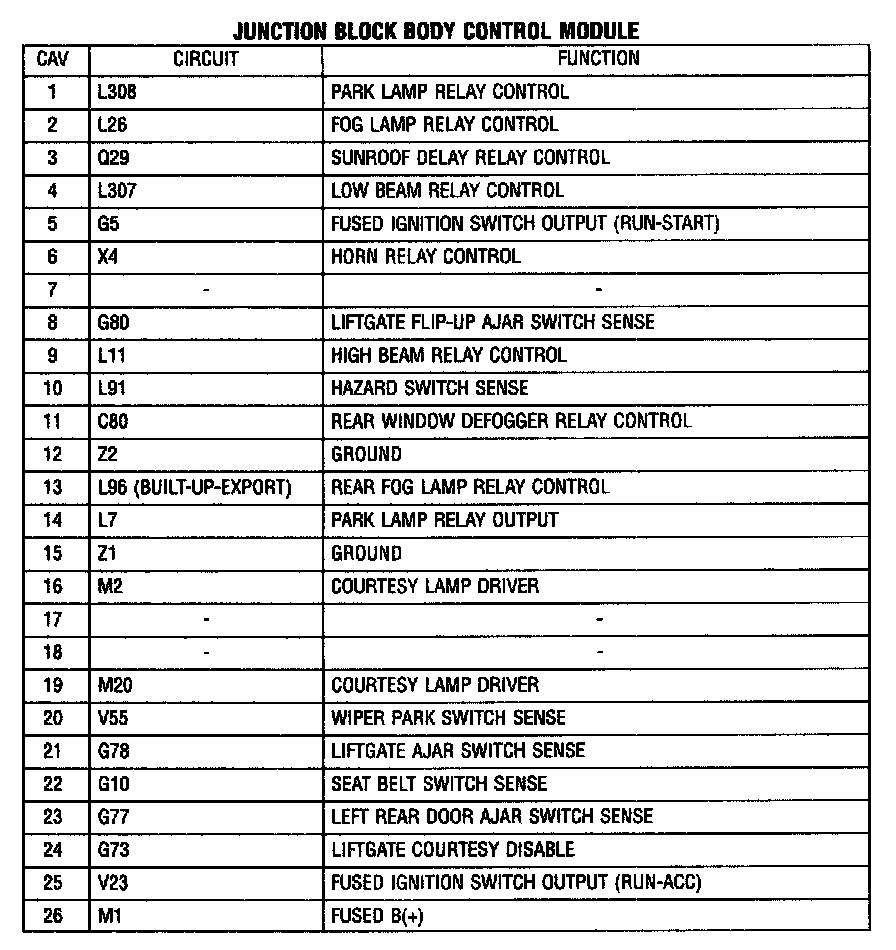

Junction Block Body Control Module:

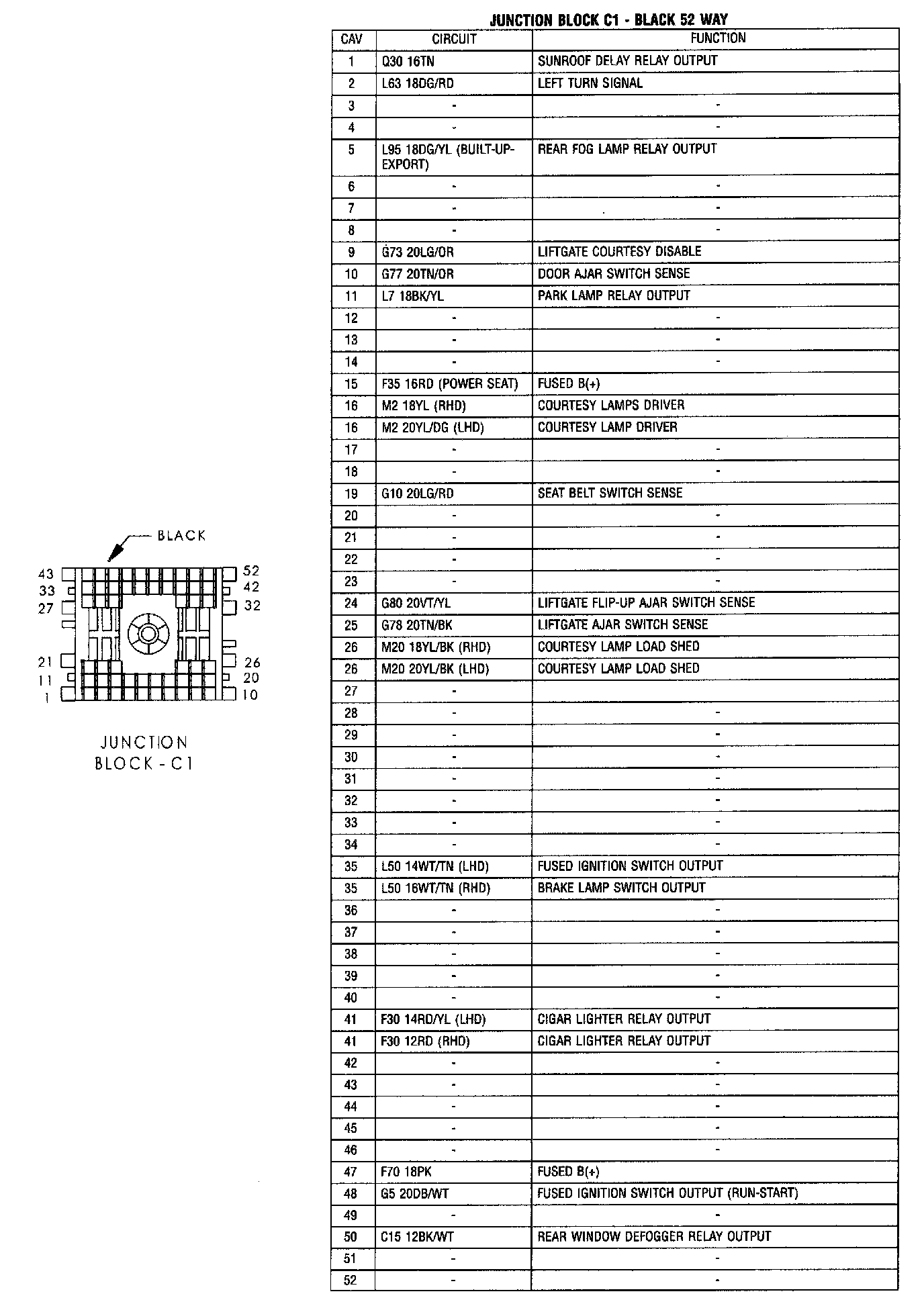

Junction Block C1:

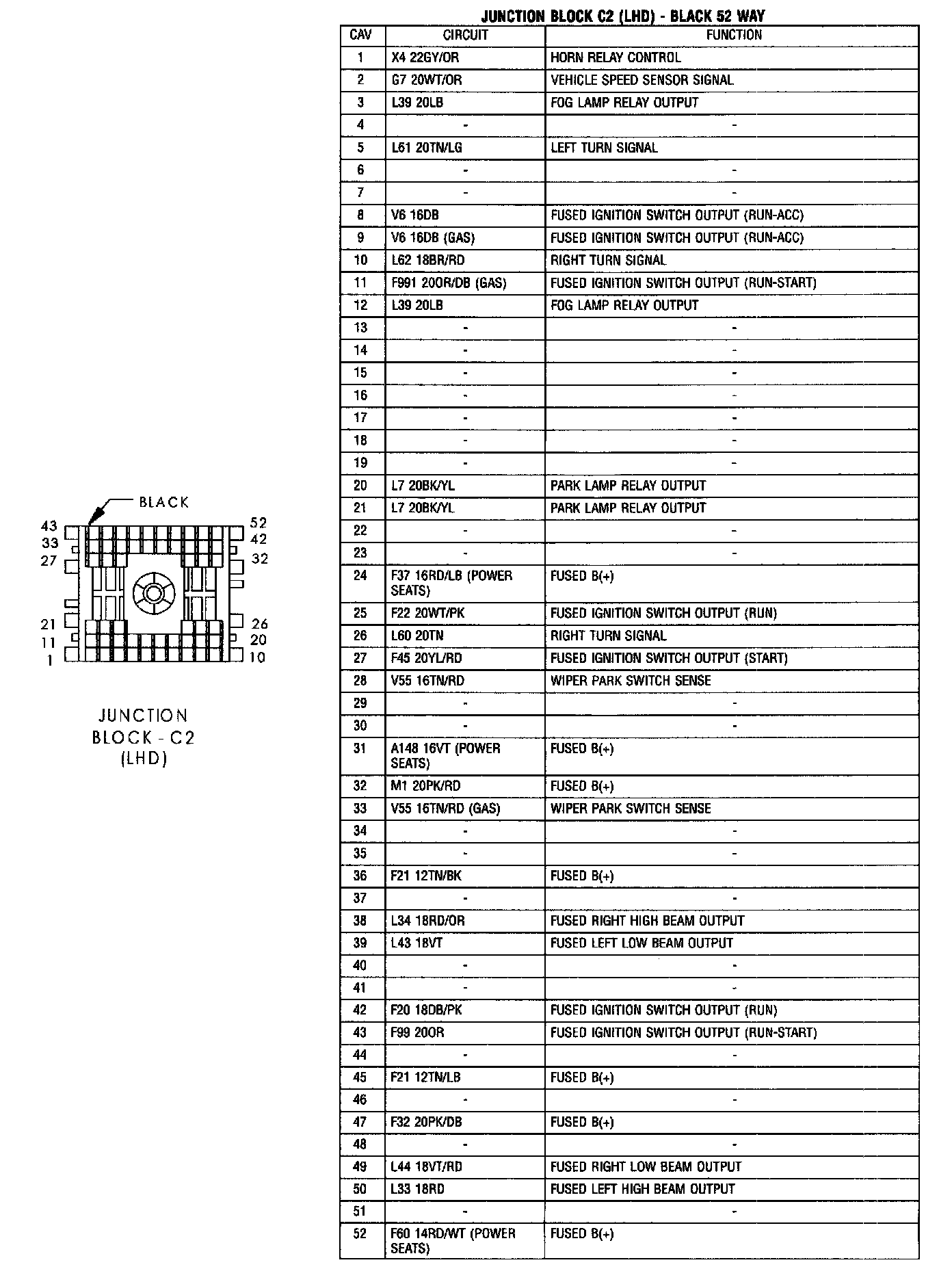

Junction Block C2 (LHD):

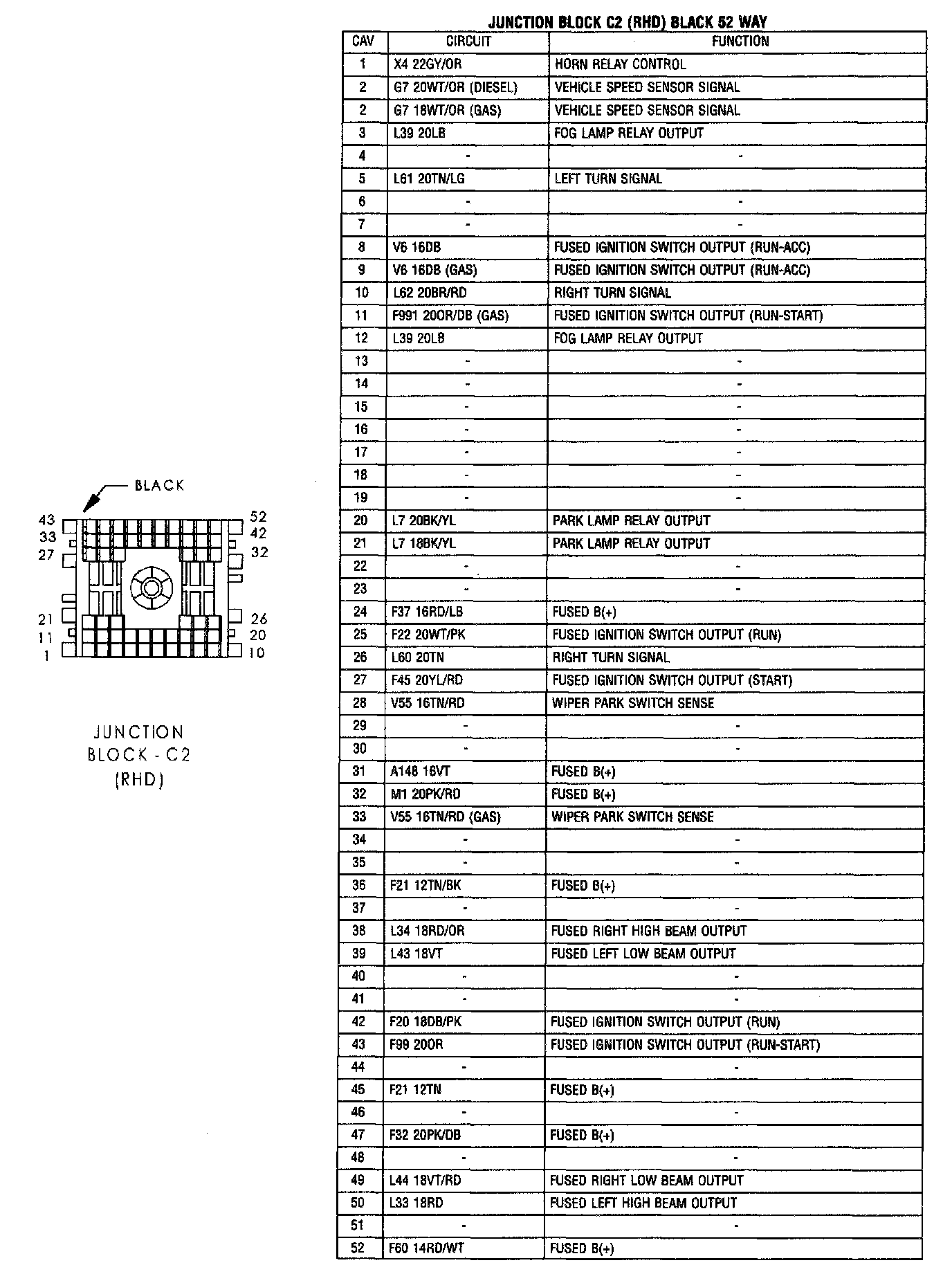

Junction Block C2 (RHD):

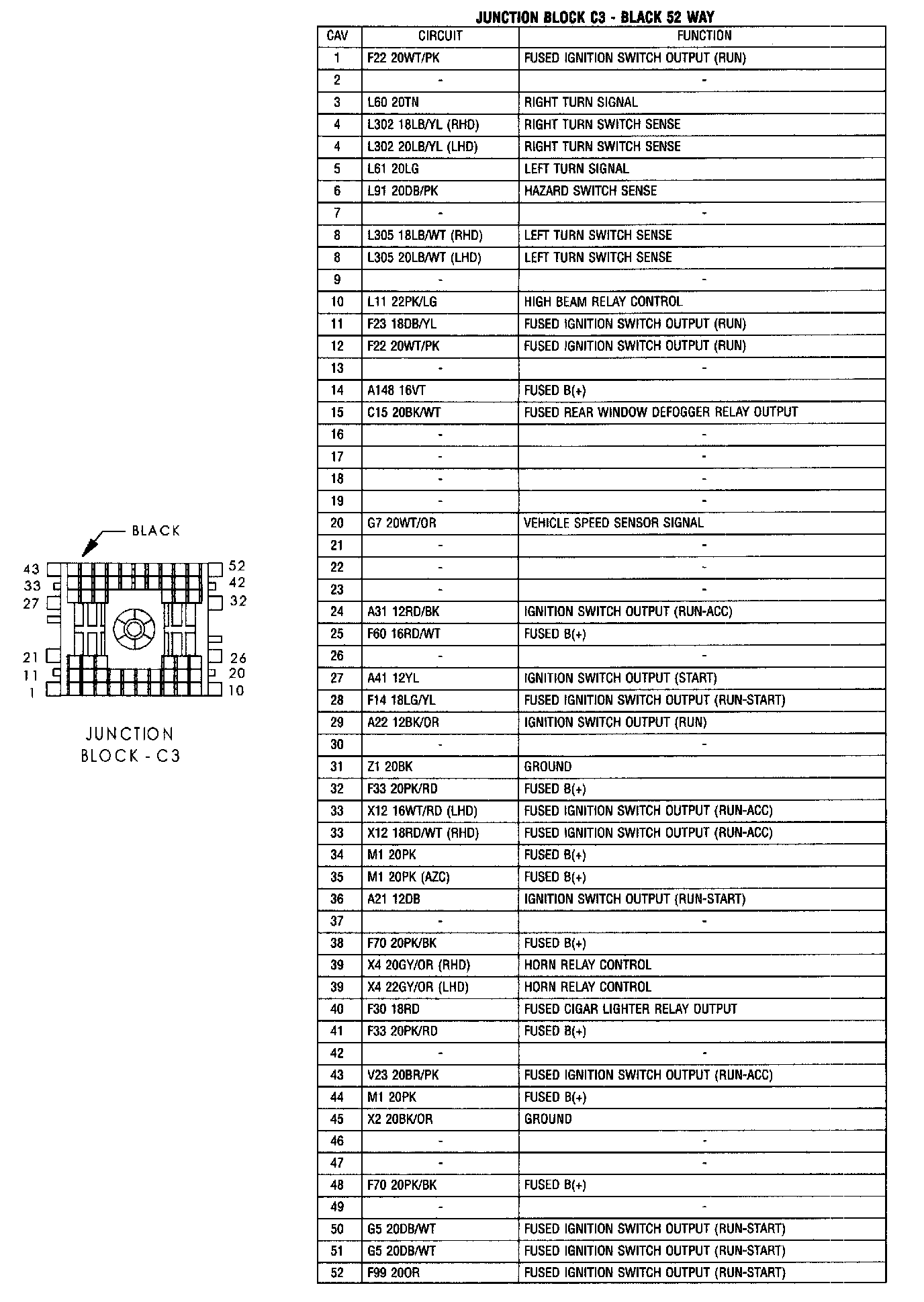

Junction Block C3:

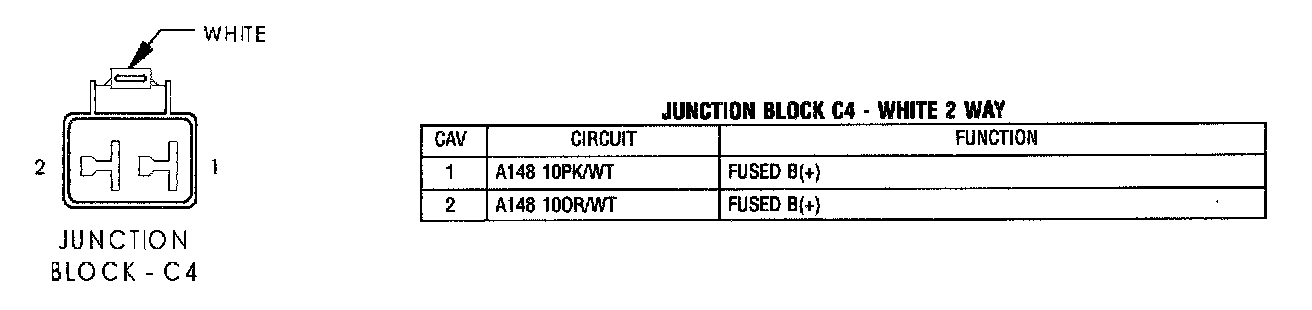

Junction Block C4:

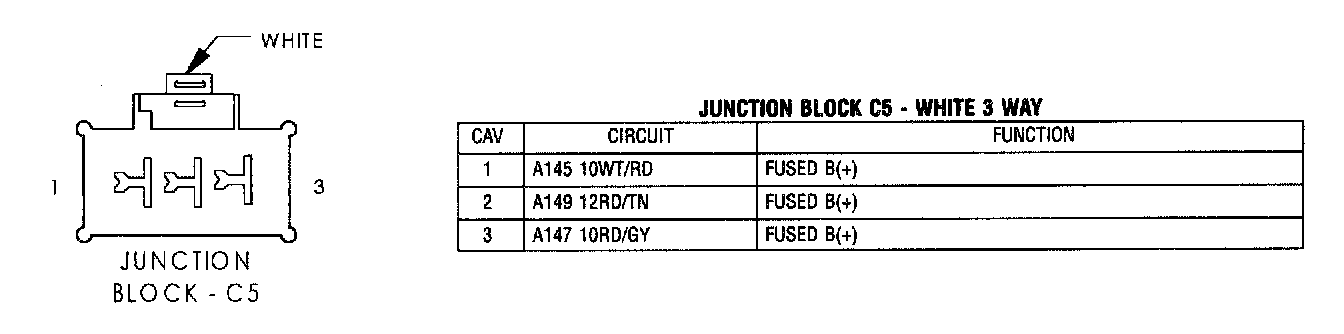

Junction Block C5:
