Wheel Speed Sensor

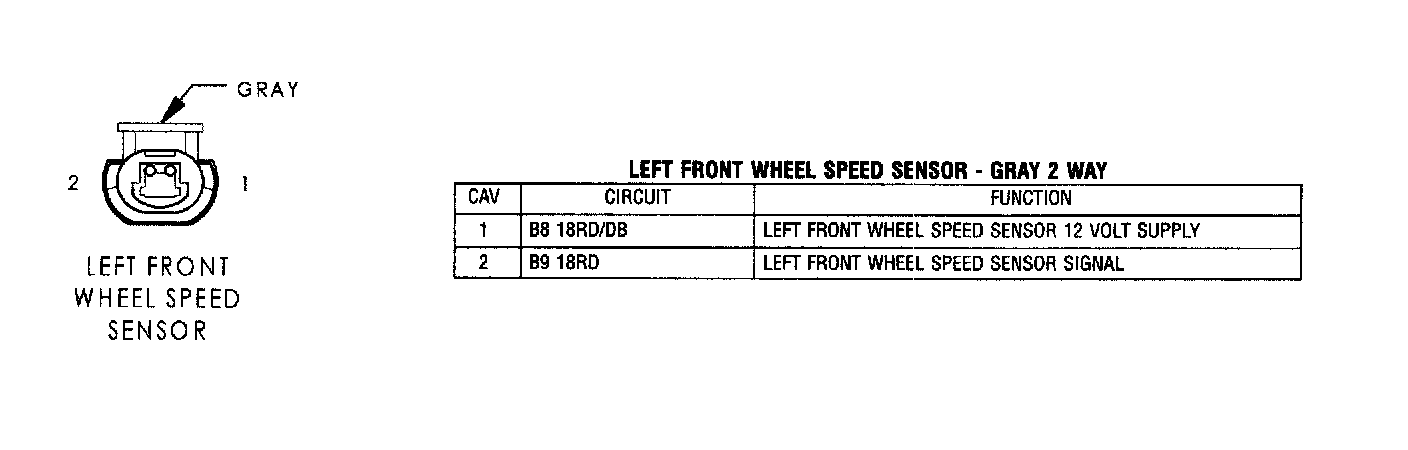

Left Front Wheel Speed Sensor





Left Rear Wheel Speed Sensor





Right Front Wheel Speed Sensor

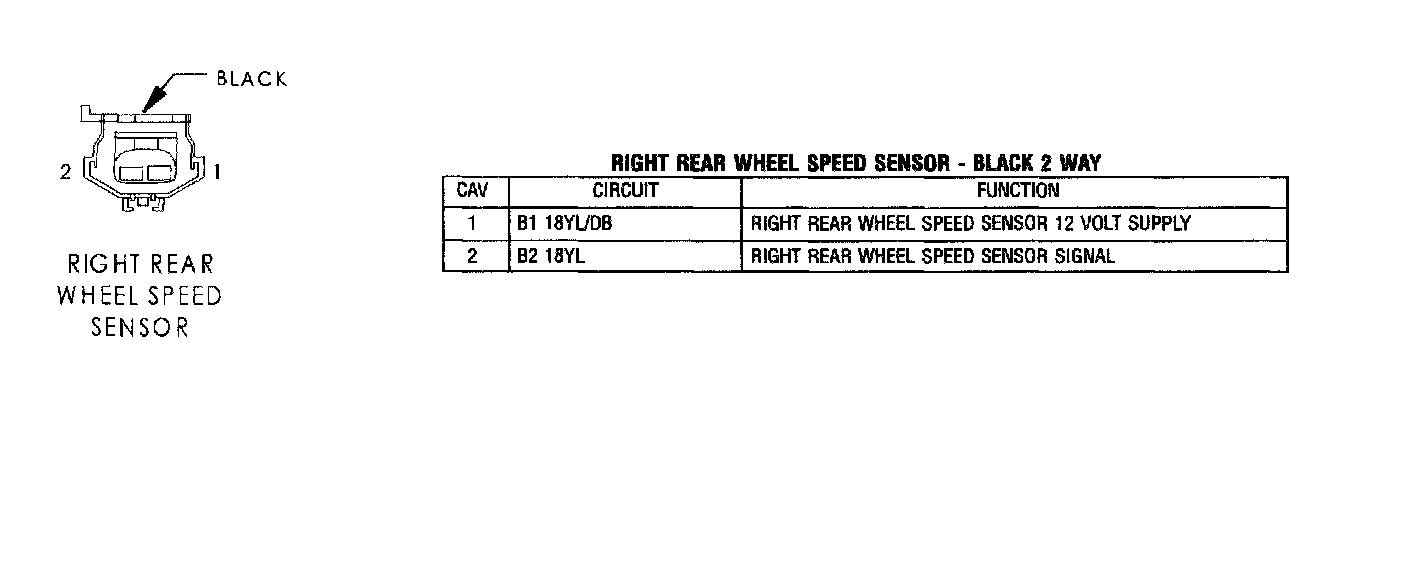

Right Rear Wheel Speed Sensor
