Crankshaft Position Sensor: Locations

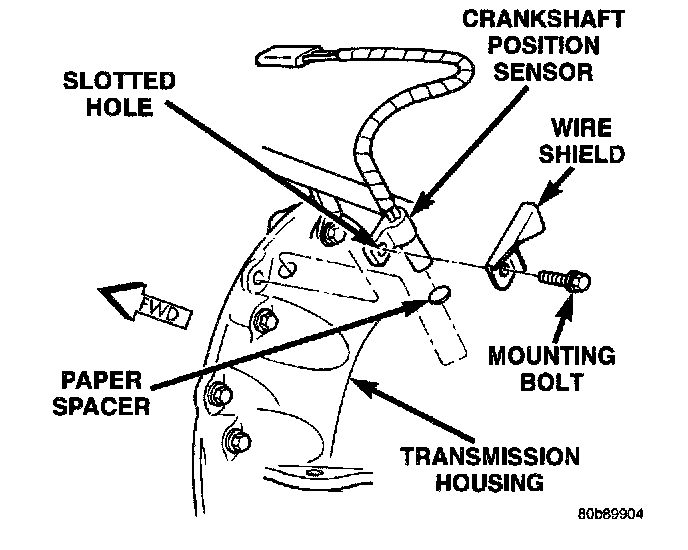

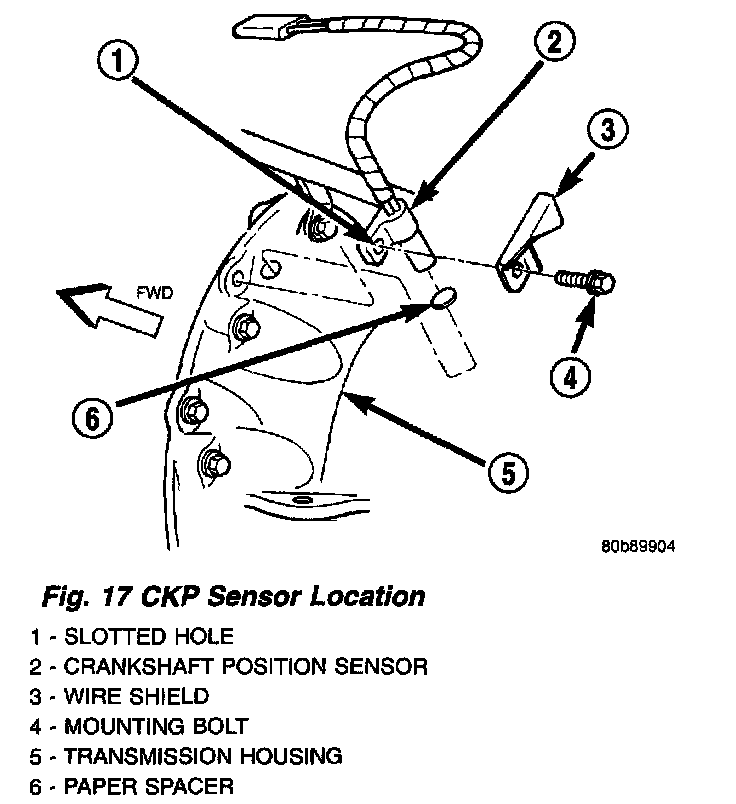

Fig.17 CKP Sensor Location:
The Crankshaft Position Sensor
(CKP)
is mounted to the transmission bellhousing at the left"rear side of the engine block.
