Fuel Level Sensor: Locations

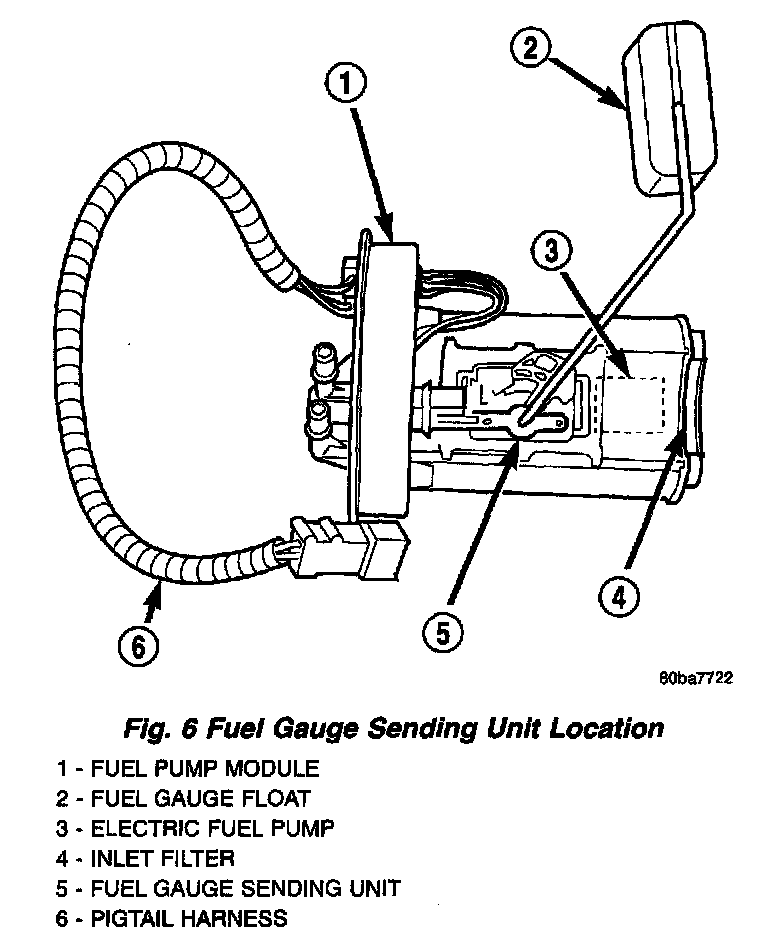

Fig.6 Fuel Gauge Sending Unit Location:




The fuel gauge sending unit (fuel level sensor) is attached to the side of the fuel pump module.
