Main Relay (Computer/Fuel System): Diagrams

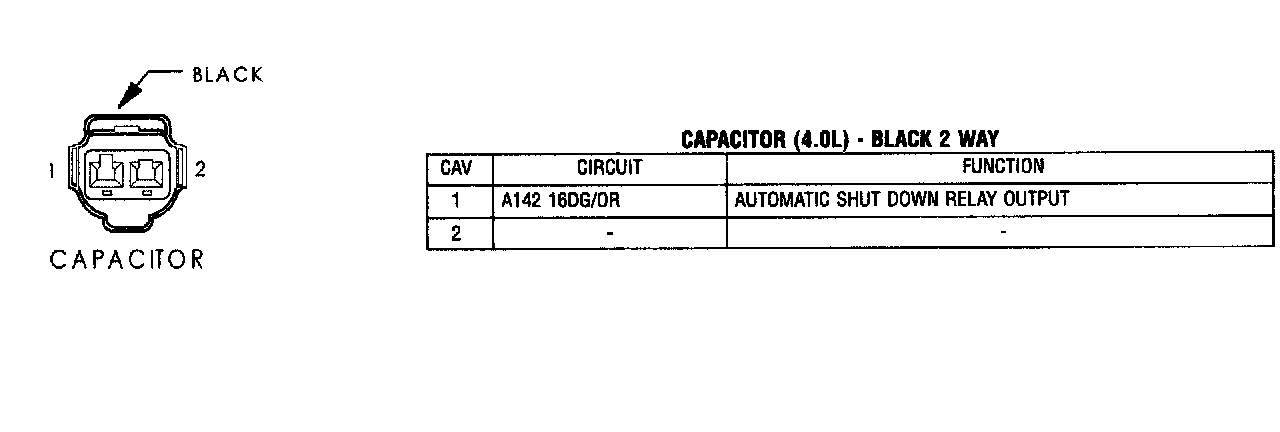

Capacitor:

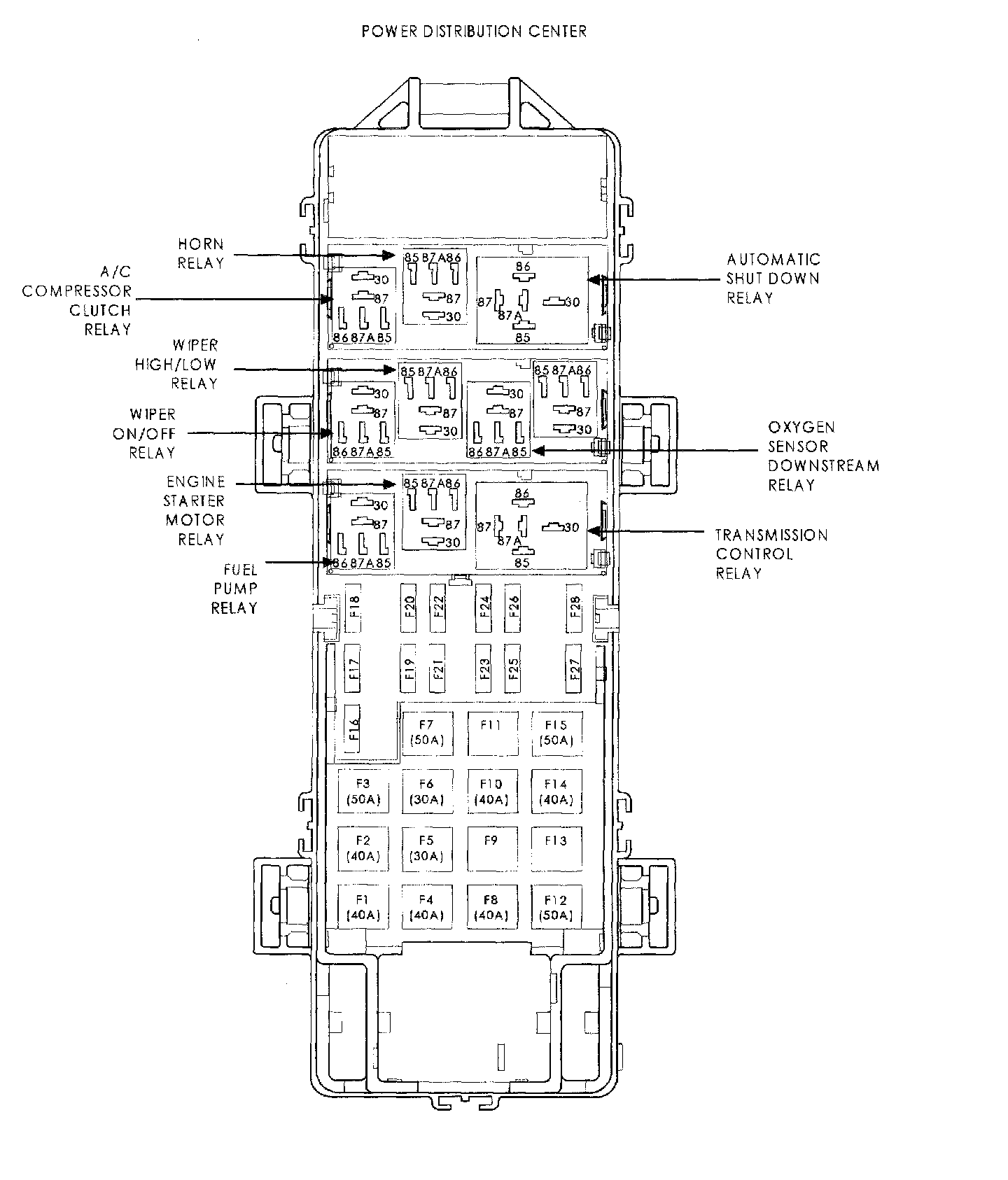

Power Distribution Center:

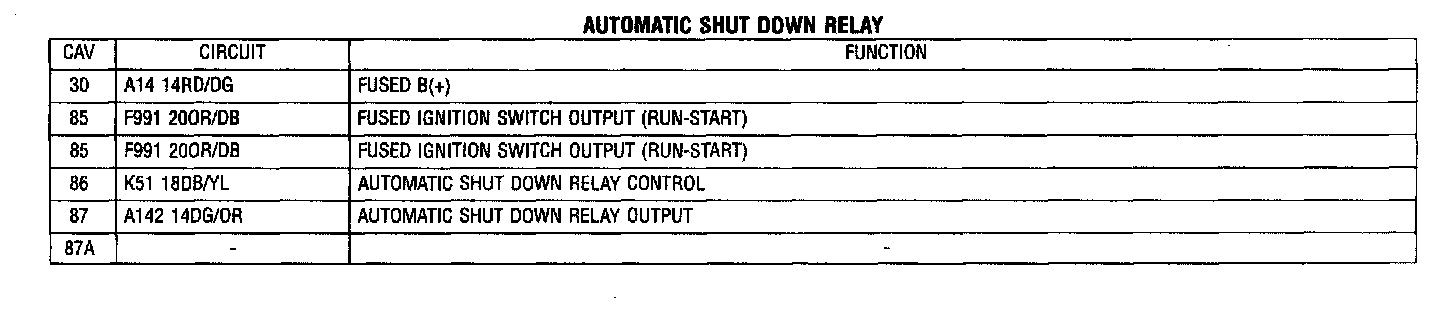

Automatic Shut Down Relay:
