Grand Cherokee 2WD V8-4.7L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
Door Module

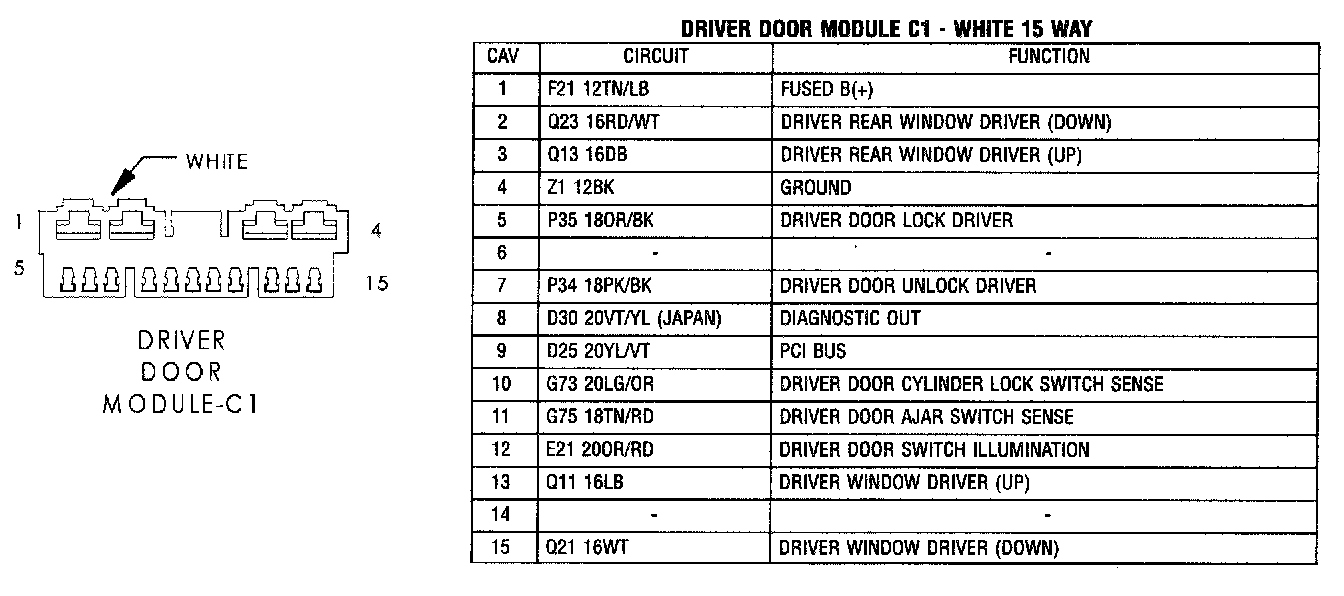

Driver Door Module C1:

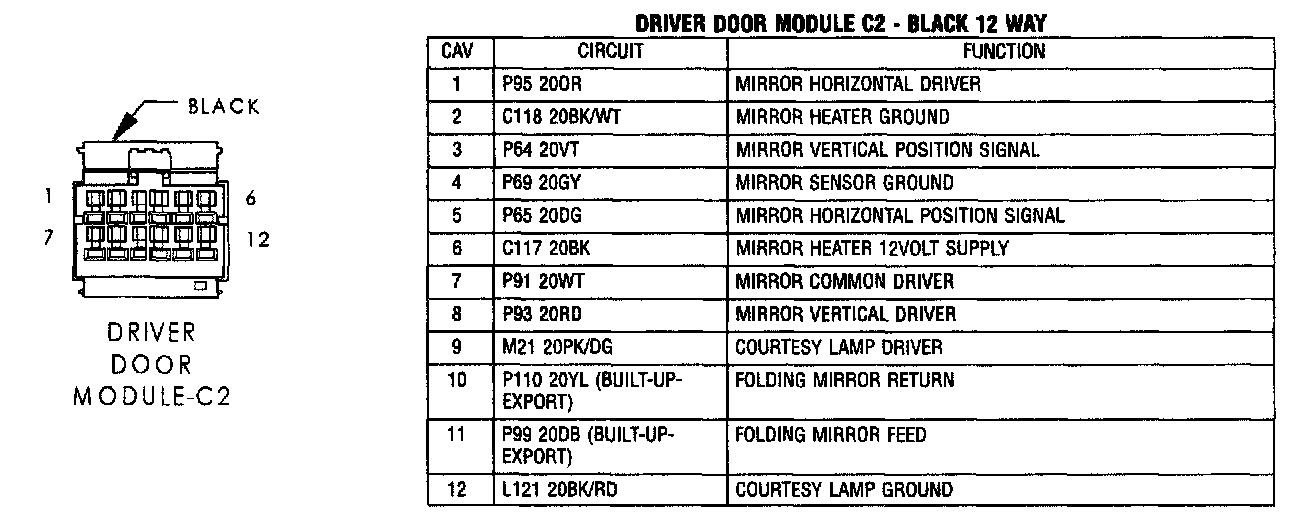

Driver Door Module C2:

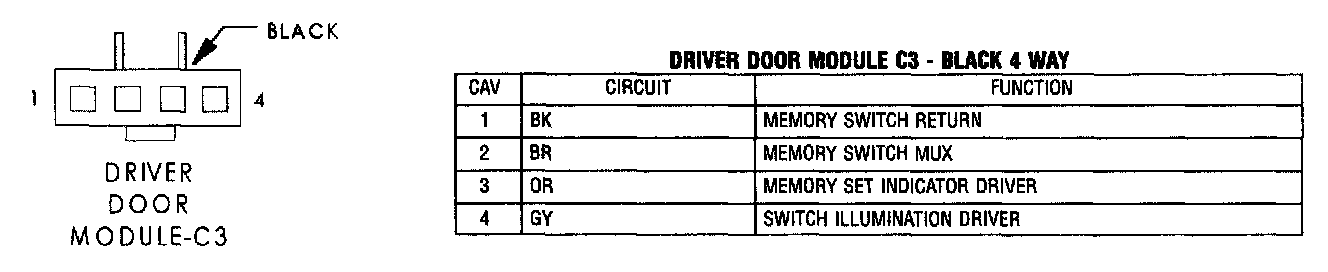

Driver Door Module C3:

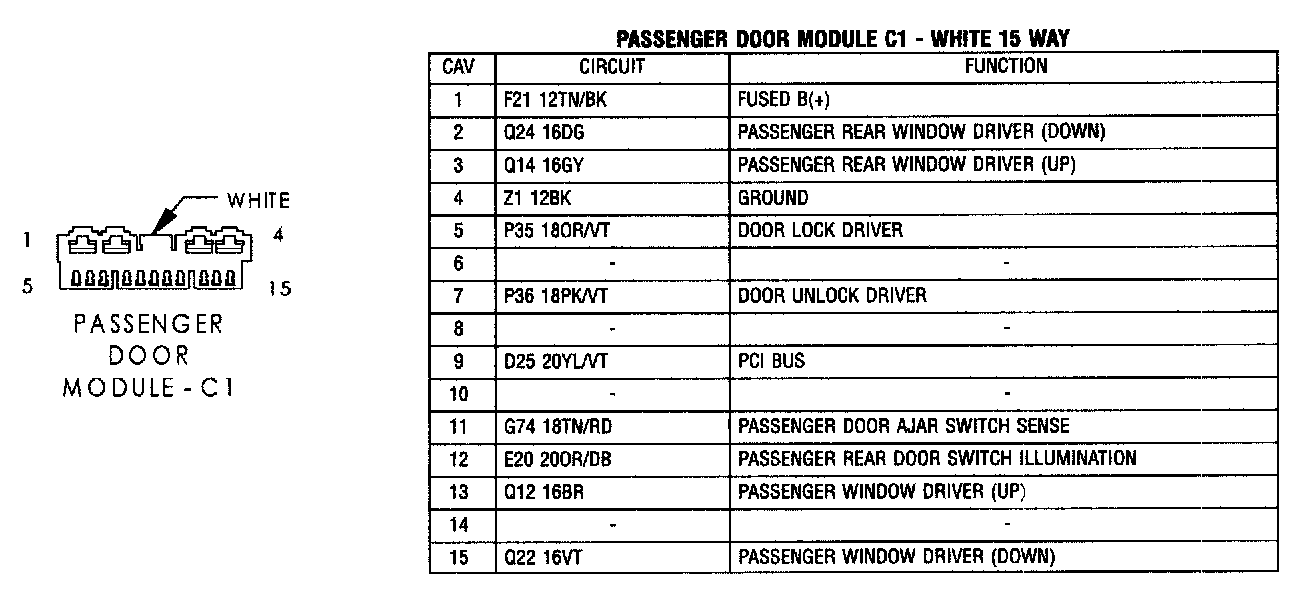

Passenger Door Module C1:

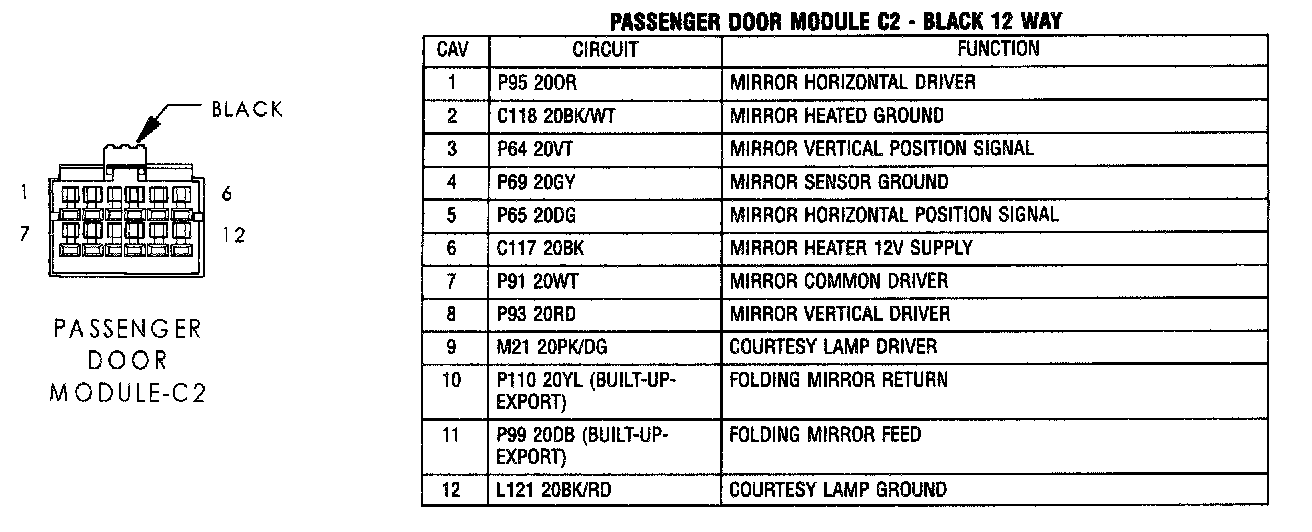

Passenger Door Module C2:
