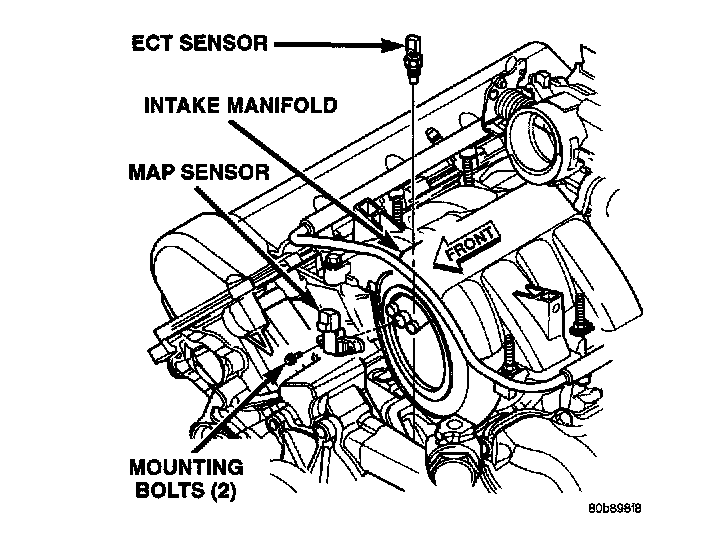

Coolant Temperature Sensor/Switch (For Computer): Locations

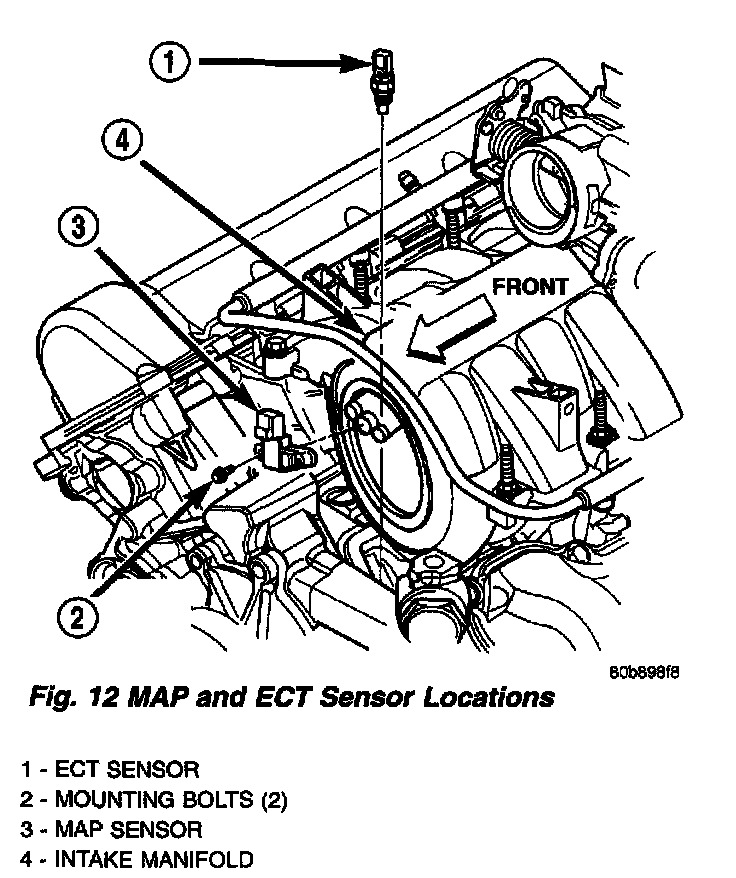

Fig.12 MAP And ECT Sensor Locations:

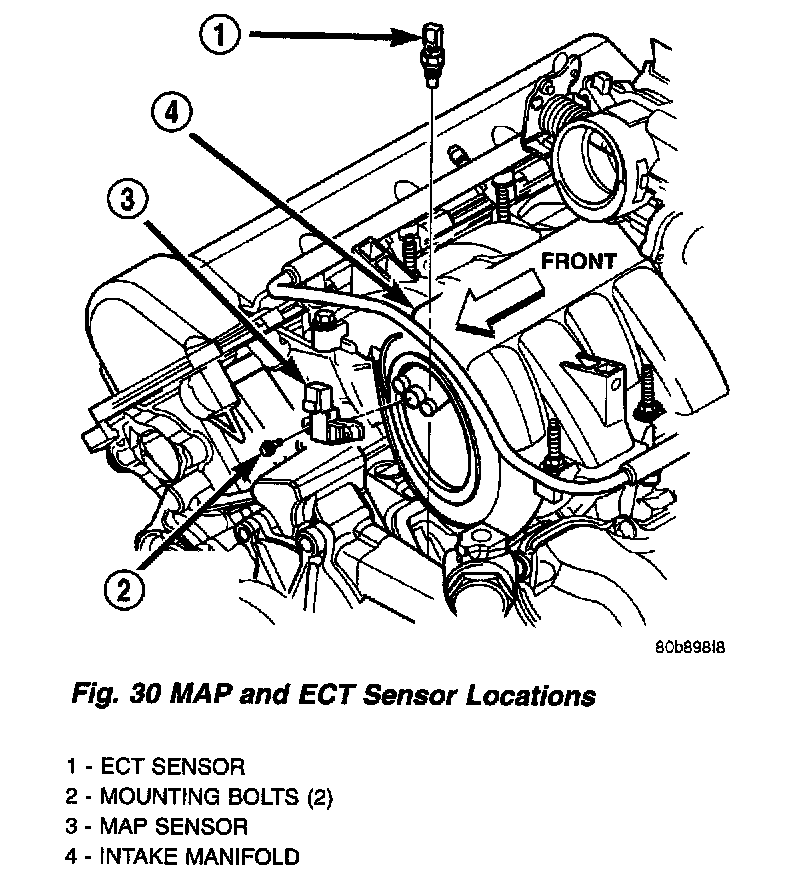

Fig.30 MAP And ECT Sensor Locations:
