Tail Lamp: Service and Repair

REMOVAL
The brake, turn signal, back-up, and side marker lamps are incorporated in the tail lamp.

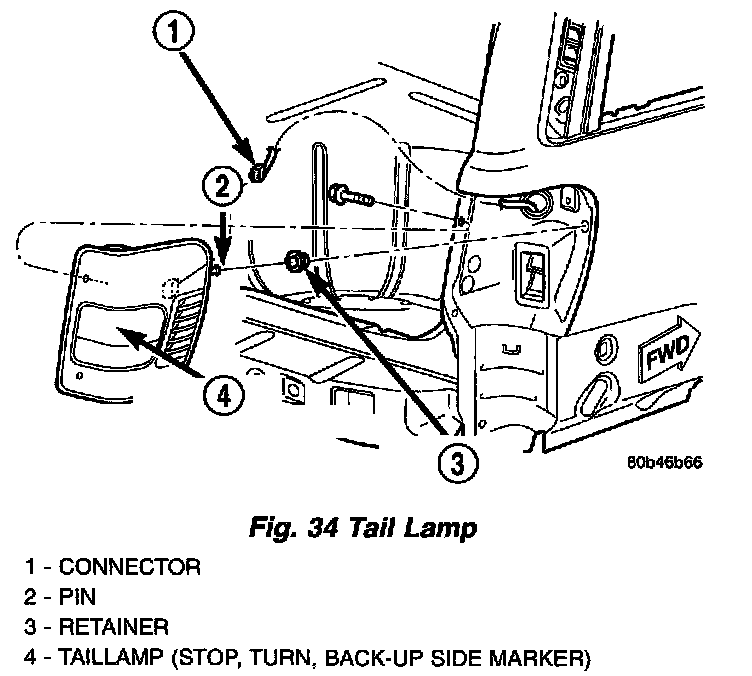

Fig.34 Tail Lamp:

1. Remove screws attaching lamp to body (Fig.34).
2. Grasp lamp and pull from body to disengage alignment pin.
3. Disconnect lamp wire harness connector.
4. Separate lamp from vehicle.

INSTALLATION
The brake, turn signal, back-up, and side marker lamps are incorporated in the tail lamp.
1. Position lamp at vehicle.
2. Connect lamp wire harness connector.
3. Align pin with retainer and press lamp inward to engage.
4. Install screws attaching lamp to body.
